SoundFrame 3 On-Wall
Product Ref: SSF3B
The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 3 On-Wall is the most compact speaker of the three and it can be used on its own, as a rear to complement the SoundFrame 1 On-Wall and SoundFrame 2 On-Wall, or with a sub-woofer.
Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.

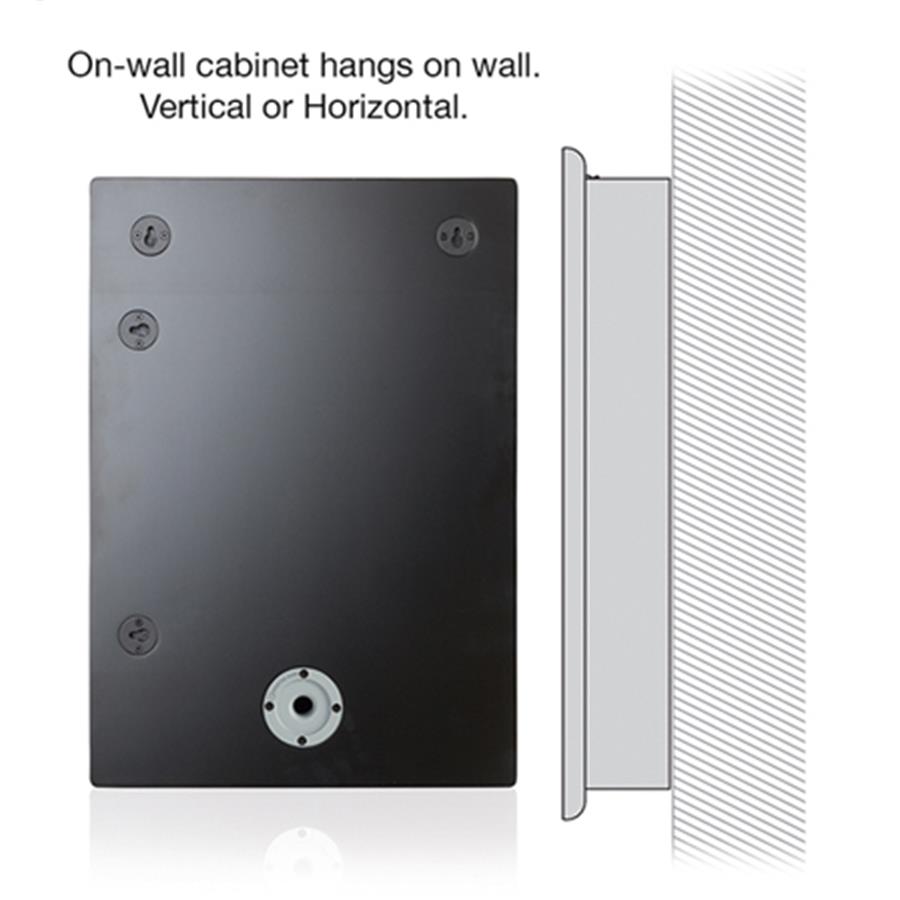

The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.
The SoundFrame 3 On-Wall has a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inch C-CAM driver.
Select Option
Technical Specifications
Frequency Response
75 Hz — 35 kHz
Sensitivity (1W@1M)
86 dB
System Configuration
2-Way
Drive Unit Complement
1 x 4" C-CAM mid-range driver
1 x 1" pivoting Gold Dome tweeter
Power Handling (RMS)
50 W
Maximum SPL
102.5 dBA
Recommended Amplifier Requirements
25 — 50 W
Bass Alignment
Ported Box
Nominal Impedance
8 ohms
Crossover Frequency
3.2 kHz
Dimensions (Including Frame (H x W x D))
289 x 289 x 77.5 mm (113/8 x 113/8 x 3")
Depth From Wall
77.5 mm (3")
Weight (packaged)
2.76 kg (6 lbs)
Sold As
Single Unit
Product Features
- Quick and easy installation.
- Slender 87 mm (3.5") cabinet depth.
- Choice of high gloss white or black lacquer frames.
- SoundFrame 3: 2-way configuration: a pivoting 1 inch tweeter module with a 4-inch C-CAM driver.
- High frequency attenuation +- 3 dB.
- Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
