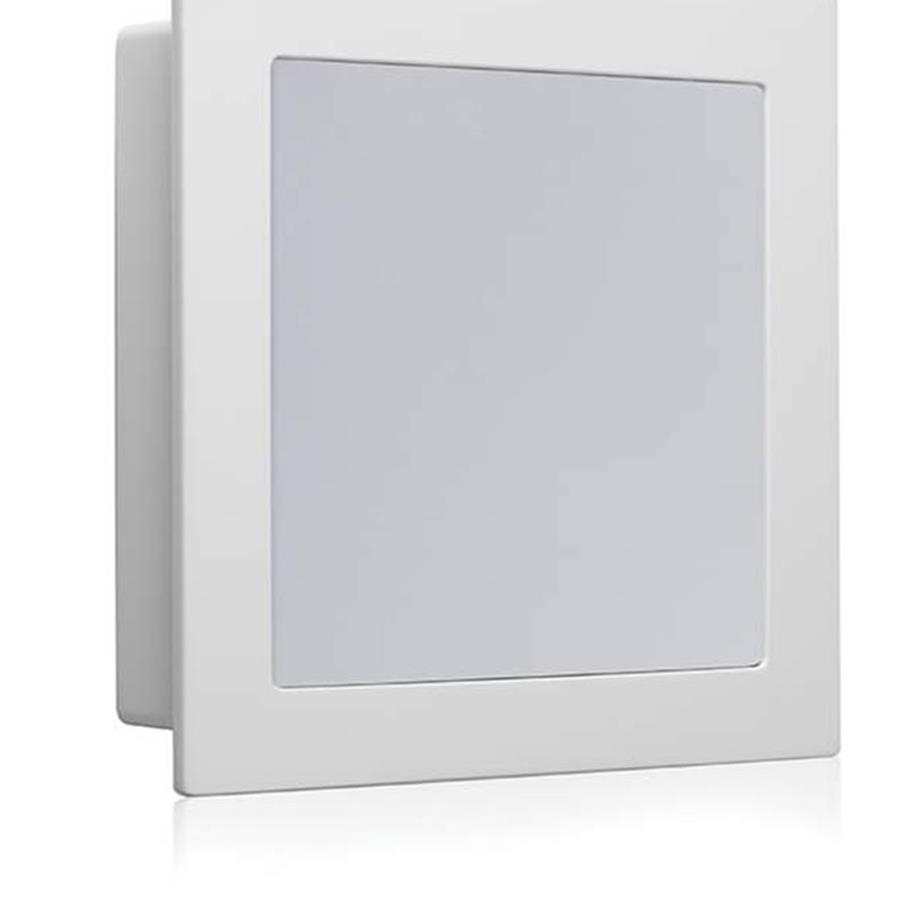

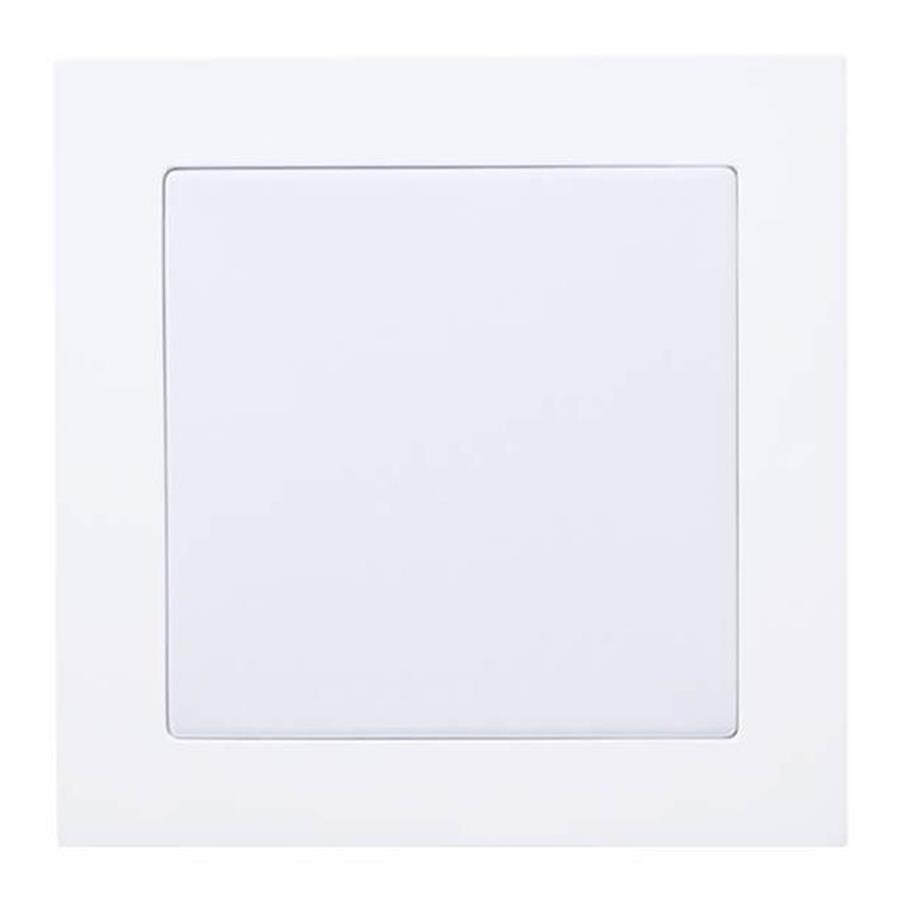

SoundFrame 3 On-Wall White
Product Ref: SSF3W
MPN: SSF3W
Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.

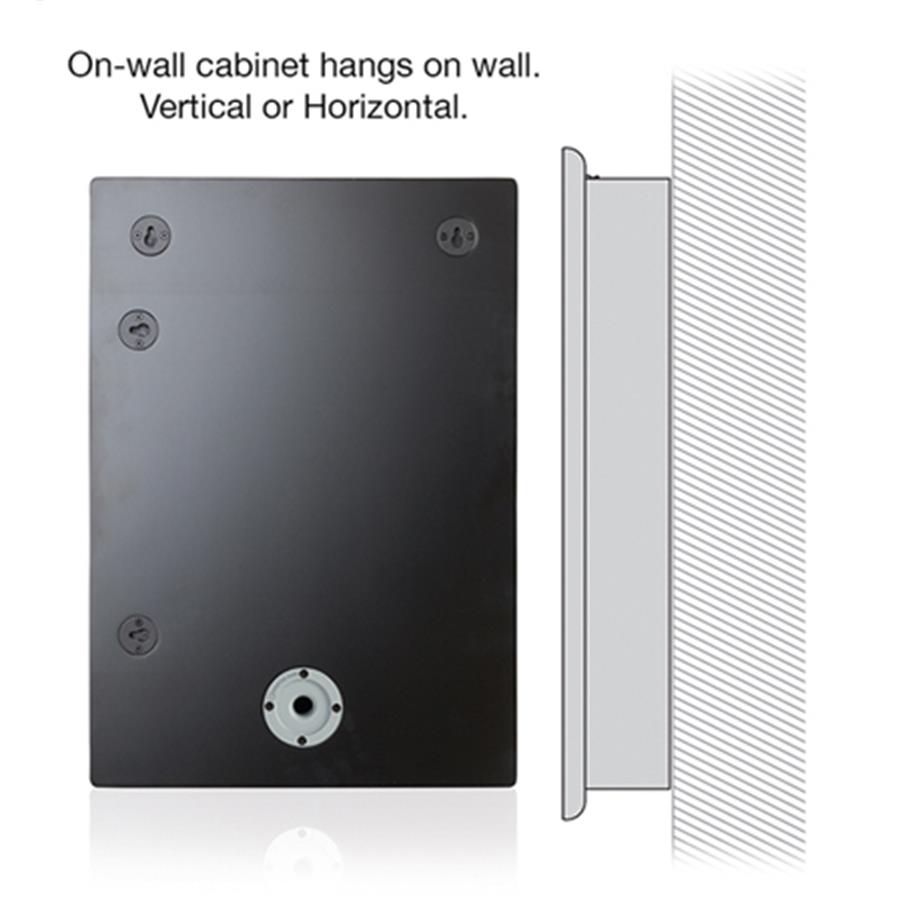

The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.
The SoundFrame 3 On-Wall has a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inch C-CAM driver.
Select Option
Technical Specifications
Frequency Response
75 Hz — 35 kHz
Sensitivity (1W@1M)
86 dB
System Configuration
2-Way
Drive Unit Complement
1 x 4" C-CAM mid-range driver
1 x 1" pivoting Gold Dome tweeter
Power Handling (RMS)
50 W
Maximum SPL
102.5 dBA
Recommended Amplifier Requirements
25 — 50 W
Bass Alignment
Ported Box
Nominal Impedance
8 ohms
Crossover Frequency
3.2 kHz
Dimensions (Including Frame (H x W x D))
289 x 289 x 77.5 mm (113/8 x 113/8 x 3")
Depth From Wall
77.5 mm (3")
Weight (packaged)
2.76 kg (6 lbs)
Sold As
Single Unit
