SoundFrame 2 In-Wall

Product Ref: SSF2BI

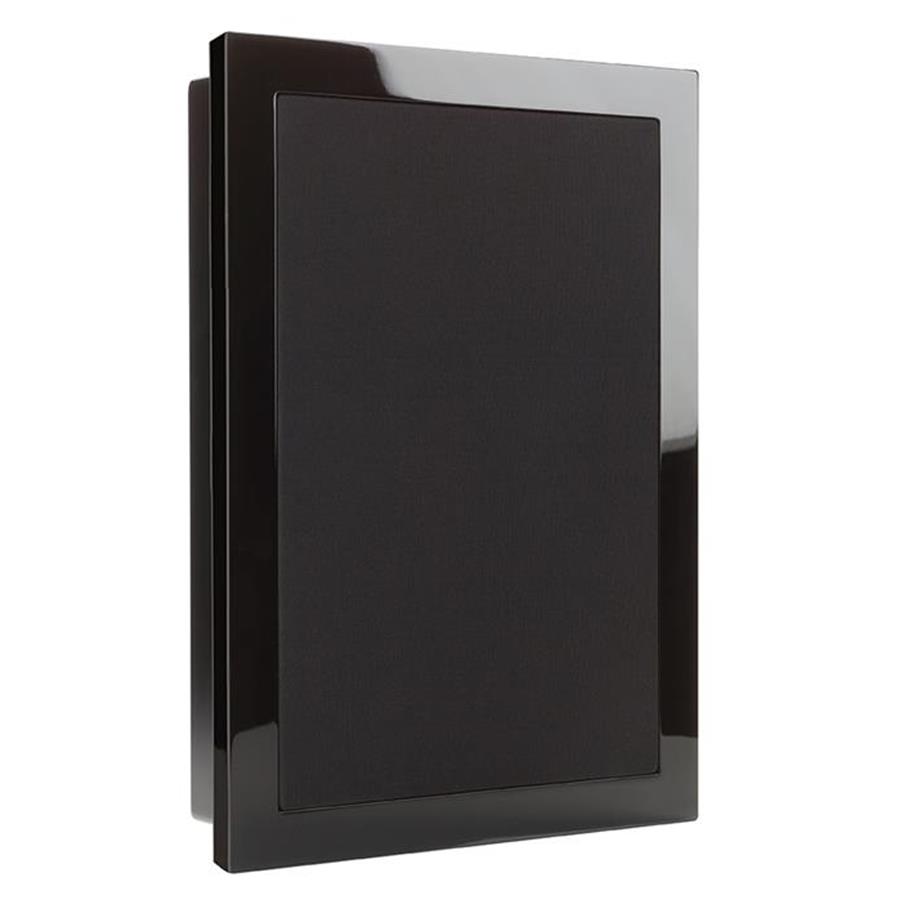

Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.

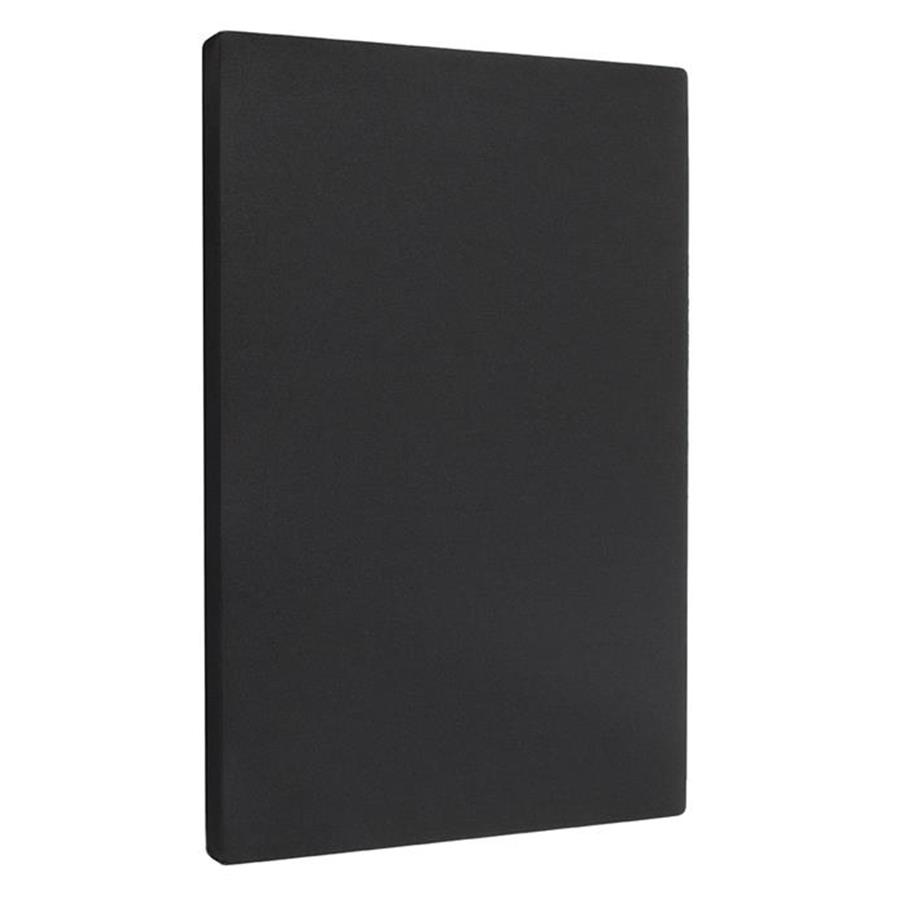

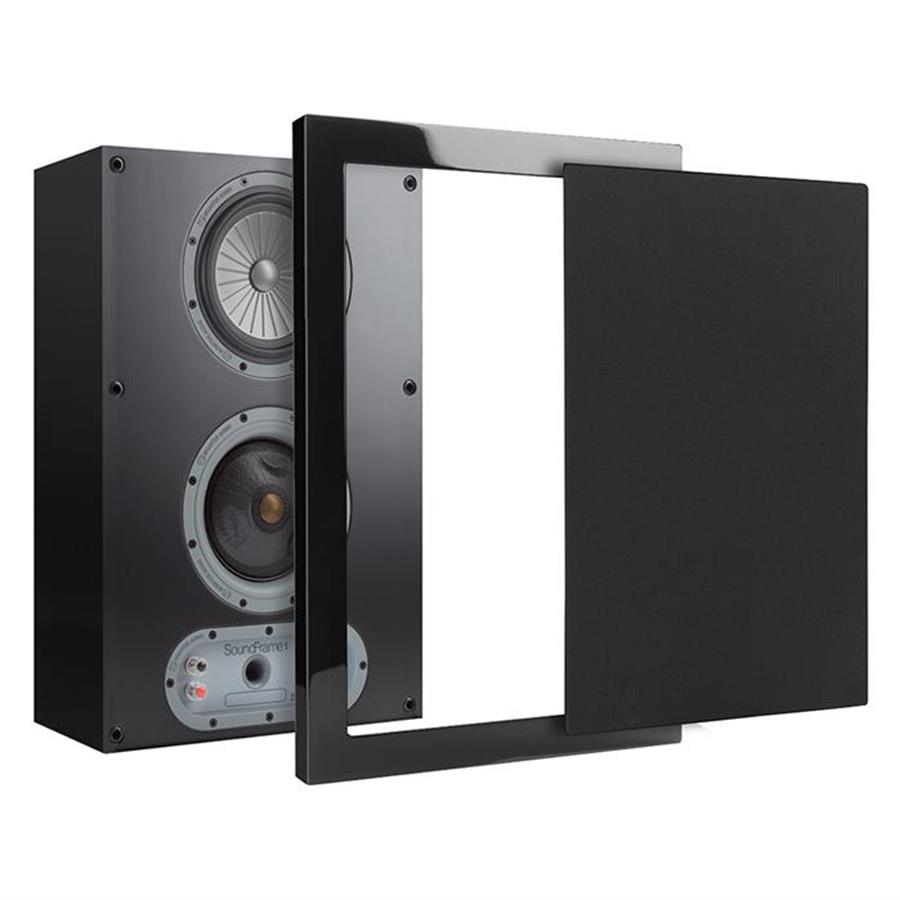

The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.

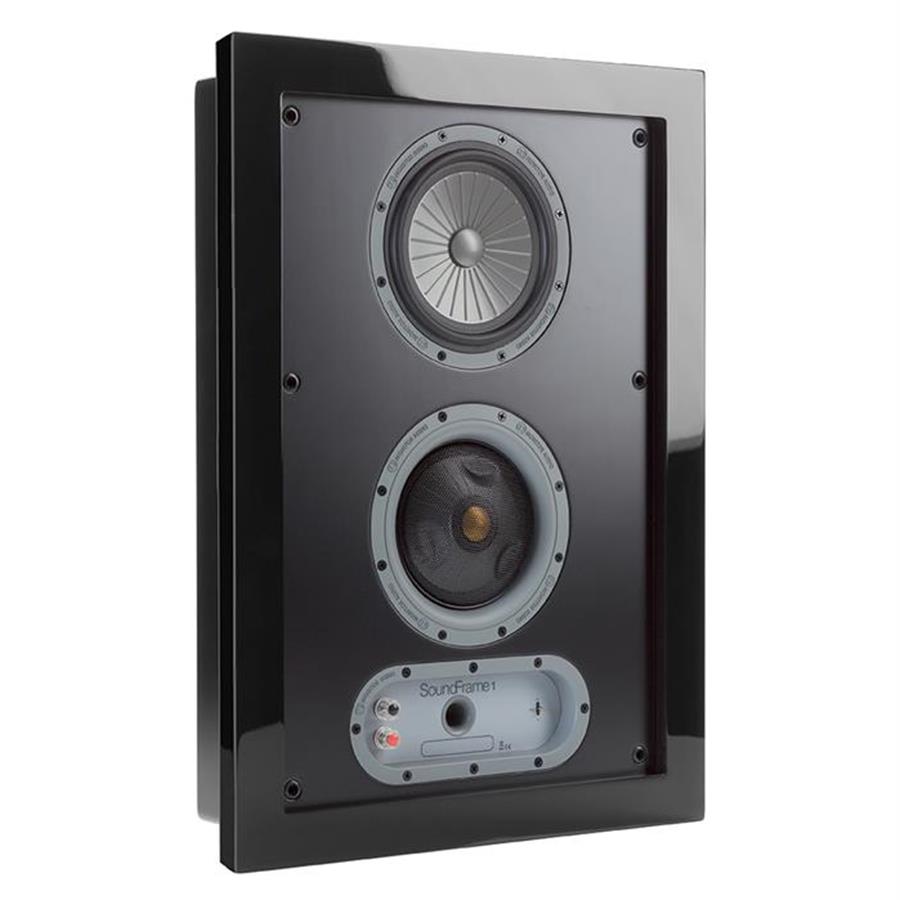

The SoundFrame 2 In-Wall utilises a true 3-way full-range driver configuration featuring a pivoting IDC 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM bass driver.

Technical Specifications

Frequency Response

55 Hz — 35 kHz

Sensitivity (1W@1M)

86 dB

Nominal Impedance

8 ohms

Power Handling (RMS)

100 W

Maximum SPL

106 dBA

Bass Alignment

Sealed Box

Crossover Frequency

550 Hz & 3.3 kHz

System Configuration

3-Way

Drive Unit Complement

1 x 165 mm (61/2 inches) C-CAM mid/bass driver with RST
1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter

Dimensions (Including Frame (H x W x D))

802.5 x 252.5 x 87.5 mm (315/8 x 915/16 x 37/16")

Cut-Out Dimensions

751 x 201 x 75 mm (291/2 x 77/8 x 215/16")

Weight (packaged)

7.26 kg (16 lbs)

Sold As

Single Unit
