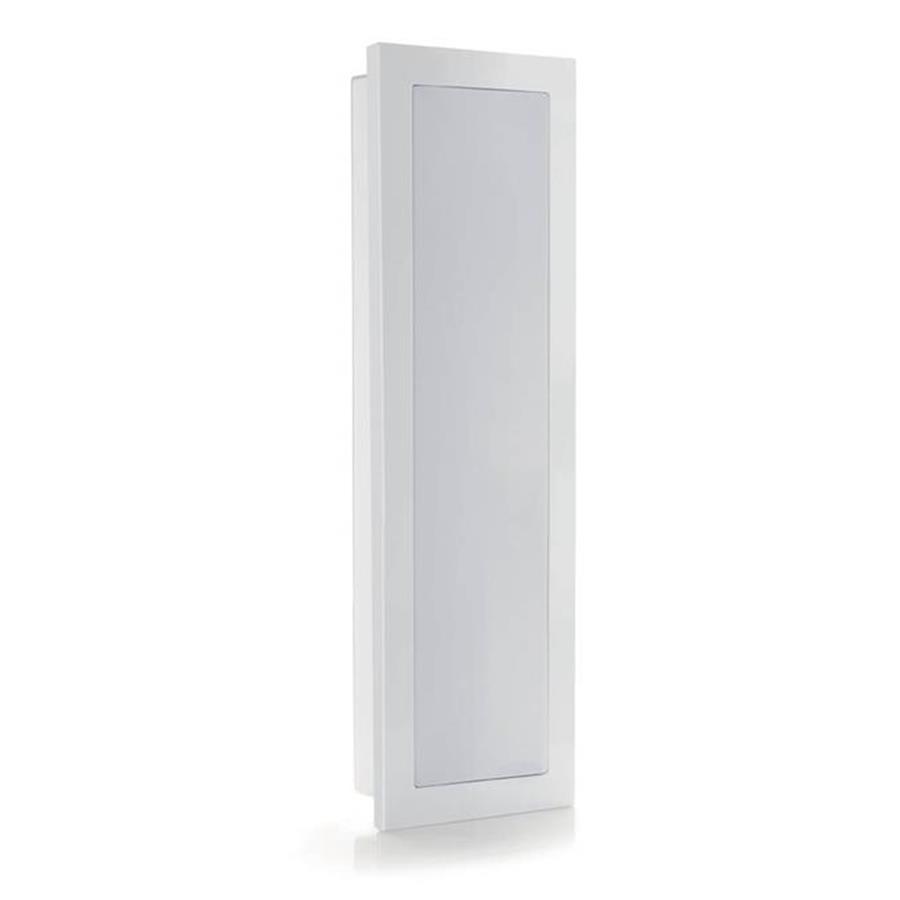

SoundFrame 2 In-Wall White

Product Ref: SSF2WI

MPN: SSF2WI

The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 2 In-Wall is a longer centre channel speaker designed for visual harmony with thin televisions or projection screens and can also be placed in a vertical position to match larger displays.

Select Option

    Technical Specifications

    Frequency Response

    55 Hz — 35 kHz

    Sensitivity (1W@1M)

    86 dB

    Nominal Impedance

    8 ohms

    Power Handling (RMS)

    100 W

    Maximum SPL

    106 dBA

    Bass Alignment

    Sealed Box

    Crossover Frequency

    550 Hz & 3.3 kHz

    System Configuration

    3-Way

    Drive Unit Complement

    1 x 165 mm (61/2 inches) C-CAM mid/bass driver with RST
    1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter

    Dimensions (Including Frame (H x W x D))

    802.5 x 252.5 x 87.5 mm (315/8 x 915/16 x 37/16")

    Cut-Out Dimensions

    751 x 201 x 75 mm (291/2 x 77/8 x 215/16")

    Weight (packaged)

    7.26 kg (16 lbs)

    Sold As

    Single Unit
