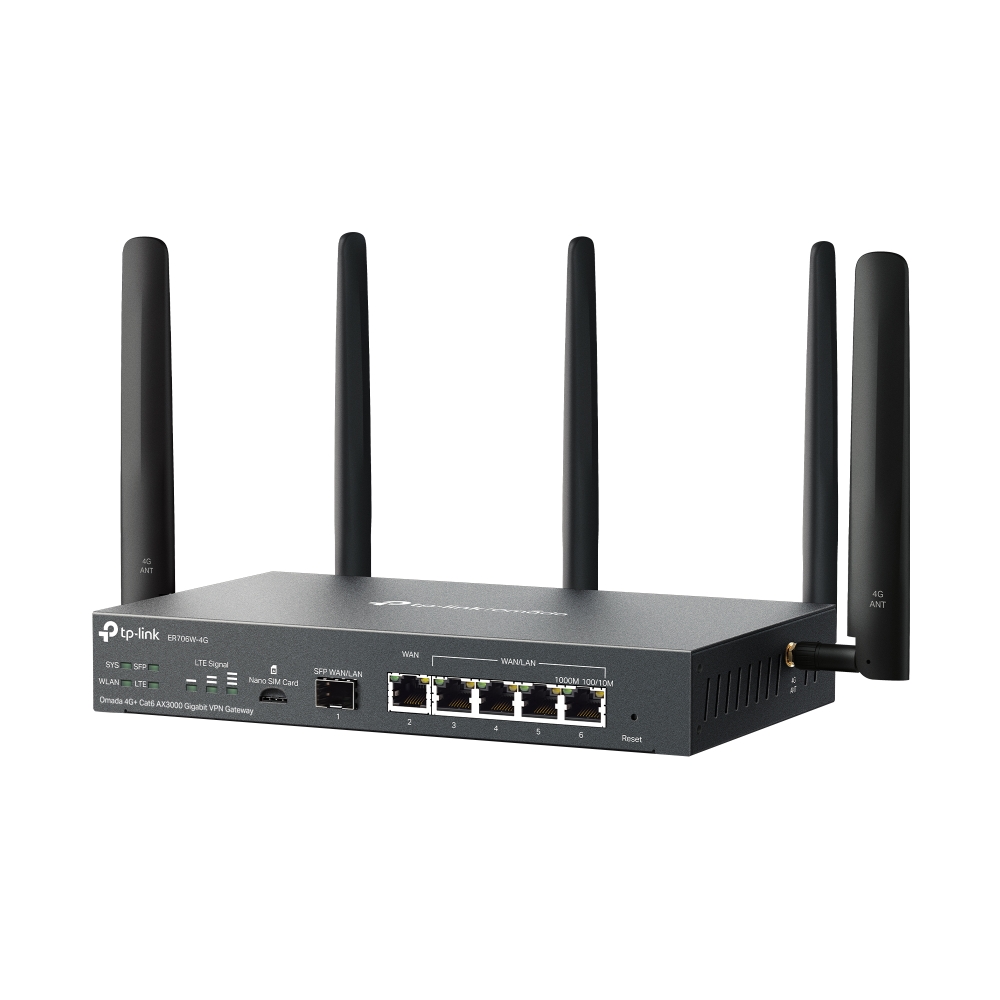

TP Link ER706W-4G Omada WiFi 6 VPN Gateway - 1xSFP & 5xRJ45 & 1xUSB 3.0

Technical Specifications

Network Type

• LTE Band of EU:
  • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
  • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
  • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)
• Carrier Aggregation:
  • B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
  • B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
  • B5+B5/B7/B38/B40/B41
  • B7+B7/B8/B20/B28/B32
  • B8+B32/B38/B40/B41
  • B20+B32/B38/B40
  • B28+B32/B38/B40/B41
  • B38+B38
  • B40+B40
  • B41+B41

SIM Type

• 1 x Nano SIM Card

Frequency

• Downlink: 300 Mbps
• Uplink: 50 Mbps

Security

Access Control

• Source/Destination IP Based Access Control

Filtering

• Web Group Filtering
• URL Filtering
• Web Security

ARP Inspection

• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding

Attack Defence

• TCP/UDP/ICMP Flood Defence
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Hardware Features

Interface

• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Button

• Reset Button

Power Supply

• 12VDC / 2A Power Adapter

WiFi Frequency & Signal Rate

• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)

Flash

• 128 MB NAND

DRAM

• 512 MB DDR4

LED

• SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

Dimensions (W x D x H)

• 226 x 131 x 35 mm (8.9 x 5.2 x 1.4 in.) (Antenna dimensions are not included)

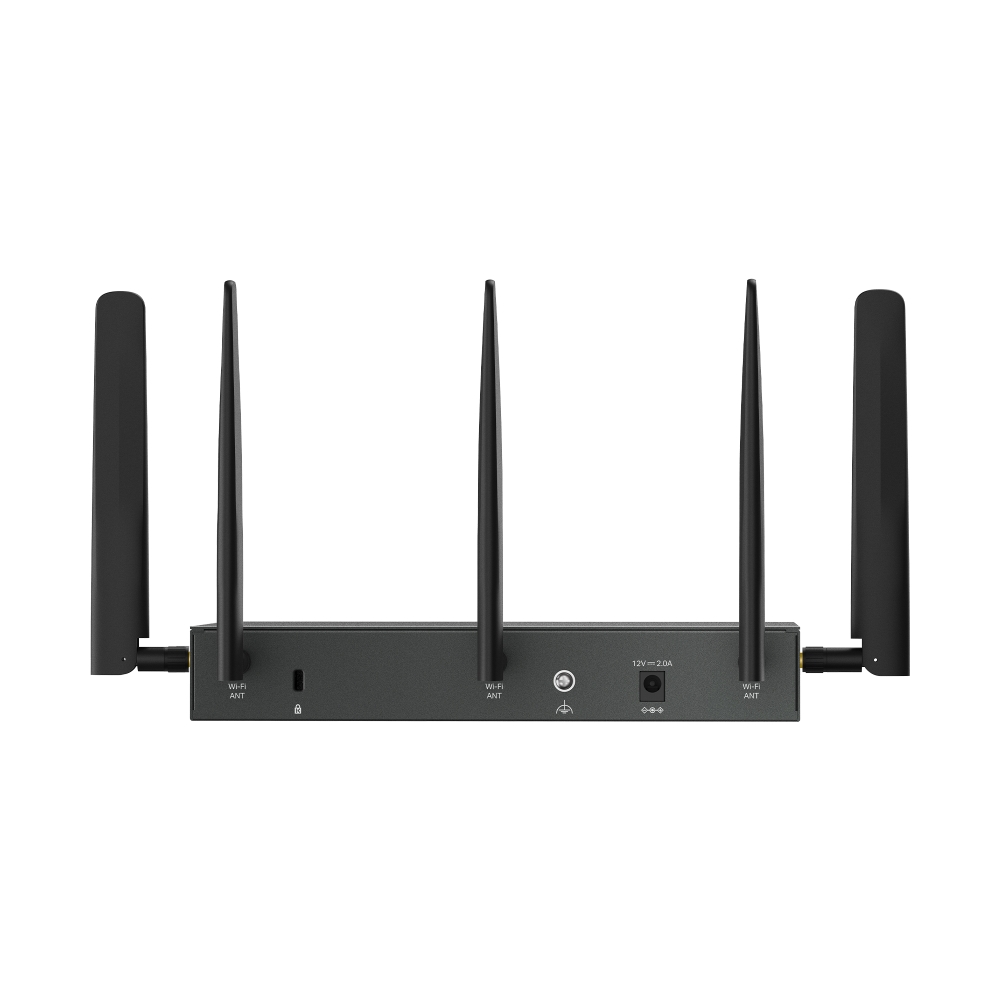

Antenna

• WiFi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas

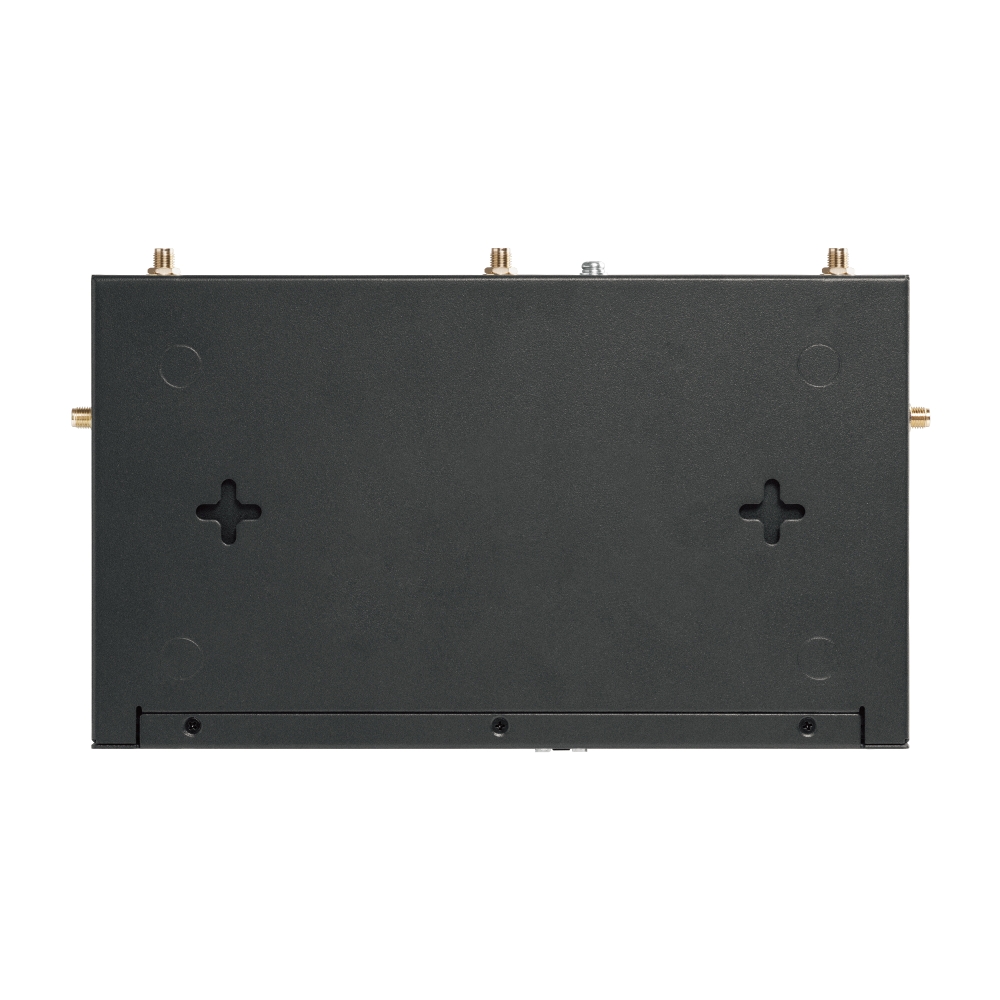

Mounting

• Desktop/Wall-Mounting

Max Power Consumption

• EU: 17.3W

Performance

GRE

• Unencrypted: 545.3Mbps
• Encrypted: 282.6Mbps

WireGuard VPN

• 387.7Mbps

Concurrent Session

• 150,000

New Sessions per Second

• 5,100

NAT (Static IP)

• 947.1Mbps / 940.1Mbps

NAT(DHCP)

• 949.2Mbps / 941.1Mbps

NAT(PPPoE)

• 942.6Mbps / 941.1Mbps

NAT (L2TP)

• 875.4Mbps / 892.0Mbps

NAT (PPTP)

• 881.2Mbps / 895.8Mbps

IPsec VPN Throughput

SMS

• Receive / Send SMS

IPv6

• StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN

• 802.1Q VLAN

IPTV

• IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Functions

ACL

• IP/Port/Protocol/Domain Name Filtering

Advanced Routing

• Static Routing
• Policy Routing
• RIP
• OSPF

Bandwidth Control

• IP-Based Bandwidth Control

Load Balance

• Intelligent Load Balance
• Application Optimised Routing
• Link Backup(Timing, Failover)
• Online Detection

NAT

• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit

• IP-Based Session Limit

VPN

GRE

• Only in Standalone Mode

SSL VPN

• 50 Tunnels

IPsec VPN

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN

• PPTP VPN Server
• PPTP VPN Client (10)
• 50 Tunnels
• PPTP with MPPE Encryption

L2TP VPN

• L2TP VPN Server
• L2TP VPN Client (10)
• 50 Tunnels
• L2TP over IPSec

OpenVPN

• OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

Authentication

Web Authentication

• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• LDAP

Management

Omada App

• Yes

Centralised Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

• Yes

Service

• Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customisation)

Maintenance

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronise
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support

Zero-Touch Provisioning

• Yes. Require the use of Omada Clou
