Technical Specifications
Hardware Features

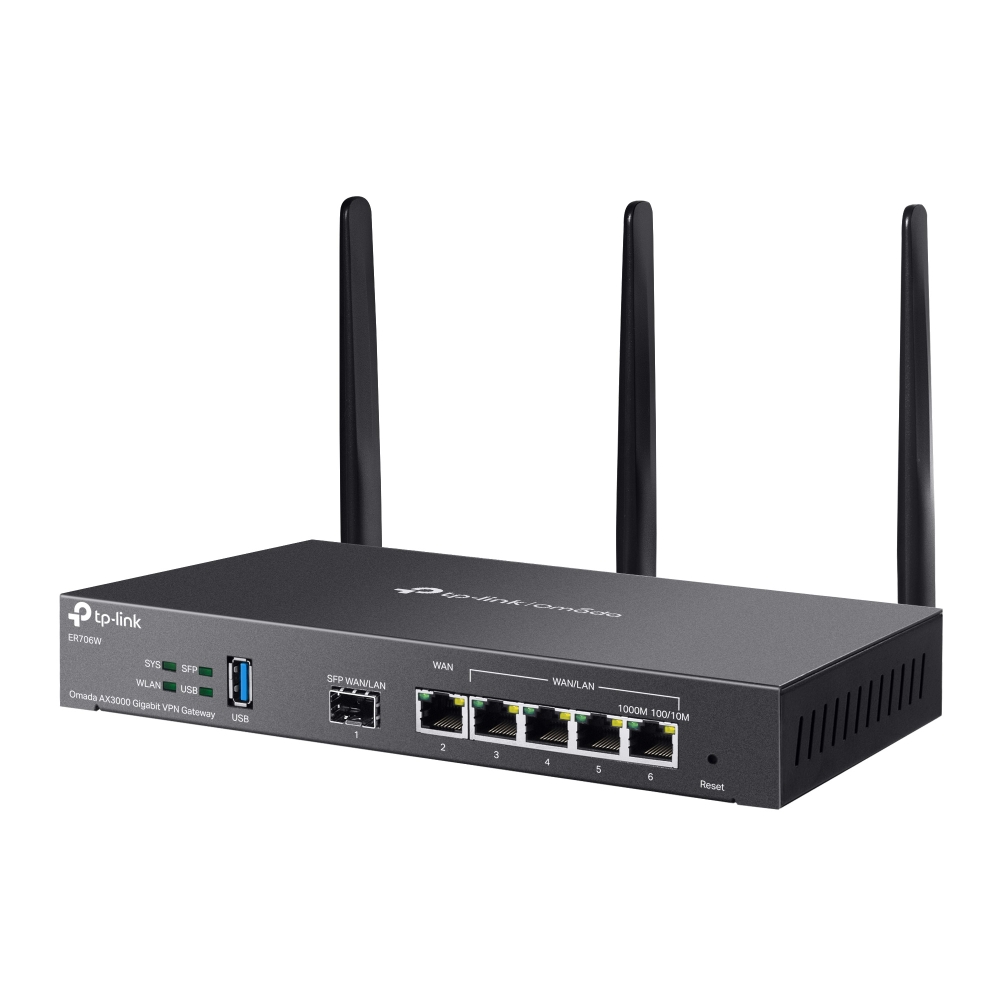

Interface
- 1 x Gigabit SFP WAN/LAN Port
- 1 x Gigabit WAN Port
- 4 x Gigabit LAN/WAN Ports
- 1 x USB 3.0 (supports USB LTE dongle and USB Storage)
Button
Power Supply
WiFi Frequency & Signal Rate
- 2.4 GHz: 574 Mbps
- 5 GHz: 2402 Mbps (HE160)
Flash
DRAM
Dimensions (W x D x H)(not including antennas)
- 226 x 131 x 35 mm (8.9 x 5.2 x 1.4 in.)
Antenna
- 2.4 GHz: 2x 3 dBi dual-band detachable antennas
- 5 GHz: 3x 4.5 dBi dual-band detachable antennas

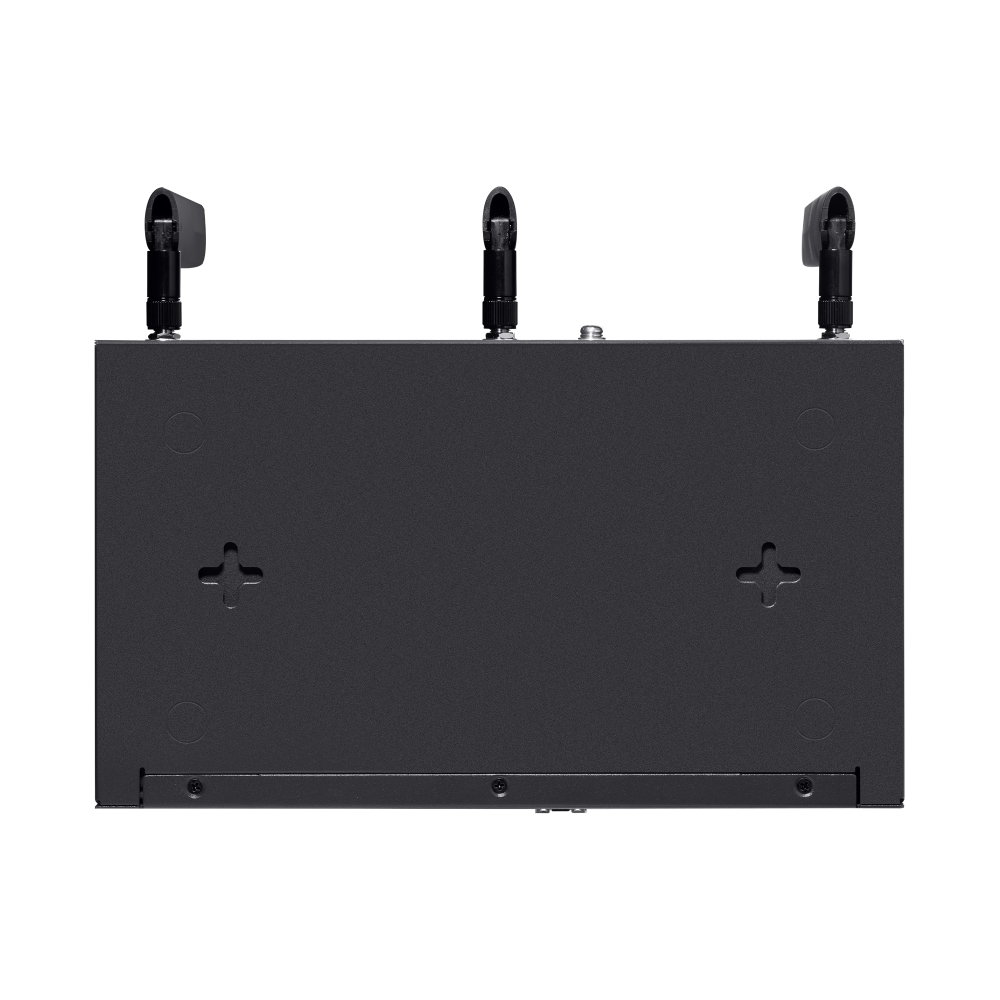

Mounting
Max Power Consumption
- 16.8W (with USB 3.0 connected)
- 11.8W (without USB 3.0 connected)
Performance
GRE
- Unencrypted: 624.2Mbps
- Encrypted: 301.5Mbps
WireGuard VPN
Concurrent Session
New Sessions / Second
NAT (Static IP)
NAT(DHCP)
NAT(PPPoE)
NAT (L2TP)
NAT (PPTP)
IPsec VPN Throughput
- ESP-SHA1-AES256: 646.9Mbps
- ESP-SHA256-AES256: 642.8Mbps
- ESP-SHA384-AES256: 648.9Mbps
- ESP-SHA512-AES256: 658.4Mbps
OpenVPN
L2TP VPN Throughput
- Unencrypted: 1034.0 Mbps
- Encrypted: 570.0 Mbps
PPTP VPN Throughput
- Unencrypted: 1165.0 Mbps
- Encrypted: 209.0 Mbps
SSL VPN Throughput
66 Byte Packet forwarding rate
- 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate
Wireless Features
Advanced Functions
- Seamless Roaming
- Mesh (with EAP that supports Mesh)
- OFDMA
- Beamforming
- MU-MIMO
- Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Network
Basic Functions
WAN Connection Type
- Static IP
- Dynamic IP
- PPPoE (supports MRU Configuration)
- PPTP
- L2TP
MAC Clone
DHCP
Bandwidth Control
- IP-Based Bandwidth Control
Load Balance
- Intelligent Load Balance
- Application Optimised Routing
- Link Backup(Timing, Failover)
- Online Detection
NAT
- One-to-One NAT
- Multi-Net NAT
- Port Forwarding
- Port Triggering
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
Session Limit
VPN
SSL VPN
IPsec VPN
- 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN
- PPTP VPN Server
- PPTP VPN Client (10)
- 50 Tunnels
- PPTP with MPPE Encryption
L2TP VPN
- L2TP VPN Server
- L2TP VPN Client (10)
- 50 Tunnels
- L2TP over IPSec
OpenVPN
- OpenVPN Server
- OpenVPN Client (5)
- 55 OpenVPN Tunnels
- "Certificate + Account" Mode
- Full Mode
Security
Filtering
- Web Group Filtering
- URL Filtering
- Web Security
ARP Inspection
- Sending GARP Packets
- ARP Scanning
- IP-MAC Binding
Attack Defence
- TCP/UDP/ICMP Flood Defence
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
Access Control
- Source/Destination IP Based Access Control
Authentication
Web Authentication
- No Authentication
- Simple Password
- Hotspot (Local User / Voucher / SMS / Radius)
- External Radius Sever
- External Portal Sever
- LDAP
Management
Omada App
Centralised Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC200/OC300 - sold separately)
- Omada Software Controller
Cloud Access
Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customisation)
Maintenance
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)
- NTP Synchronise
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
Zero-Touch Provisioning
- Yes, requires the use of Omada Cloud-Based Controller
Management Features
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
