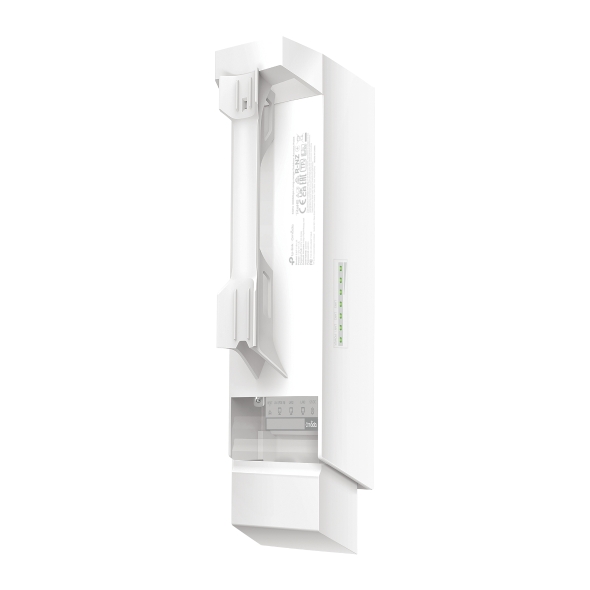

TP Link EAP211-BRIDGEKIT Omada Wireless Bridge, WiFi 5 Pole Mountable (Pack of 2)
Product Ref: EAP211-BRIDGEKIT
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
- Ideal for long-range wireless transmission up to 1 km.
- Auto-pairing and agile LEDs for efficient deployment.
- Three (3) Gigabit Ethernet ports for more high-speed IP camera connections.
- Supports Omada SDN for remote and centralised management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
- Supports Passive PoE for flexible deployment (adapter included).
Technical Specifications
Hardware Features
Interface

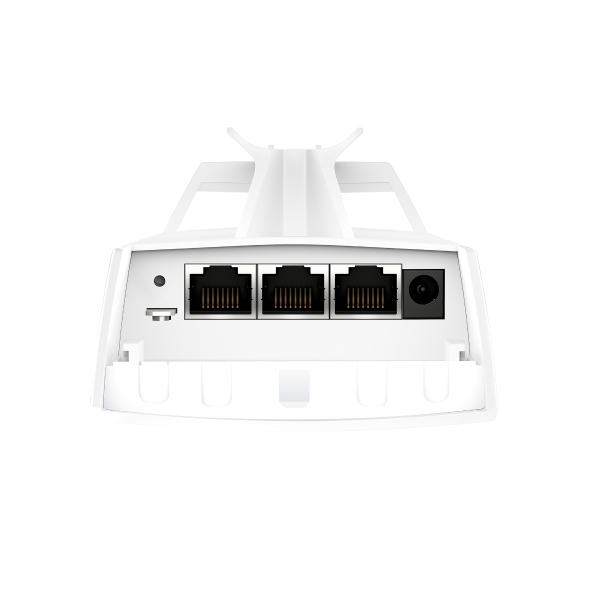

- 3 x Gigabit Ethernet Ports
Button
- Reset
Power Supply
- 12V DC / 24V Passive PoE (Passive PoE adapter included.)
Power Consumption
- 11.5W
Dimensions (W x D x H)
- 79 x 60 x 224 mm (3.1 x 2.4 x 8.8 in.)
Antenna Type
- Internal 2x2 Dual-polarised directional MIMO antennas
- 5 GHz: 7.0 dBi
- Horizontal: 70°; Vertical: 70°
Weatherproof Enclosure
- IP65
Mounting
- Pole Mounting (Accessories included)
Wireless Features
Coverage
- 1000 m (3280 ft.)
Wireless Standards
- IEEE 802.11 a/b/g/n/ac
Frequency
- 5 GHz
Signal Rate
- 5 GHz: Up to 867 Mbps
Wireless Functions
- Mesh
- MU-MIMO: 5G 2x2 MU-MIMO DL
- Load Balance
- Seamless Roaming (802.11r)
- Beamforming
- Airtime Fairness
- Multiple SSIDs: 8
- Wireless Statistics
- Wireless Schedule
- Reboot Schedule
- RADIUS Accounting
- MAC Authentication
- Static IP/Dynamic IP
Wireless Security
- VLAN
- Access Control
- Rogue AP Detection
- Captive Portal Authentication
- Maximum number of MAC Filter: 4,000
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power
- CE:
- < 23dBm (5 GHz, band 1/2, EIRP)
- < 30dBm (5 GHz band3, EIRP)
- FCC:
- < 22dBm (5 GHz band1/4)
Management
Omada App
- Yes
Restore & Backup
- Yes
Firmware update via Web
- Yes
NTP
- Yes
Centralised Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
- Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1, v2c, v3
SSH
- Yes
Web-based Management
- Yes
Other Specifications
Certification
- CE, FCC, RoHS
Environment
- Operating Temperature: -40°C – 70°C (-40°F – 158°F)
- Storage Temperature: -40°C – 70 °C (-40 °F–158 °F)
- Operating Humidity: 10% – 90% non-condensing
- Storage Humidity: 5% – 90% non-condensing
Package Contents
- EAP211-Bridge KIT
- Passive PoE Adapter
- Power Cord
- Installation Guide
- Mounting Kit
