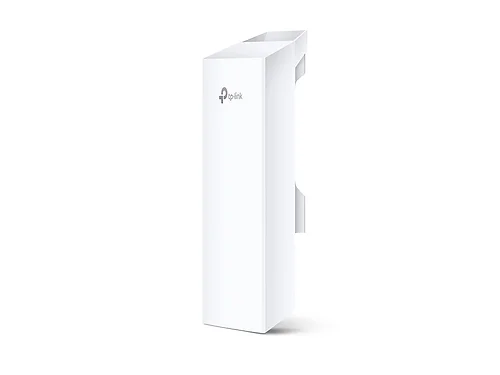

TP Link CPE510 Pharos 5GHz 300Mbps 13dBi Outdoor

Technical Specifications

Hardware Features

• Processor Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
• Memory 64MB DDR2 RAM, 8MB Flash

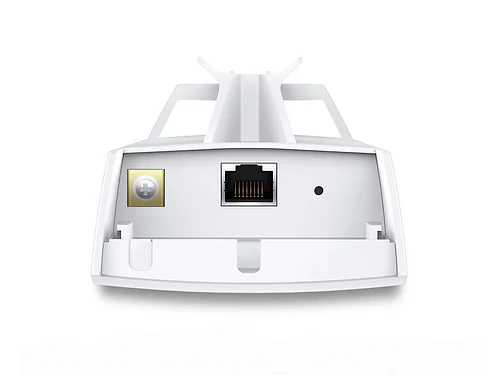

• Interface
  • 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
  • 1 Grounding Terminal
  • 1 Reset Button
• Antenna Type
  • Built-in 13dBi 2x2 Dual-polarized Directional Antenna
  • Beam Width: 45° (H-Plane) / 30° (E-Plane)
• Protection
  • 15KV ESD Protection
  • 6000V Lightning Protection
• Power Consumption 13 Watts Max
• Power Supply
  • Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC
• Dimensions for individual unit
  • 224 x 79 x 60 mm
• Enclosure
  • Outdoor ASA stabilized plastic material
  • IP55 waterproof Certification

Wireless Features

• Wireless Standards IEEE 802.11a/n (with Pharos MAXtream disabled)
• Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds
  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
• Frequency
  • 5.15~5.85GHz
• Reception Sensitivity
  • 802.11a:54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
  • 802.11n:
    • MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
    • MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
    • MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
    • MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
    • MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
• Transmission Power
  • 27dBm/500mw (Adjustable power by 1dBm)
• Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

Software Configuration

• Wireless Configurations
  • Pharos MAXtream TDMA Technology
  • 802.11a/n Modes
  • Selectable Channel Width: 5/10/20/40MHz
  • Automatic Channel Selection
  • Transmission Power Control
  • Dynamic Frequency Selection (DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging (AP mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced:
    • Beacon Interval/RTS Threshold/Fragmentation
    • Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
• Management
  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System Log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
• System Tools
  • Wireless Signal Quality Indicators:
    • Signal Strength/Noise/Transmit CCQ/CPU/Memory
    • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
    • Spectrum Analyzer
    • Speed Test
    • Ping
    • Traceroute
• System-level
  • Optimizations Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog

Certification

• CE, FCC, RoHS, IPX5

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Environment Operating

• Operating Temperature: -30°C~70°C (-22F~158F)
• Storage Temperature: -40C~70C (-40~158F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing

PoE Adapter Features

• Button Remote Reset Button
• Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
• Dimensions (W x D x H): 110 x 57 x 33.5 mm
• Efficiency >80%
• Input 100-240VAC, 50/60Hz
• Input Current 0.8A Max @ 100VAC
• Input Voltage 100VA~240VAC @ 50Hz~60Hz
• Interfaces
  • 1 AC Jack with Earth Ground
  • 1 10/100Mbps Shielded Ethernet Port (Power + Data)
  • 1 10/100Mbps Shielded Ethernet Port (Data)
• Output
  • 24VDC, 1.0A Max
  • +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
• Output Voltage 24VDC(+4,5pins; -7,8pins)
• Power Status LEDs 0~0.8A: Green 0.8A~1.0A: Red

Package Contents

• TP-LINK CPE510 Outdoor Wireless CPE
• 24V 1A Passive PoE Adapter
• Pole Mounting Straps
• AC Power Cord
• Installation Guide
