TP Link SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ 150W

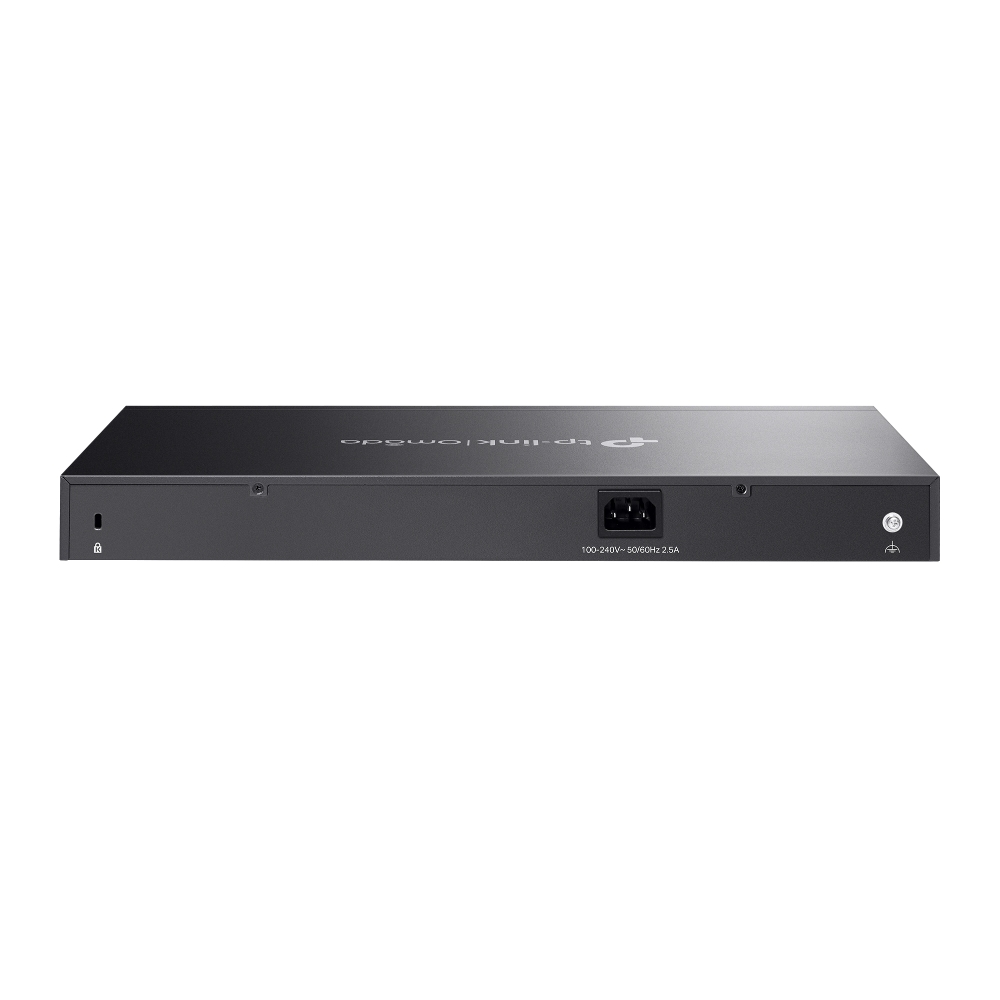

TL-SG2428LP 2

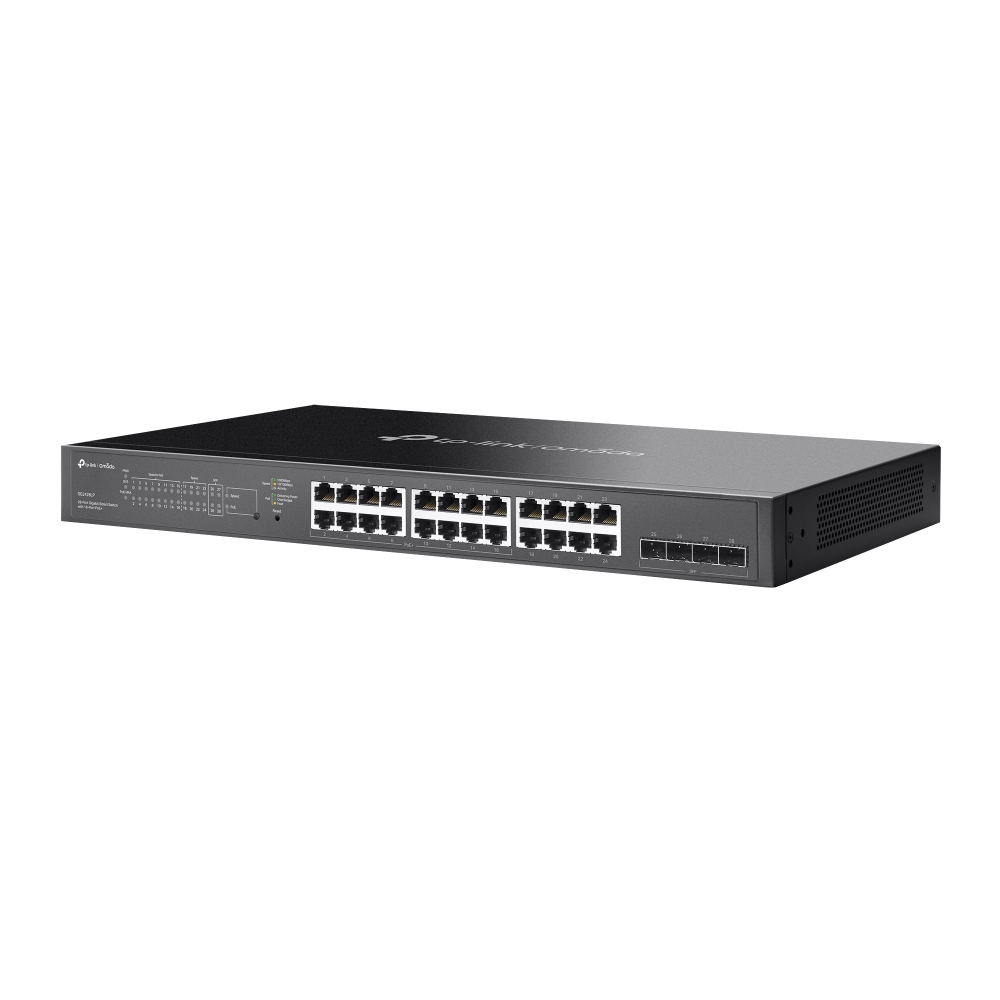

TL-SG2428LP 3
  • TP Link SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ 150W
  • TL-SG2428LP 2
  • TL-SG2428LP 3

TP Link SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ 150W

Product Ref: TL-SG2428LP

MPN: 88409

  • Sixteen (16) Gigabit 802.3af/at PoE+ ports.
  • Eight (8) Gigabit non-PoE RJ45 ports and four (4) Gigabit SFP slots.
  • 150 W total PoE budget with up to 30 W PoE output per port.
  • Centralised cloud management via the web or the Omada app*.
  • Standalone management via web, CLI, SNMP, and RMON.
  • Static Routing helps route internal traffic for higher efficiency.
  • VLAN, ACL, QoS, and IGMP Snooping.
  • Fanless design for quiet operation.
  • Durable metal casing and rackmountable design.



Product Features

Hardware Features

Interface

  • 16 x 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 8 x 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 4 x Gigabit SFP Slots

Fan Quantity

  • Fanless

Physical Security Lock

  • Yes

Power Supply

  • 100-240V AC, 50/60Hz

PoE Ports (RJ45)

  • Standard: 802.3at/af compliant
  • PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
  • PoE Power Budget: 150 W

Dimensions (W x D x H)

  • 440 x 220 x 44 mm (17.3 x 8.7 x 1.73 in.)

Mounting

  • Rack Mountable

Max Power Consumption

  • 184.7 W (110V/60Hz) (with 150 W PD connected)

Max Heat Dissipation

  • 628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected)

Performance

Switching Capacity

  • 56 Gbps

Packet Forwarding Rate

  • 41.66 Mpps

MAC Address Table

  • 8K

Packet Buffer Memory

  • 4.1 Mbit

Jumbo Frame

  • 9 KB

Software Features

Quality of Service

  • 802.1p CoS/DSCP priority
  • 8 priority queues
  • Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control: Port/Flow-based Rating Limit
  • Smoother Performance
  • Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

  • 16 x IP Interfaces: Support IPv4/IPv6 Interface
  • Static Routing: 32 IPv4/IPv6 Static Routes
  • DHCP Server
  • DHCP Relay
    • DHCP Interface Relay
    • DHCP VLAN Relay
  • DHCP L2 Relay
  • Static ARP
  • Proxy ARP
  • Gratuitous ARP
  • Link Aggregation
  • Spanning Tree Protocol
  • Loopback Detection
  • 802.3x Flow Control
  • Mirroring
  • Device Link Detect Protocol (DLDP)
  • 802.1ab LLDP/ LLDP-MED

L2 Multicast

  • 511 IPv4, IPv6 shared multicast groups
  • IGMP Snooping
  • Multicast VLAN Registration (MVR)
  • Multicast Filtering
  • Limited IP Multicast (256 profiles and 16 entries per profile)

Advanced Features*

  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule

VLAN

  • VLAN Group: Max. 4K VLAN Groups
  • 802.1Q tag VLAN
  • MAC VLAN: 12 Entries
  • Protocol VLAN
  • GVRP
  • Voice VLAN

Access Control List

  • Support up to 230 entries
  • Time-based ACL
  • MAC ACL
  • IP ACL
  • IPv6 ACL
  • Combined ACL
  • Rule Operation: Permit/Deny
  • Policy Action
    • Mirroring
    • Redirect
    • Rate Limit
