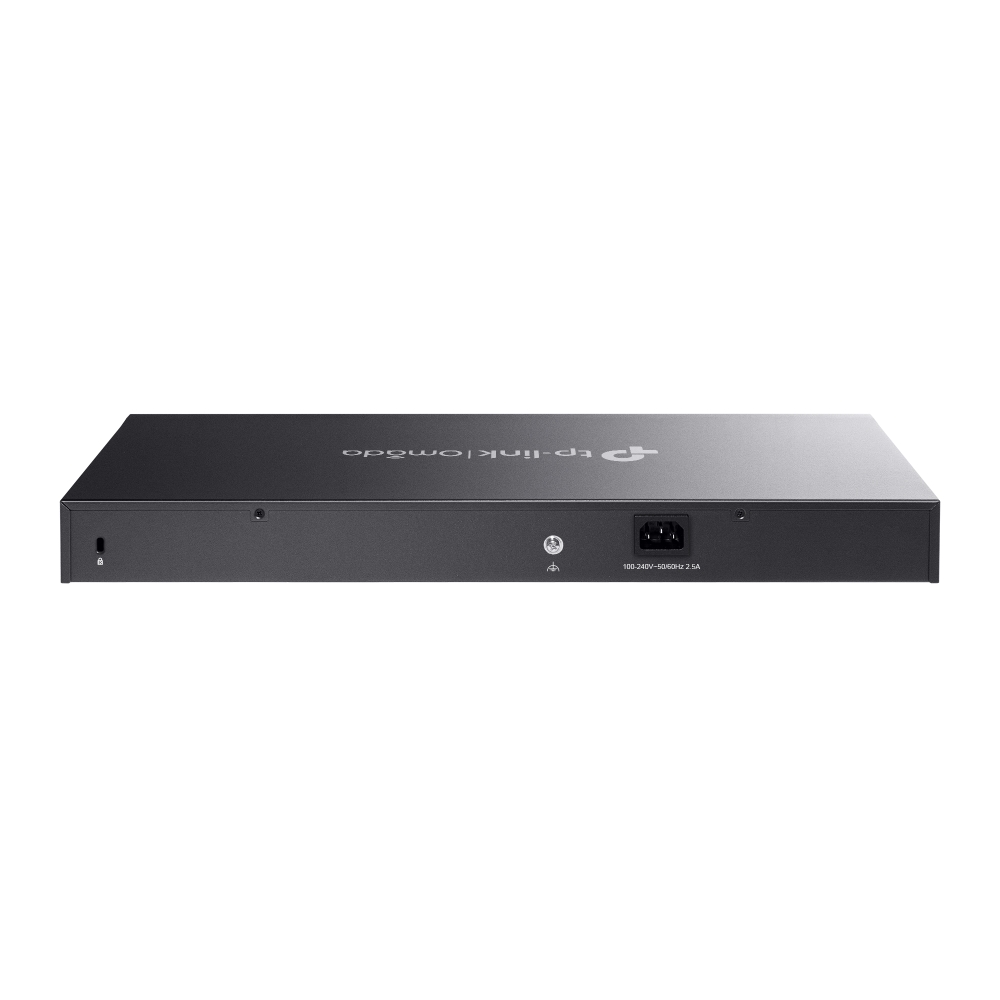

TP Link SG2218P Omada 18-Port Gigabit Smart Switch with 16-Port PoE+ 150W

Technical Specifications

Hardware Features

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

• 16 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2 x Gigabit SFP Slots

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF

Fan Quantity

• 1

Power Supply

• 100-240V AC, 50/60Hz

PoE Ports (RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 16 Ports
• PoE Power Budget: 150 W

Dimensions (W x D x H)

• 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in.)

Mounting

• Rack Mountable

Max Power Consumption

• 181.4 W (110 V/60 Hz) (with 150 W PD connected)
• 178.3 W (220 V/50 Hz) (with 150 W PD connected)

Max Heat Dissipation

• 619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected)
• 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected)

Performance

Switching Capacity

• 36 Gbps

Packet Forwarding Rate

• 26.78 Mpps

MAC Address Table

• 8K

Packet Buffer Memory

• 4.1 Mbit

Jumbo Frame

• 9 KB

Software Features

Quality of Service

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
  • Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
  • Multiple Control Modes(kbps/ratio)
  • Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

• 16 IP Interfaces
  • Support IPv4/IPv6 Interface
• Static Routing
  • 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
  • DHCP Interface Relay
  • DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
  • Static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
  • 802.1D STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
  • 802.3x Flow Control
• Mirroring
  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Flow-Based
  • Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

Access Control List

• Support up to 230 entries
• Time-Range
  • Time Slice
  • Week Time-Range
  • Absolute Time-Range
  • Holiday
• Time-based ACL
• MAC ACL
  • Source MAC
  • Destination MAC
  • VLAN ID
  • User Priority
  • Ether Type
• IP ACL
  • Source IP
  • Destination IP
  • IP Protocol
  • TCP Flag
  • TCP/UDP Source Port
  • TCP/UDP Destination Port
  • DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
  • Permit/Deny
• Policy Action
  • Mirror
  • Rate Limit
  • Redirect
  • QoS Remark
• ACL Rules Binding
  • Port Binding
  • VLAN Binding
• Actions for flows
  • Mirror (to supported interface)
  • Redirect (to supported interface)
  • Rate Limit
  • QoS Remark

Security

• AAA
• 802.1X
  • Port based authentication
  • MAC (Host) based authentication
  • Authentication Method includes PAP/EAP-MD5
  • MAB
  • Guest VLAN
  • Support Radius authentication and accountability
• IP/IPv6-MAC Binding
  • 512 Binding Entries
  • DHCP Snooping
  • DHCPv6 Snooping
  • ARP Inspection
  • ND Detection
• IP Source Guard
  • 253 Entries
  • Source IP+Source MAC
• IPv6 Source Guard
  • 183 Entries
  • Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
  • Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
  • kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

IPv6

• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbour discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
  • DHCPv6 Client
  • Ping6
  • Tracert6
  • Telnet(v6)
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • Http/Https
  • IPv6 TFTP

Advanced Features

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

MIBs

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

Management

Omada App

• Omada Cloud-Based Controller
• Omada Hardware Controller OC300/OC200 (sold separately)
• Omada Software Controller

Centralised M
