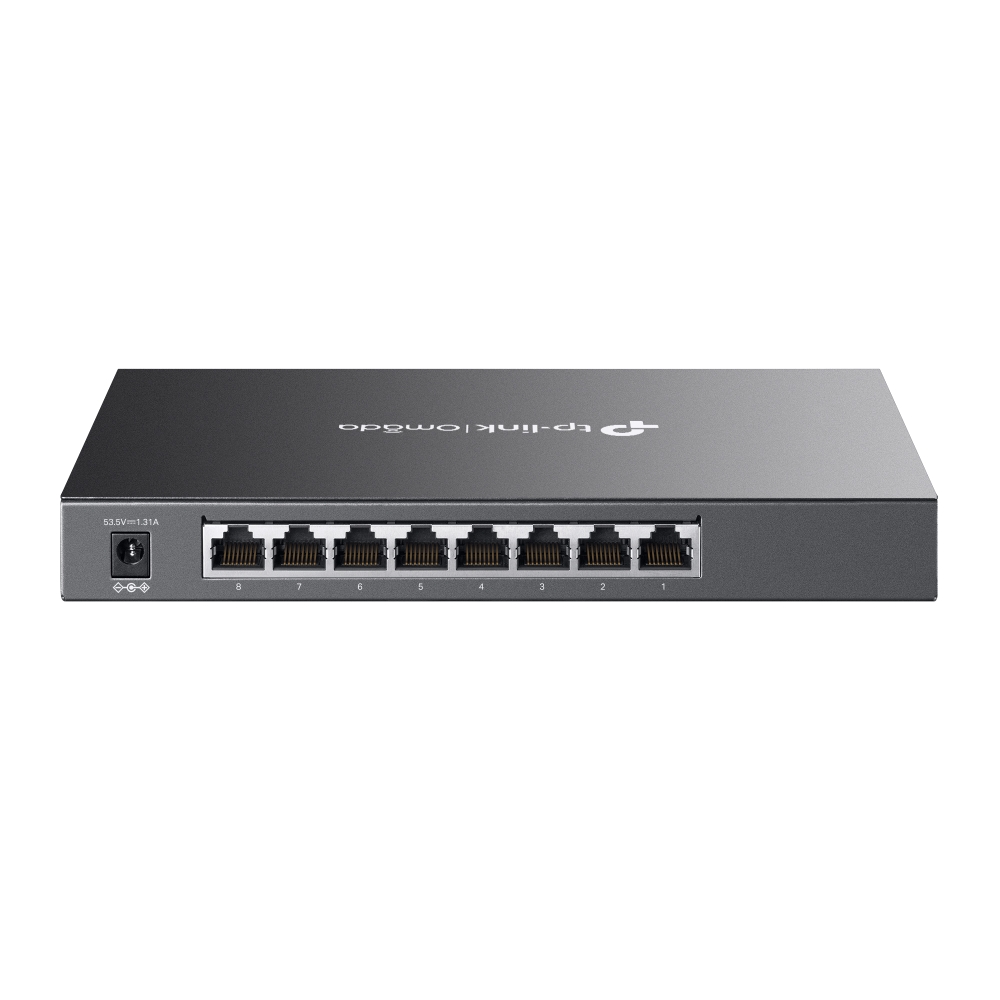

TP Link SG2008P Omada 8-Port Gigabit Smart Switch with 4-Port PoE+ 62W

Technical Specifications

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

• 8 × 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)
• Auto-Negotiation/Auto MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

• Fanless

Power Supply

• External Power Adapter (Output: 53.5 VDC/ 1.31 A)

Power Consumption

• 7.9 W (220 V/50 Hz) (no PD connected)
• 79.2 W (220 V/50 Hz) (with 62 W PD connected)

PoE Ports (RJ45)

• Standard: 802.3af/at compliant
• PoE Ports: 4 Ports
• Power Supply: 62 W

Dimensions ( W x D x H )

• 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)

PERFORMANCE

Bandwidth/Backplane

• 16 Gbps

MAC Address Table

• 8k

Packet Buffer Memory

• 4.1 Mbit

Jumbo Frame

• 9 KB

SOFTWARE FEATURES

Quality of Service

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
  • Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control
  • Multiple Control Modes(kbps/ratio)
  • Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

• DHCP Relay
  • DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
  • Static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
  • 802.1D STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
  • 802.3x Flow Control
• Mirroring
  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Flow-Based
  • Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

L2 Multicast

• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
  • IGMP v1/v2/v3 Snooping
  • Fast Leave
  • IGMP Snooping Querier
  • Static Group Config
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• MLD Snooping
  • MLD v1/v2 Snooping
  • Fast Leave
  • MLD Snooping Querier
  • Static Group Config
• Limited IP Multicast (256 profiles and 16 entries per profile)

IPv6 Support

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbour discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDP

  Access Control List

  • Support up to 230 entries
  • Time-Range
    • Time Slice
    • Week Time-Range
    • Absolute Time-Range
    • Holiday
  • Time-based ACL
  • MAC ACL
    • Source MAC
    • Destination MAC
    • VLAN ID
    • User Priority
    • Ether Type
  • IP ACL
    • Source IP
    • Destination IP
    • IP Protocol
    • TCP Flag
    • TCP/UDP Source Port
    • TCP/UDP Destination Port
    • DSCP/IP TOS
  • IPv6 ACL
  • Combined ACL
  • Rule Operation
    • Permit/Deny
  • Policy Action
    • Mirror
    • Rate Limit
    • Redirect
    • QoS Remark
  • ACL Rules Binding
    • Port Binding
    • VLAN Binding
  • Actions for flows
    • Mirror (to supported interface)
    • Redirect (to supported interface)
    • Rate Limit
    • QoS Remark

  Security

  • AAA
  • 802.1X
    • Port-based authentication
    • MAC (Host) based authentication
    • Authentication Method includes PAP/EAP-MD5
    • MAB
    • Guest VLAN
    • Support Radius authentication and accountability
  • IP/IPv6-MAC Binding
    • 512 Binding Entries
    • DHCP Snooping
    • DHCPv6 Snooping
    • ARP Inspection
    • ND Detection
  • IP Source Guard
    • 253 Entries
    • Source IP+Source MAC
  • IPv6 Source Guard
    • 183 Entries
    • Source IPv6 Address+Source MAC
  • DoS Defend
  • Static/Dynamic/Permanent Port Security
    • Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
    • kbps/ratio control mode
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • IP/Port/MAC-based access control

  MIBs

  • MIB II (RFC1213)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIBs
  • RMON MIB(RFC1757, rmon 1,2,3,9)

  MANAGEMENT

  Omada App

  • Yes

  Centralised Management

  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300 - sold separately)
  • Omada Hardware Controller (OC200 - sold separately)
  • Omada Software Controller

  Cloud Access

  • Through OC300/OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller

  Management Features

  • Web-based GUI
  • Command Line Interface (CLI) through telnet
  • SNMPv1/v2c/v3
  • SNMP Trap/Inform
  • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • SNTP
  • System Log

  OTHERS

  Certification

  • CE, FCC, RoHS

  System Requirements

  • Microsoft Windows
