TP Link SG2005P-PD Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In & 4-Port

Technical Specifications

Hardware Features

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

• 1 x 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt)
• 4 x 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

• Fanless

Power Supply

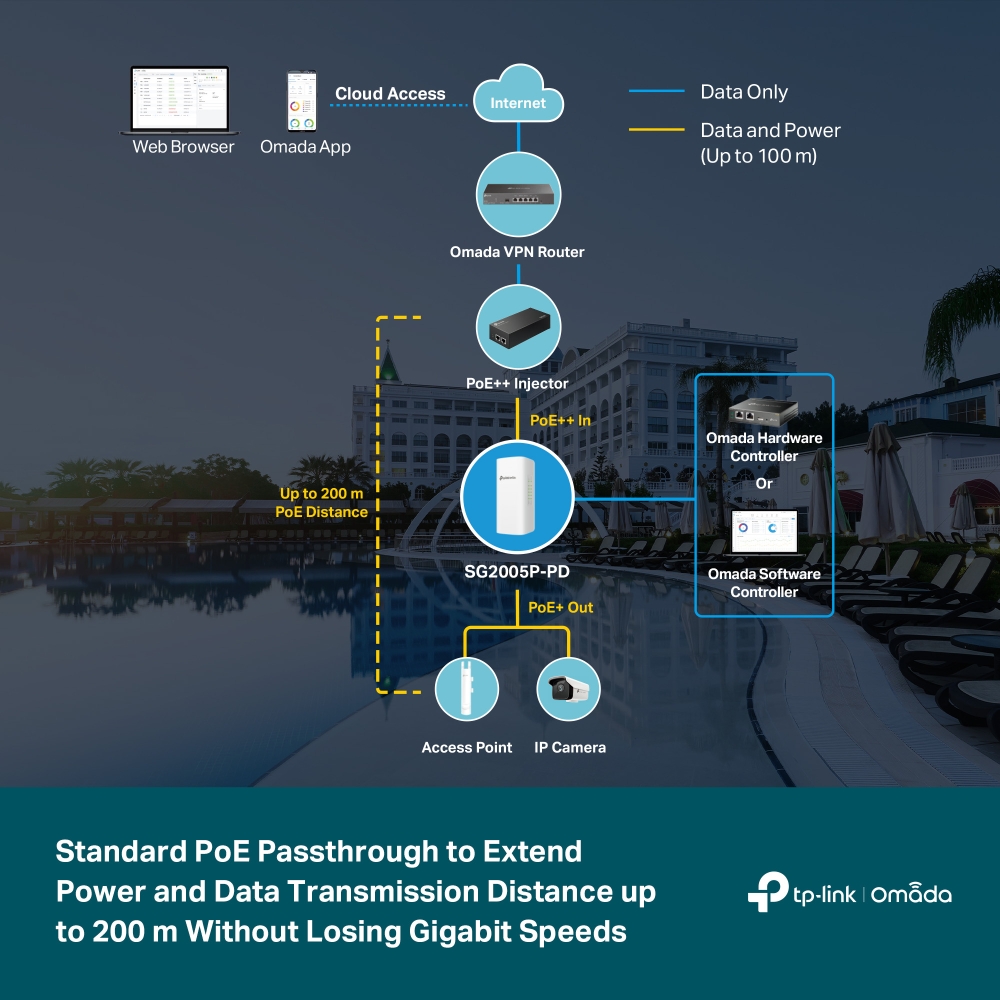

• Obtain Power from 802.3af/at/bt PoE Source

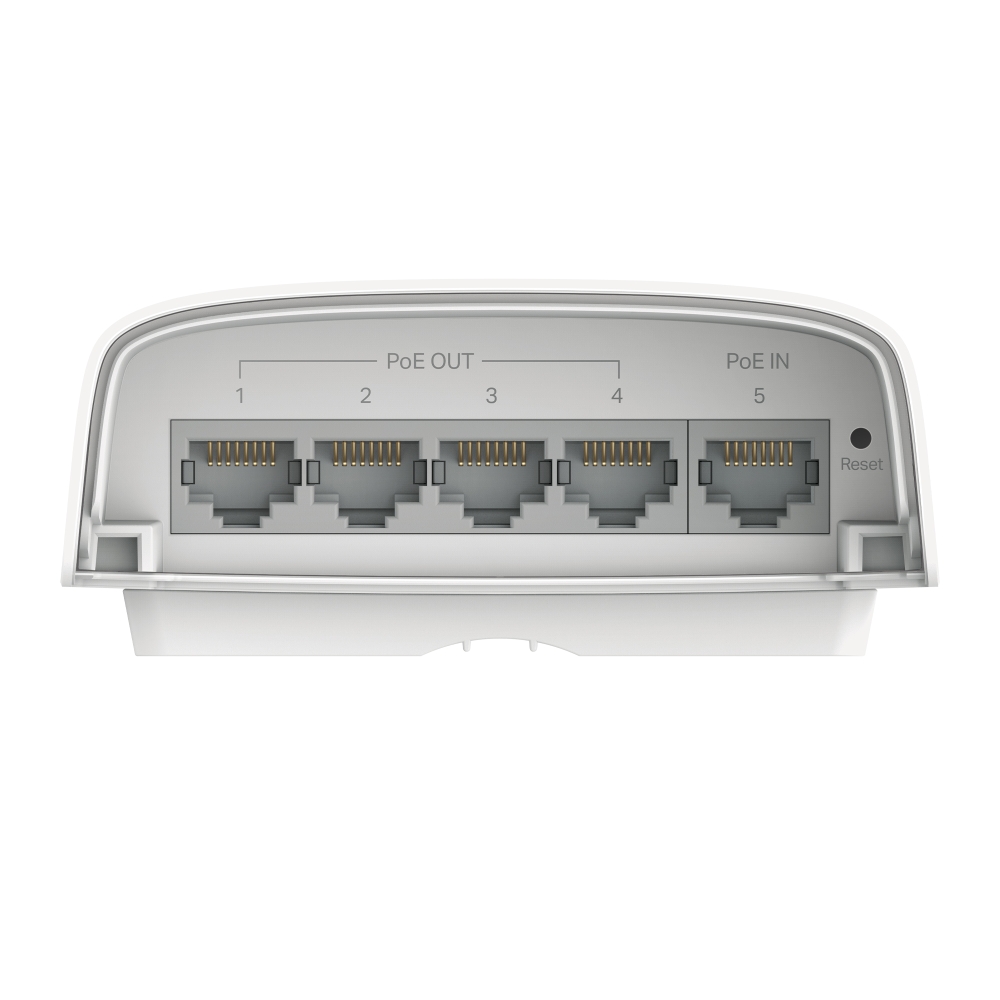

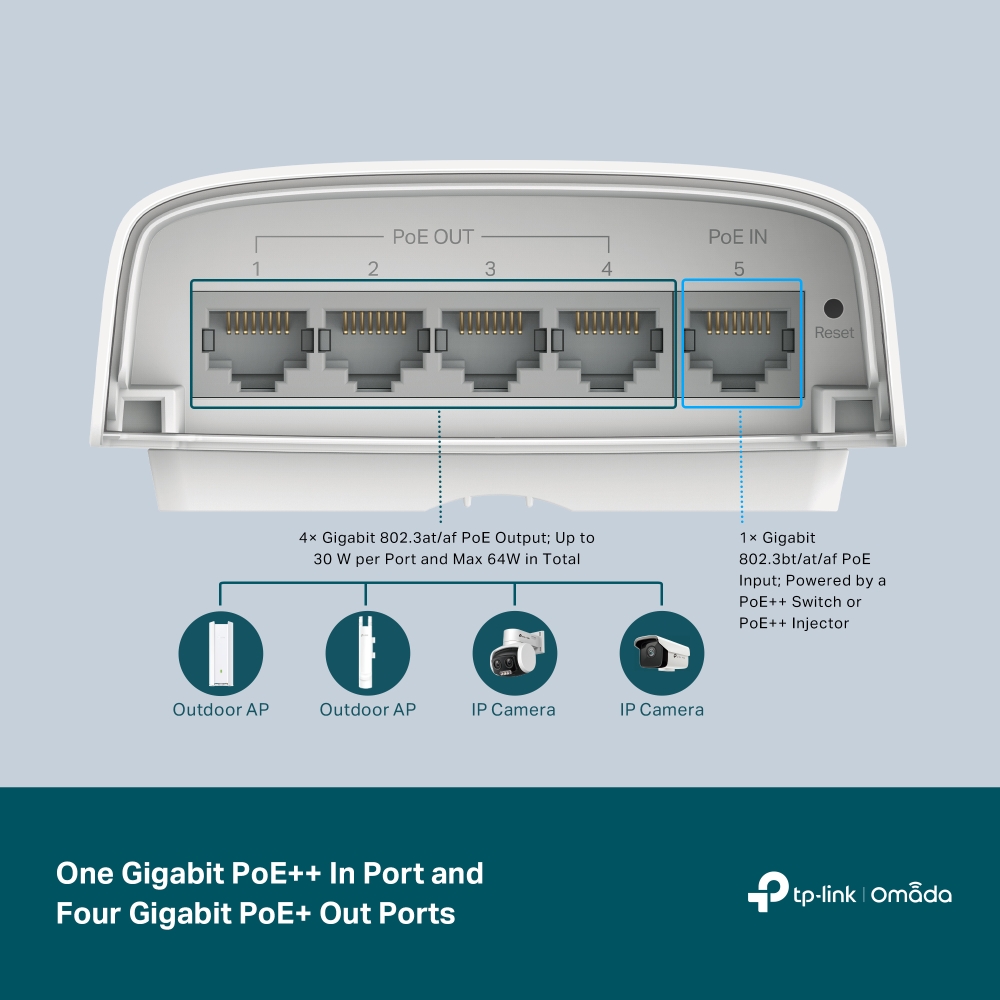

PoE Ports (RJ45)

• PoE In Port: Port 5, Compliance with 802.3af/at/bt
• PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE
• PoE Power Budget:
  • 64 W when powered by 802.3bt Type 4 (90 W)
  • 44 W when powered by 802.3bt Type 3 (60 W)
  • 19 W when powered by 802.3at
  • 6 W when powered by 802.3af

Dimensions (W x D x H)

• 100 x 38.5 x 170 mm (3.9 x 1.5 x 6.7 in.)

Max Power Consumption

• 71.5 W (when powered by 802.3bt Type 4 (90 W))

Max Heat Dissipation

• 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))

Performance

Switching Capacity

• 10 Gbps

Packet Forwarding Rate

• 7.44 Mpps

MAC Address Table

• 8k

Packet Buffer Memory

• 4.1 Mbit

Jumbo Frame

• 9 KB

Software Features

Quality of Service

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
  • Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control
  • Multiple Control Modes(kbps/ratio)
  • Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

• 16 IP Interfaces
  • Support IPv4/IPv6 Interface
• Static Routing
  • 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
  • DHCP Interface Relay
  • DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
  • Static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
  • 802.1D STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
  • 802.3x Flow Control
• Mirroring
  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Flow-Based
  • Ingress/Egress/Both
  • <

IPv6 Support

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbour discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
  • DHCPv6 Client
  • Ping6
  • Tracert6
  • Telnet (v6)
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • Http/Https
  • IPv6 TFTP

VLAN

• VLAN Group
  • Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN

Access Control List

• Support up to 230 entries
• Time-Range
  • Time Slice
  • Week Time-Range
  • Absolute Time-Range
  • Holiday
• Time-based ACL
• MAC ACL
  • Source MAC
  • Destination MAC
  • VLAN ID
  • User Priority
  • Ether Type
• IP ACL
  • Source IP
  • Destination IP
  • IP Protocol
  • TCP Flag
  • TCP/UDP Source Port
  • TCP/UDP Destination Port
  • DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
  • Permit/Deny
• Policy Action
  • Mirror
  • Rate Limit
  • Redirect
  • QoS Remark
• ACL Rules Binding
  • Port Binding
  • VLAN Binding
• Actions for flows
  • Mirror (to supported interface)
  • Redirect (to supported interface)
  • Rate Limit
  • QoS Remark

Security

• AAA
• 802.1X
  • Port-based authentication
  • MAC (Host) based authentication
  • Authentication Method includes PAP/EAP-MD5
  • MAB
  • Guest VLAN
  • Support Radius authentication and accountability
• IP/IPv6-MAC Binding
  • 512 Binding Entries
  • DHCP Snooping
  • DHCPv6 Snooping
  • ARP Inspection
  • ND Detection
• IP Source Guard
  • 253 Entries
  • Source IP+Source MAC
• IPv6 Source Guard
  • 183 Entries
  • Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
  • Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
  • kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control

MIBs

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

Management

Omada App

• Yes, through:
  • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller

Centralised Management

• Omada Cloud-Based Controller
• Omada Hardware Control
