TP Link SG1218MPE 18-Port Gigabit Easy Smart Switch with 16-Port PoE+ 250W
Product Ref: TL-SG1218MPE
MPN: 64955
- Sixteen (16) PoE+ 10/100/1000Mbps RJ45 ports.
- Two (2) Gigabit SFP slots.
- High PoE power budget with up to 30W for each PoE port.
- PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems.

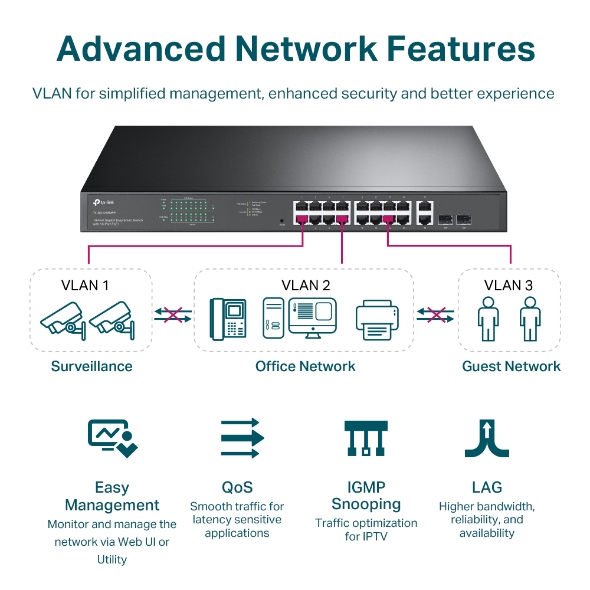

- Advanced features for higher performance like 802.1Q VLAN, 802.1p QoS and IGMP Snooping.
- QoS is for a smooth internet-surfing experience and IGMP Snooping is capable of optimising traffic for IPTV.
- Intelligent power management module like PoE Schedule, PoE Priority, PoE Power Limit.
- Intelligent power management can protect the switch from overload.
- Port Priority is able to guarantee the quality of sensitive applications like a video monitor.
Technical Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1q
- IEEE 802.1p
Interface
- 16 x 10/100/1000 Mbps RJ45 Ports
- Auto Negotiation/Auto MDI/MDIX
- 2 x Gigabit SFP Ports
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-X MMF, SMF
Fan Quantity
- 2 Fans
Physical Security Lock
- Yes
Power Supply
- 100-240V AC, 50/60 Hz
PoE+ Ports (RJ45)
- Standard: 802.3at/802.3af compliant
- PoE+ Ports: 16 Ports
- Power Supply: 192W
Dimensions (W x D x H)
- 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in.)
Mounting
- Rack Mountable
Max Power Consumption
- 18.73 W (220/50Hz. no PD connected)
- 217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation
- 63.89 BTU/h (no PD connected)
- 741.15 BTU/h (with 192W PD connected)
Performance
Switching Capacity
- 36 Gbps
Packet Forwarding Rate
- 23.8 Mbps
MAC Address Table
- 8K
Packet Buffer Memory
- 4.1 Mbit
Jumbo Frame
- 9 KB
Software Features
Quality of Service
- Support Port-based 802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
VLAN
- Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Management
- Web-based GUI
- Easy Smart Configuration Utility
Transmission Method
- Store-And-Forward
Other Features
Certification
- CE
- FCC
- RoHS
Environment
- Operating Temperature: 0ºC ~ 50ºC (32ºF ~ 122ºF)
- Storage Temperature: -40ºC ~ 70ºC (-40ºF ~ 158ºF)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Package Contents
- 1 x TL-SG1218MPE
- 1 x Power cord
- 1 x Installation guide
- 1 x Resource CD
- 1 x Rackmount kit
- 1 x Set of rubber feet
