TP Link SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+ 250W

Technical Specifications

Hardware Features

Standards and Protocols

• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface

• 16 x PoE+ gigabit RJ45 ports
• 2 x gigabit RJ45/SFP combo ports

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100 ohms STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100 ohms STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100 ohms STP (maximum 100m)
• 1000BASE-X MMF, SMF

Fan Quantity

• 2

Physical Security Lock

• Yes

Power Supply

• 100–240 VAC, 50/60 Hz

PoE+ Ports (RJ45)

• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16

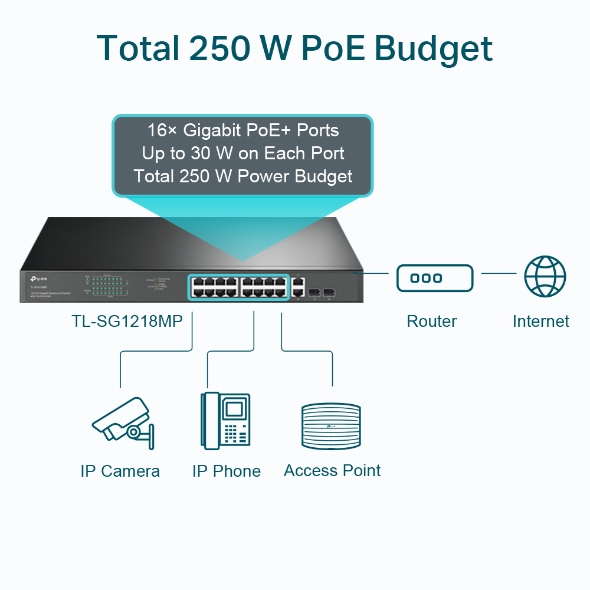

• PoE Power Budget: 250 W

Dimensions (W x D x H)

• 440 x 180 x 44 mm (17.3 x 7.1 x 1.73 in.)

Mounting

• Rack Mountable

Max Power Consumption

• 21.4 W (220/50 Hz. no PD connected)
• 286.64 W (220/50 Hz. with 250 W PD connected)

Max Heat Dissipation

• 72.97 BTU/h (no PD connected)
• 977.44 BTU/h (with 250 W PD connected)

Performance

Switching Capacity

• 36 Gbps

Packet Forwarding Rate

• 26.78 Mbps

MAC Address Table

• 8K

Packet Buffer Memory

• 4.1 Mbit

Advanced Functions

• Compatible With IEEE 802.3af/at Compliant PDs
• 802.1p/DHCP QoS
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Jumbo Frame

• 10 KB

Others

Certification

• CE, FCC, RoHS

Environment

• Operating Temperature: 0ºC – 50ºC (32ºF – 122ºF)
• Storage Temperature: -40ºC – 70ºC (-40ºF – 158ºF)
• Operating Humidity: 10% – 90% RH non-condensing
• Storage Humidity: 5% – 90% RH non-condensing

Package Contents

• 1 x TL-SG1218MP
• 1 x Installation Guide
• 1 x Power Cord
• 1 x Rackmount Kit
• 1 x Rubber Feet
