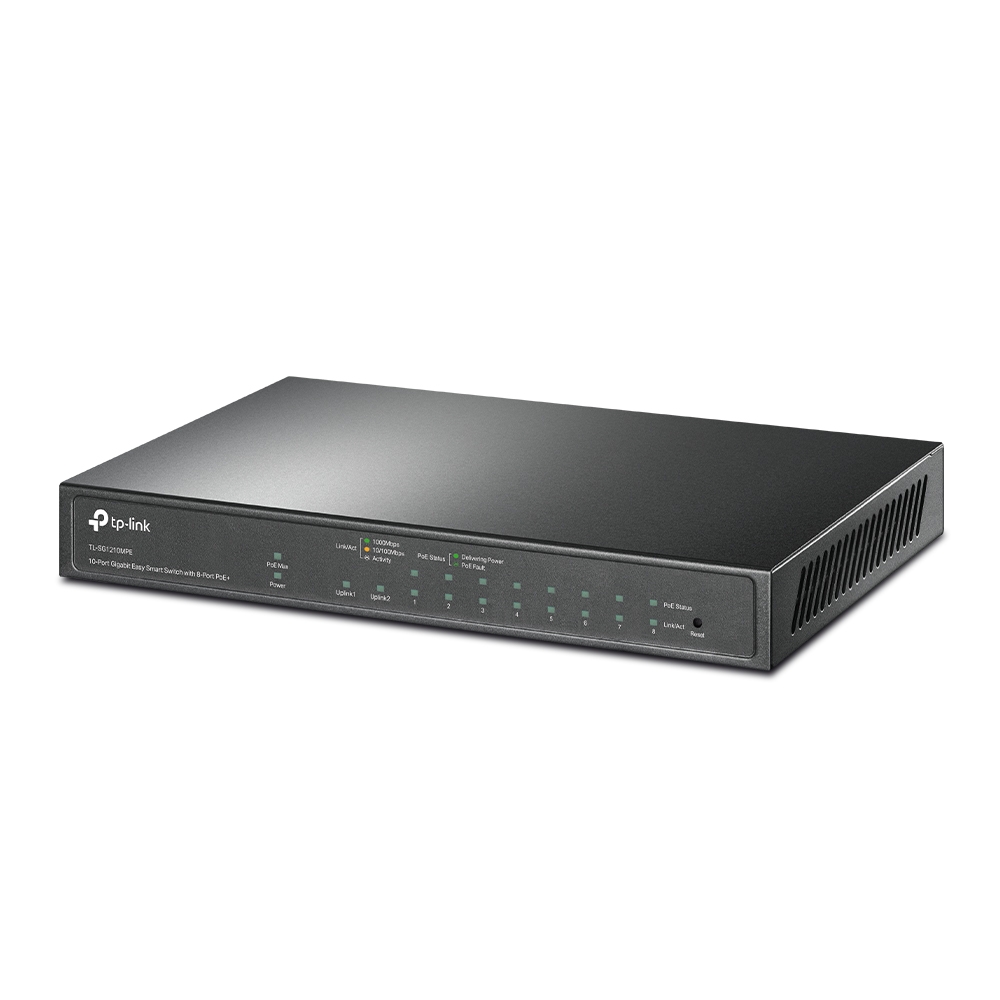

TP Link SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+ 123W
Product Ref: TL-SG1210MPE
- Nine (9) gigabit RJ45 ports and one (1) gigabit combo SFP/RJ45 port.
- Equipped with eight (8) 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable.
- Supports PoE power up to 123 W for all PoE ports.
- Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery.
- Simple network set-up on top of plug-and-play connectivity.
- Web-based user interface and Easy Smart Configuration Utility simplify configuration.
- Fanless design lowers energy consumption and eliminates operating noise.
Technical Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
Interface
- 9 x 10/100/1000 Mbps RJ45 Ports
- 1 x 1000 Mbps Combo SFP/RJ45 Port
- AUTO Negotiation/AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
- Fanless
Power Supply
- External Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Port 1- Port 8
- PoE Power Budget: 123 W

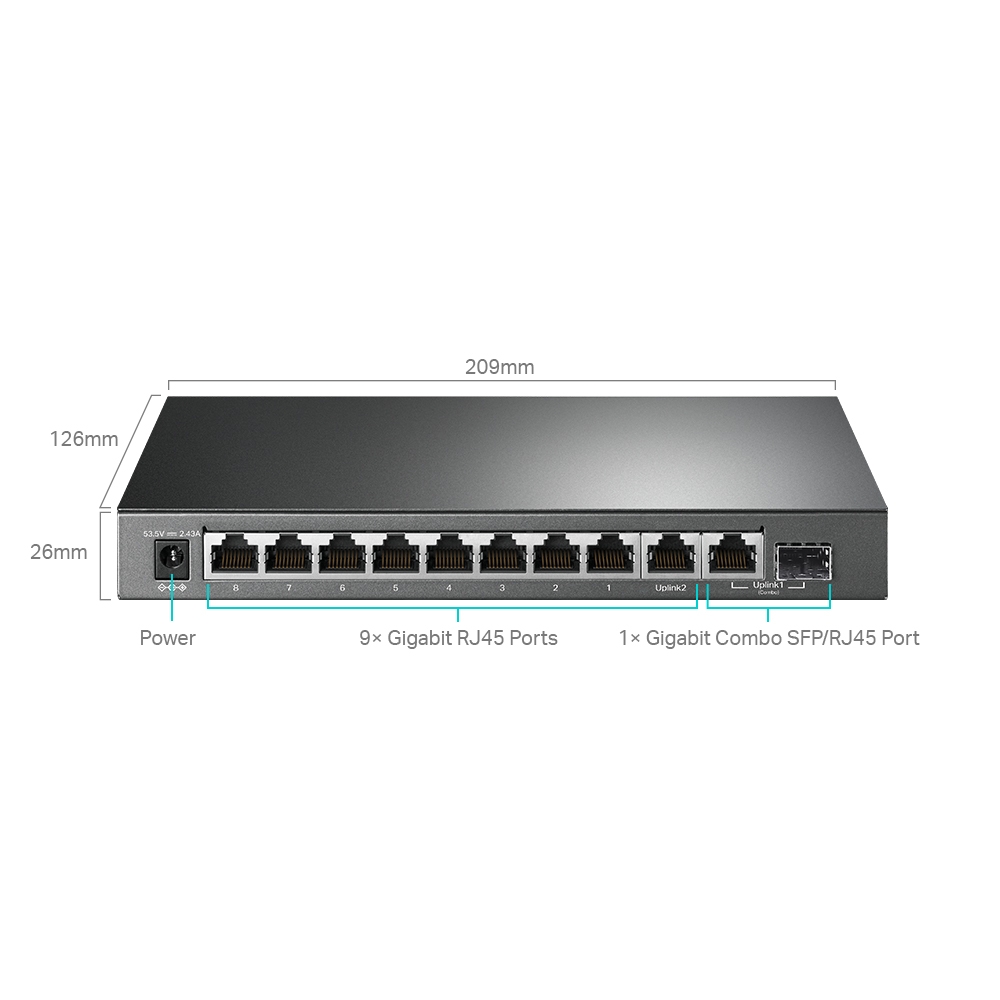

Dimensions (W x D x H)
- 209 x 126 x 26 mm (8.2 x 4.9 x 1.0 in.)
Max Power Consumption
- 7.66 W (220V / 50Hz with no PD connected)
- 141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation
- 26.12 BTU/h (220V / 50Hz with no PD connected)
- 482.65 BTU/h (220V / 50Hz with 123 W PD connected)
Performance
Switching Capacity
- 20 Gbps
Packet Forwarding Rate
- 14.88 Mpps
MAC Address Table
- 4 K
Jumbo Frame
- 16 KB
Software Features
Quality of Service
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
VLAN
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
PoE
- Extend Mode
- PoE Auto Recovery
Management
- Web-based GUI
- Easy Smart Configuration Utility
Transmission Method
- Store-And-Forward
Other Specifications
Certification
- FCC, CE, RoHS
System Requirements
- Microsoft Windows for running Utility
Environment
- Operating Temperature: 0ºC ~ 40ºC (32ºF ~ 104ºF)
- Storage Temperature: -40ºC ~ 70ºC (-40ºF ~ 158ºF)
- Operating Humidity: 10% ~ 90% RH non-condensing
- Storage Humidity: 5% ~ 95% RH non-condensing
Package Contents
- 1 x TL-SG1210MPE
- 1 x Power Adapter
- 1 x Installation Guide
- 1 x Rubber Feet
