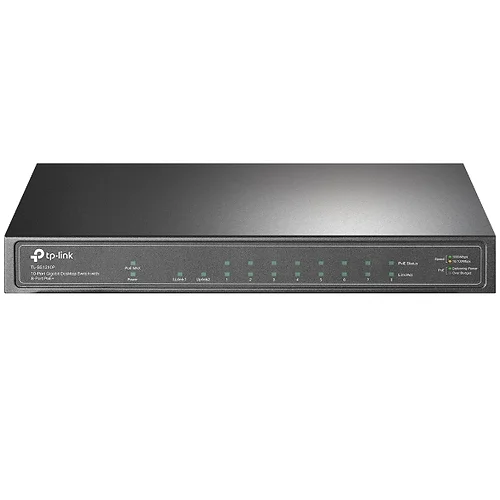

TP Link SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoE+123W
Product Ref: TL-SG1210MP
MPN: 70084
- Eight (8) gigabit PoE+ RJ45 ports, one (1) gigabit RJ45 port, and one (1) gigabit combo SFP/RJ45 port.
- Eight (8) PoE+ ports transfer data and power via a single cable with a total power budget of 123 W.
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port.
- Up to 250 m data and power transmission range under Extend Mode.
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and play with no configuration required.
- Fanless design reduces power consumption and works silently.
Technical Specifications
Hardware Features
Interface
- 9 x 10/100/1000 Mbps RJ45 Ports
- 1 x 1000 Mbps Combo SFP/RJ45 Port
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
- Fanless
Physical Security Lock
- Yes
External Power Supply
- External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate
- 14.88 Mpps
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–8
- Power Supply: 123 W
Mac Address Table
- 4K
Jumbo Frame
- 16 KB
Switching Capacity
- 20 Gbps
Dimensions (W x D x H)
- 209 x 126 x 26 mm (8.2 x 4.9 x 1.0 in.)
Max Power Consumption
- 7.93 W (220V / 50Hz with no PD connected)
- 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation
- 27.04 BTU/h (220V / 50Hz with no PD connected)
- 482.17 BTU/h (220V / 50Hz with 123 W PD connected)
Software Features
Transmission Method
- Store-And-Forward
Advanced Functions
- Compatible With IEEE 802.3af/at Compliant PDs
- Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
- Priority Mode Button (Ports 1–2)
- Isolation Mode Button (Ports 1–4 / 5-8)
- PoE Auto Recovery (Ports 1-8)
- Mac Address Auto-Learning and Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
Other Specifications
Certification
- FCC, CE, RoHS
Environment
- Operating Temperature: 0ºC – 40ºC (32ºF – 104ºF)
- Storage Temperature: -40ºC – 70ºC (-40ºF – 158ºF)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing
Package Contents
- 1 x TL-SG1210MP
- 1 x Power Adapter
- 1 x Installation Guide
