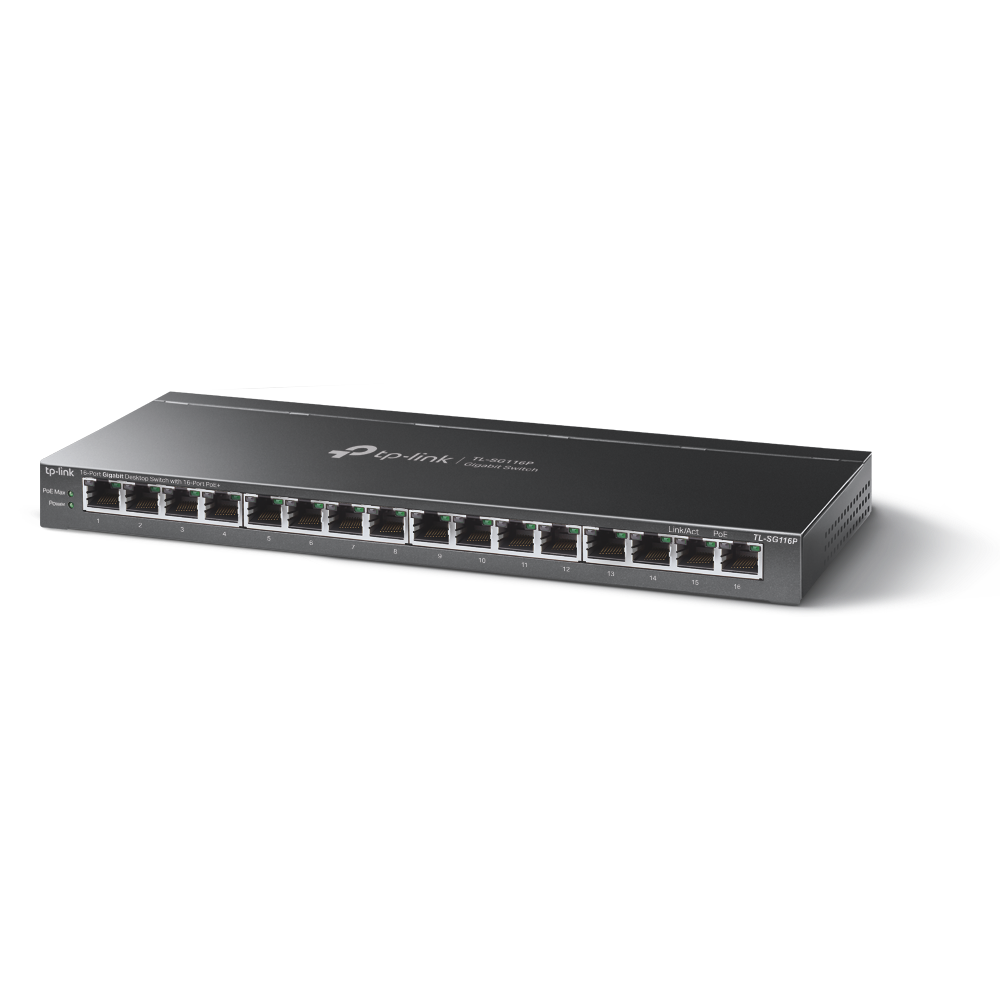

TP Link SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+ 120W
Product Ref: TL-SG116P
- teen (16) 10/100/1000 Mbps PoE+ RJ45 ports, transfers data and power on one single cable
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 120 W for all PoE ports
- Up to 250 m data and power transmission range under Extend Mode
- Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required
Technical Specifications
Hardware Features
Interface
- 16 × 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
- Fanless
External Power Supply
- External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate
- 23.8 Mpps
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–16
- Power Supply: 120 W
Mac Address Table
- 8K, Auto-learning, Auto-aging
Switching Capacity
- 32 Gbps
Dimensions ( W x D x H )
- 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)
Max Power Consumption
- 11.72 W (220 V / 50 Hz no PD connected)
- 11.56 W (110 V / 60 Hz no PD connected)
- 142.51 W (220 V / 50 Hz with 120 W PD connected)
- 144.28 W (110 V / 60 Hz with 120 W PD connected)
Max Heat Dissipation
- 39.85 BTU/h (220 V / 50 Hz no PD connected)
- 39.31 BTU/h (110 V / 60 Hz no PD connected)
- 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected)
- 490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)
Software Features
Advanced Features
- Compatible With IEEE 802.3af/at Compliant PDs
- Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
- Priority Mode Button (Ports 1–4)
- Isolation Mode Button (Ports 1–7 / 8-14)
- PoE Auto Recovery (Ports 1-16)
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
Transfer Method
- Store-And-Forward
Others
- Certification
- FCC, CE, RoHS
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
Package Contents
- 1 x TL-SG116P
- 1 x Power Adapter
- 1 x Installation Guide
