TP Link SG105PP-M2 5-Port 2.5G Desktop Switch with 4-Port PoE++ 123W

Product Ref: TL-SG105PP-M2

MPN: 80177

  • Five (5) 10Mbps/100Mbps/1Gbps/2.5Gbps RJ45 ports.
  • Four (4) of these ports support PoE++, transferring data and power on one single cable.
  • Works with IEEE 802.3af/at/bt type3 compliant PDs such as IP cameras, WiFi 6 APs and IP phones.
  • 802.1p/DSCP QoS enables smooth latency-sensitive traffic.
  • Supports up to 60W PoE++ power per PoE port, or up to 123W total PoE budget across all PoE ports.
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PDs.
  • Plug and play, no configuration and installation required.



Technical Specifications

Hardware Features

Interface

  • 5 x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
  • AUTO Negotiation
  • AUTO MDI/MDIX

Network Media

  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100 ohms STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100 ohms STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100 ohms STP (maximum 100m)

Fan Quantity

  • Fanless

External Power Supply

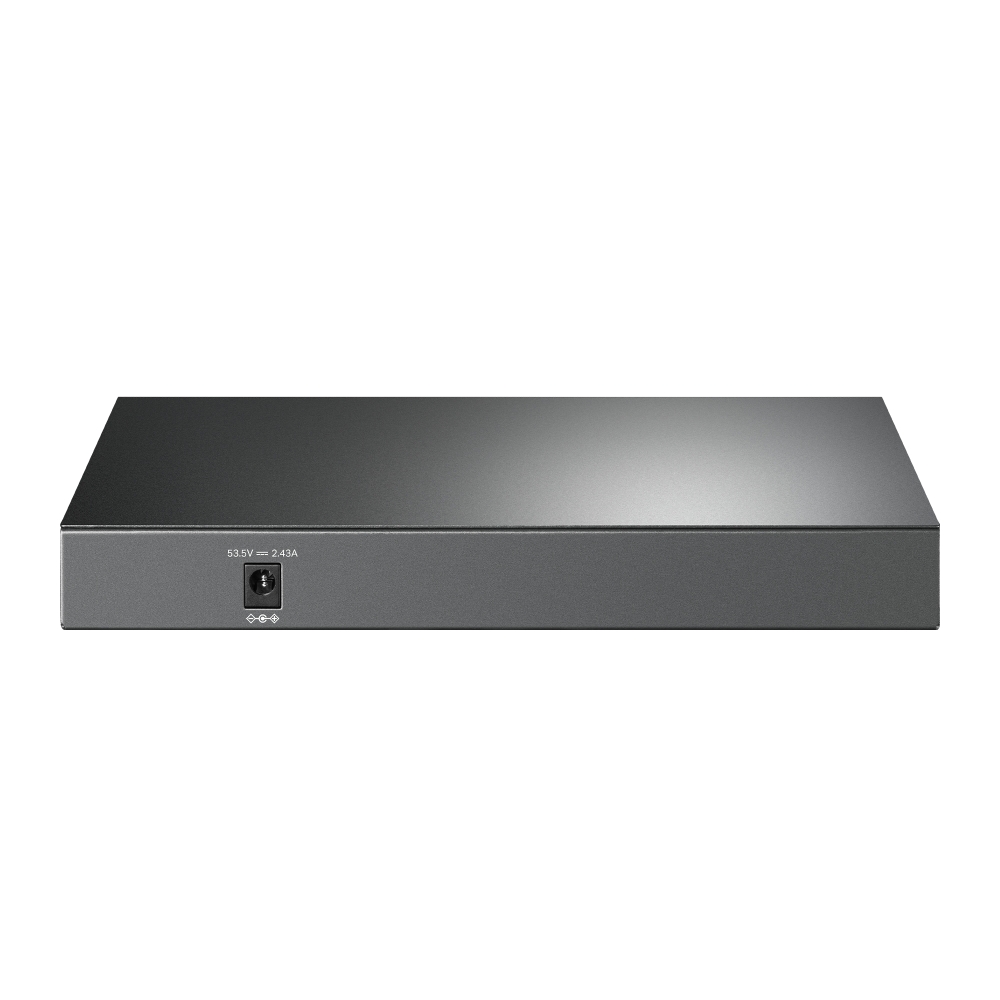

  • External Power Adapter (Output: 53.5 VDC / 2.43 A)

Packet Forwarding Rate

  • 18.6 Mpps

PoE Ports (RJ45)

  • Standard: 802.3 af/at/bt type3 compliant
  • PoE++ Ports: Ports 1–4
  • Power Supply: 123 W

Mac Address Table

  • 4K

Switching Capacity

  • 25 Gbps

Dimensions (W x D x H)

  • 209 x 126 x 26 mm (8.2 x 4.9 x 1.0 in.)

Max Power Consumption

  • 7.57 W (220/50 Hz. no PD connected)
  • 143.37 W (220/50 Hz. with 123 W PD connected)

Max Heat Dissipation

  • 25.81BTU/h (220 V/50 Hz with no PD connected)
  • 488.89 BTU/h (220 V/50 Hz with 123W PD connected)

Software Features

Advanced Features

  • Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
  • PoE Auto Recovery (Ports 1-4)

Transfer Method

  • Store-And-Forward

Other Specifications

Certification

  • FCC, CE, RoHS

Environment

  • Operating Temperature: 0°C – 40°C (32°F – 104°F)
  • Storage Temperature: -40°C – 70°C (-40°F – 158°F)
  • Operating Humidity: 10% – 90% RH non-condensing
  • Storage Humidity: 5% – 90% RH non-condensing

Package Contents

  • 1 x TL-SG105PP-M2
  • 1 x Power Adapter
  • 1 x Installation Guide
  • 1 x Set of Rubber Feet
