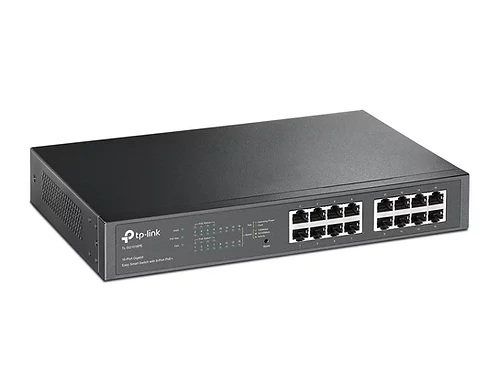

TP Link SG1016PE 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ 150W
Product Ref: TL-SG1016PE
- Sixteen (16) 10/100/1000Mbps RJ45 ports.
- Equipped with eight (8) PoE+ supported ports to transfer data and power over a single cable.
- With a total PoE power budget of 150 W, up to 30 W per port.
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks.
- Simple network set-up on top of plug-and-play connectivity.
- Web-based user interface and management utility simplify configuration.
Technical Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
- 16 x 10/100/1000 Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
- 1

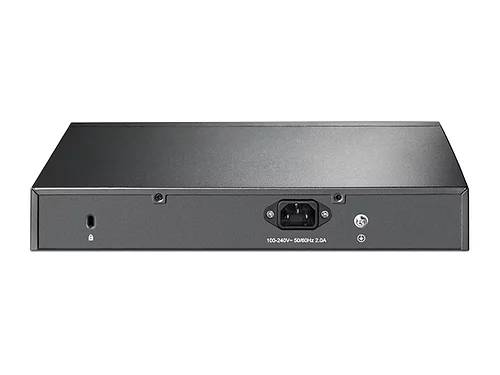

Physical Security Lock
- Yes
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Port 1 to Port 8
- PoE Power Budget: 150 W
Dimensions (W x D x H)
- 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in.)
Mounting
- Rack Mountable/Desktop
Max Power Consumption
- 8.07 W (110 V/ 60 Hz with no PD connected)
- 177.67 W (110 V/60 Hz with 150 W PD connected)
Max Heat Dissipation
- 27.52 BTU/h (with no PD connected)
- 605.85 BTU/h (with 150 W PD connected)
Performance
Switching Capacity
- 32 Gbps
Packet Forwarding Rate
- 23.8 Mbps
MAC Address Table
- 8K
Packet Buffer Memory
- 4.1 Mbit
Jumbo Frame
- 10 KB
Software Features
Quality of Service
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
VLAN
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Management
- Web-based GUI
- Easy Smart Configuration Utility
Transmission Method
- Store-And-Forward
Other Specifications
Certification
- FCC, CE, RoHS
System Requirements
- Microsoft Windows for running Utility
Environment
- Operating Temperature: 0°C – 50°C (32°F – 122°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% non-condensing
- Storage Humidity: 5% – 90% non-condensing
Package Contents
- TL-SG1016PE Switch
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
