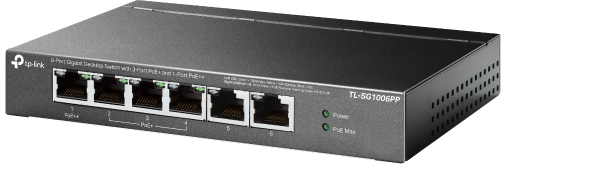

TP Link SG1006PP 6-Port Gigabit Desktop PoE Switch with 1-Port PoE++ & 3-Port
Product Ref: TL-SG1006PP
- Six (6) 10/100/1000 Mbps RJ45 ports.
- With one (1) PoE++ port and three (3) PoE+ ports, transfers data and power on one single cable.
- Works with IEEE 802.3af/at/bt compliant PDs.
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port.
- Supports PoE Power up to 64 W for all PoE ports.
- Up to 250m data and power transmitting range under Extend Mode.
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
- Plug and Play, no configuration and installation required.
Technical Specifications
Hardware Features
Interface
- 6 x 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
- Fanless
External Power Supply
- External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate
- 8.928 Mpps
PoE Ports (RJ45)
- Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
- Power Supply: 64 W
Mac Address Table
- 4K
Switching Capacity
- 12 Gbps
Dimensions (W x D x H)
- 158 x 101 x 25 mm (6.2 x 4.0 x 1.0 in.)
Max Power Consumption
- 4.75 W (220/50 Hz. no PD connected)
- 71.46 W (220/50 Hz. with 64 W PD connected)
Max Heat Dissipation
- 16.20 BTU/h (220/50 Hz. no PD connected)
- 243.68 BTU/h (220/50 Hz. with 64 W PD connected)
Software Features
Advanced Features
- Compatible With IEEE 802.3af/at/bt Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
- PoE Auto Recovery (Ports 1-4)
Transfer Method
- Store-And-Forward
Other Specifications
Certification
- FCC, CE, RoHS
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing
Package Contents
- 1 x TL-SG1006PP
- 1 x Power Adapter
- 1 x Installation Guide
