TP Link SG1005P-PD 5-Port Gigabit Desktop PoE Switch with 1-Port PoE++ In & 4-Port

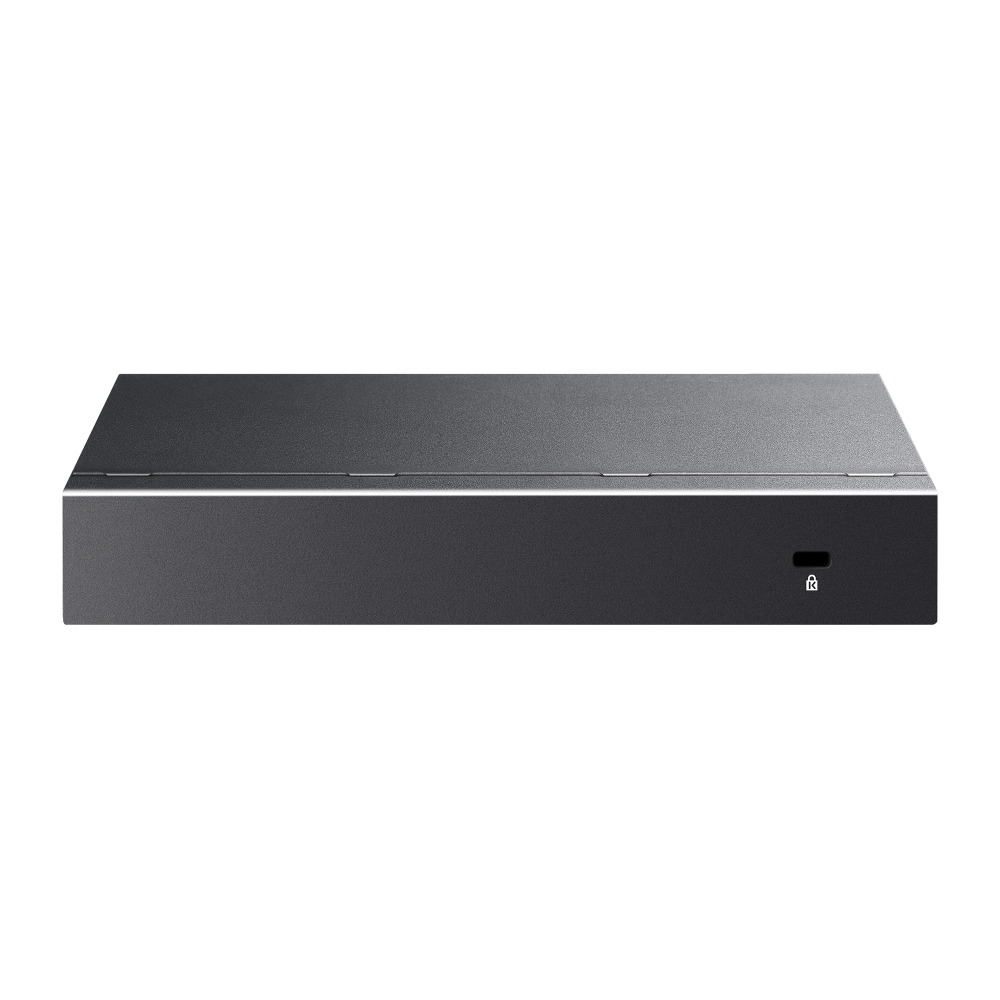

TL-SG1005P-PD 2

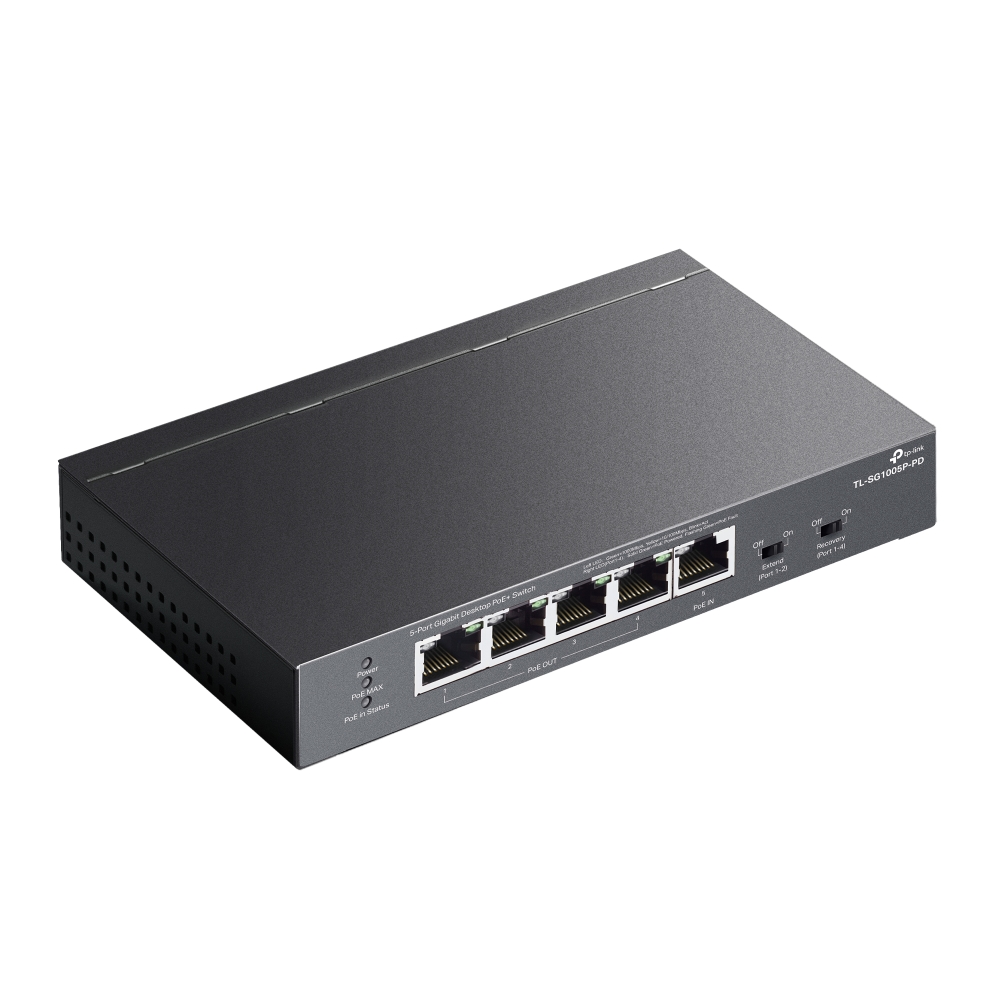

TL-SG1005P-PD 3

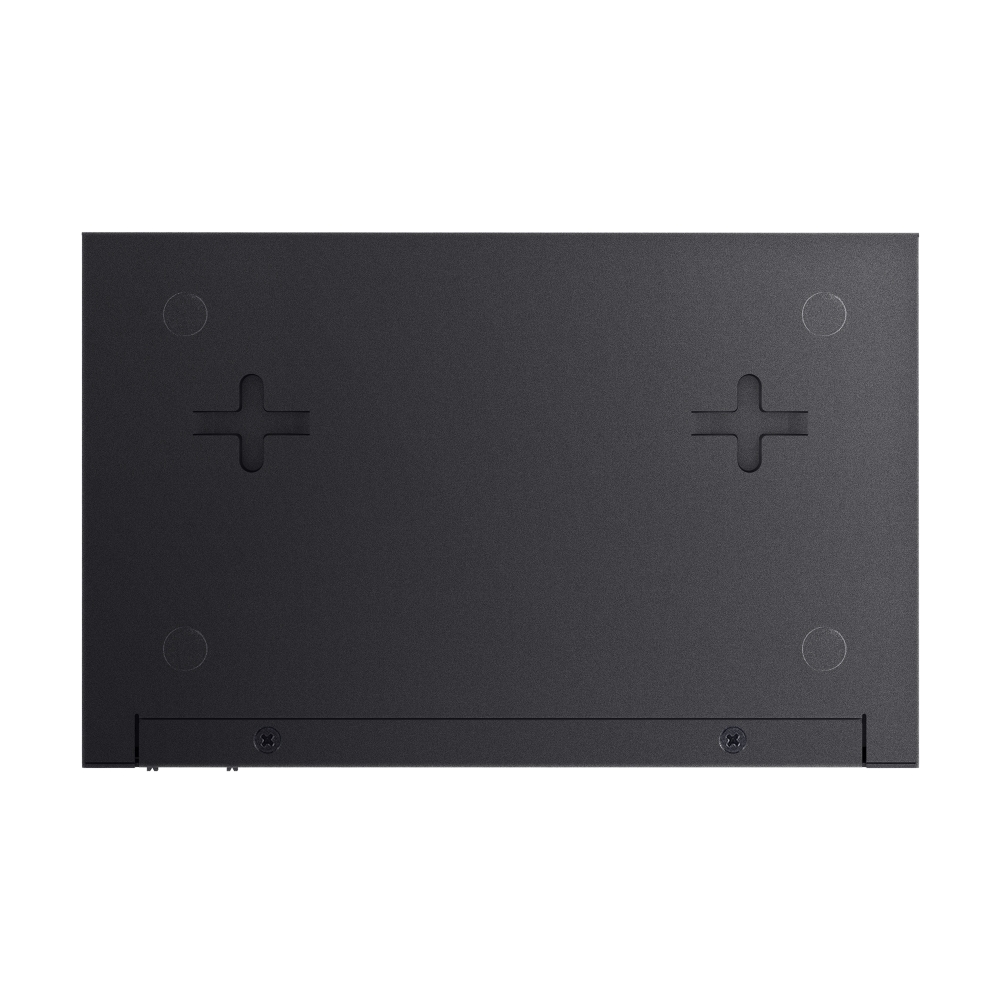

TL-SG1005P-PD 4
  • TP Link SG1005P-PD 5-Port Gigabit Desktop PoE Switch with 1-Port PoE++ In & 4-Port
  • TL-SG1005P-PD 2
  • TL-SG1005P-PD 3
  • TL-SG1005P-PD 4

TP Link SG1005P-PD 5-Port Gigabit Desktop PoE Switch with 1-Port PoE++ In & 4-Port

Product Ref: TL-SG1005P-PD

  • Ports
    Five (5) 10 Mbps/100 Mbps/1 Gbps RJ45 ports.
  • 1-Port Gigabit PoE++ In and 4-Port PoE+ Out
    Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.
  • Long-Range PoE+:
    With Extend Mode*, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
  • PoE Auto Recovery:
    It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
  • Metal Casing:
    Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
  • Silent Operation:
    Industry-leading fanless design ensures silent operation, ideal for any home or business.
  • Plug and Play:
    No configuration and installation required.
  • Power Supply:
    The product only supports PoE power supply, not AC or DC power supply.



Technical Specifications

Hardware Features

Standards and Protocols

  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p

Interface

  • 5 x 10/100/1000Mbps RJ45 Ports
  • 1 x 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
  • 4 x 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)
  • AUTO Negotiation
  • AUTO MDI/MDIX

Network Media

  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100O STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100O STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

  • Fanless

Power Supply

  • Only Powered by PoE Device

PoE Ports (RJ45)

  • PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
  • PoE Out Ports: Ports 1-4, compliance with 802.3af/at
  • PoE Power Budget:
    • 66 W when powered by 802.3bt Type 4 (90 W)
    • 47 W when powered by 802.3bt Type 3 (60 W)
    • 21 W when powered by 802.3at (30 W)
    • 9 W when powered by 802.3af (15.4 W)

Dimensions (W x D x H)

  • 158 x 101 x 25 mm (6.2 x 4.0 x 1.0 in.)

Max Power Consumption

  • 2.68 W (90W PoE In, with no PD connected)
  • 68.59 W (90W PoE In, with 66 W PD connected)

Max Heat Dissipation

  • 9.112 BTU/h (90W PoE In, with no PD connected)
  • 233.206 BTU/h (90W PoE In, with 66 W PD connected)

Performance

Switching Capacity

  • 10 Gbps

Packet Forwarding Rate

  • 7.44 Mpps

MAC Address Table

  • 2k

Software Features

Advanced Features

  • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
  • PoE Auto Recovery (Ports 1-4)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping

Transfer Method

  • Store-And-Forward

Other Specifications

Certification

  • CE, FCC, RoHS

Environment

  • Operating Temperature: -30°C – 70°C (-22°F – 158°F)
  • Storage Temperature: -40°C – 70°C (-40°F – 158°F)
  • Operating Humidity: 10% – 90% RH non-condensing
  • Storage Humidity: 5% – 90% RH non-condensing

Package Contents

  • TL-SG1005P-PD
  • Rubber Foot Pads
  • Installation Guide
