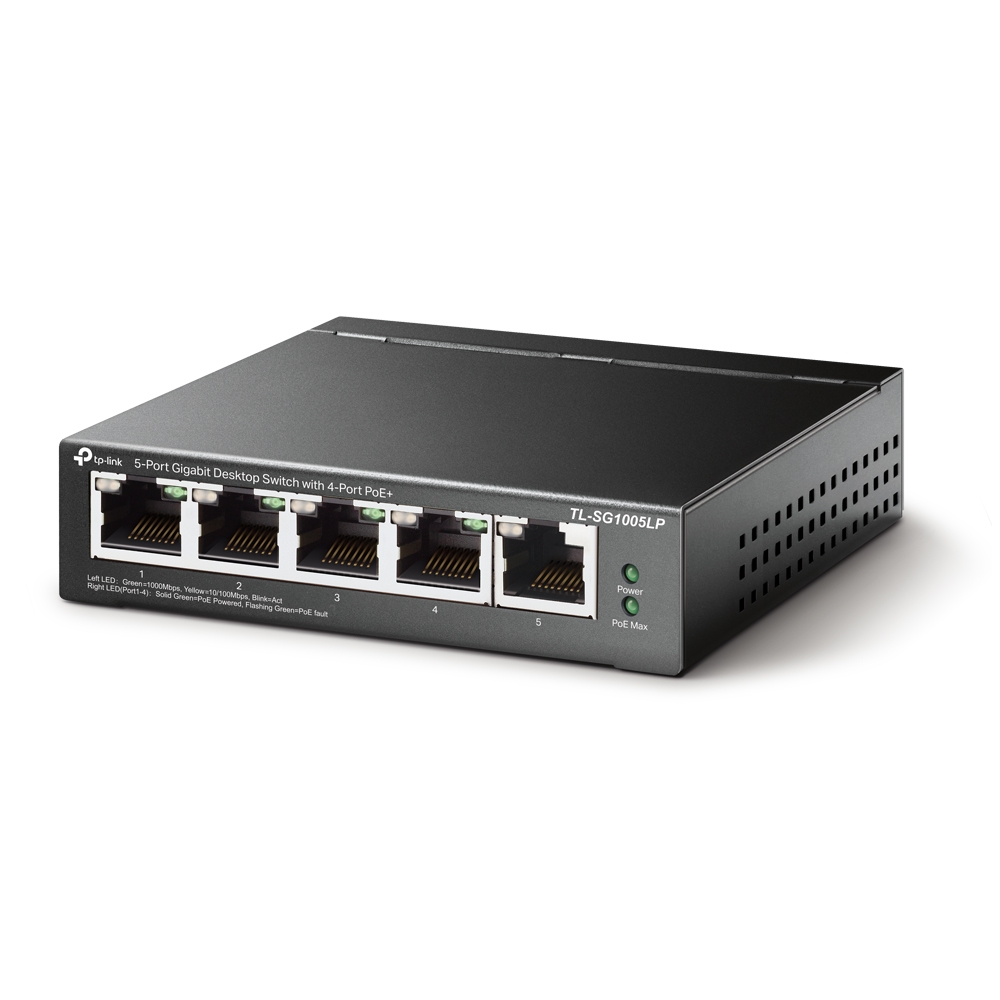

TP Link SG1005LP 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+ 40W

Technical Specifications

Hardware Features

Interface

• 5 x 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100 ohms STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100 ohms STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100 ohms STP (maximum 100m)

Fan Quantity

• Fanless

External Power Supply

• External Power Adapter (Output: 53.5 VDC / 0.81 A)

Packet Forwarding Rate

• 7.44 Mpps

PoE Ports (RJ45)

• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W

Mac Address Table

• 2K

Jumbo Frame

• 16 KB

Switching Capacity

• 10 Gbps

Dimensions (W x D x H)

• 99.8 x 98 x 25 mm (3.9 x 3.9 x 1.0 in.)

Max Power Consumption

• 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)

Max Heat Dissipation

• 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)

Software Features

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping

Transfer Method

• Store-And-Forward

Others

Certification

• FCC, CE, RoHS

Environment

• Operating Temperature: 0ºC – 40ºC (32ºF – 104ºF)
• Storage Temperature: -40ºC – 70ºC (-40ºF – 158ºF)
• Operating Humidity: 10% – 90% RH non-condensing
• Storage Humidity: 5% – 90% RH non-condensing

Package Contents

• 1 x TP-Link TL-SG1005LP
• 1 x Power Adapter
• 1 x Installation Guide
