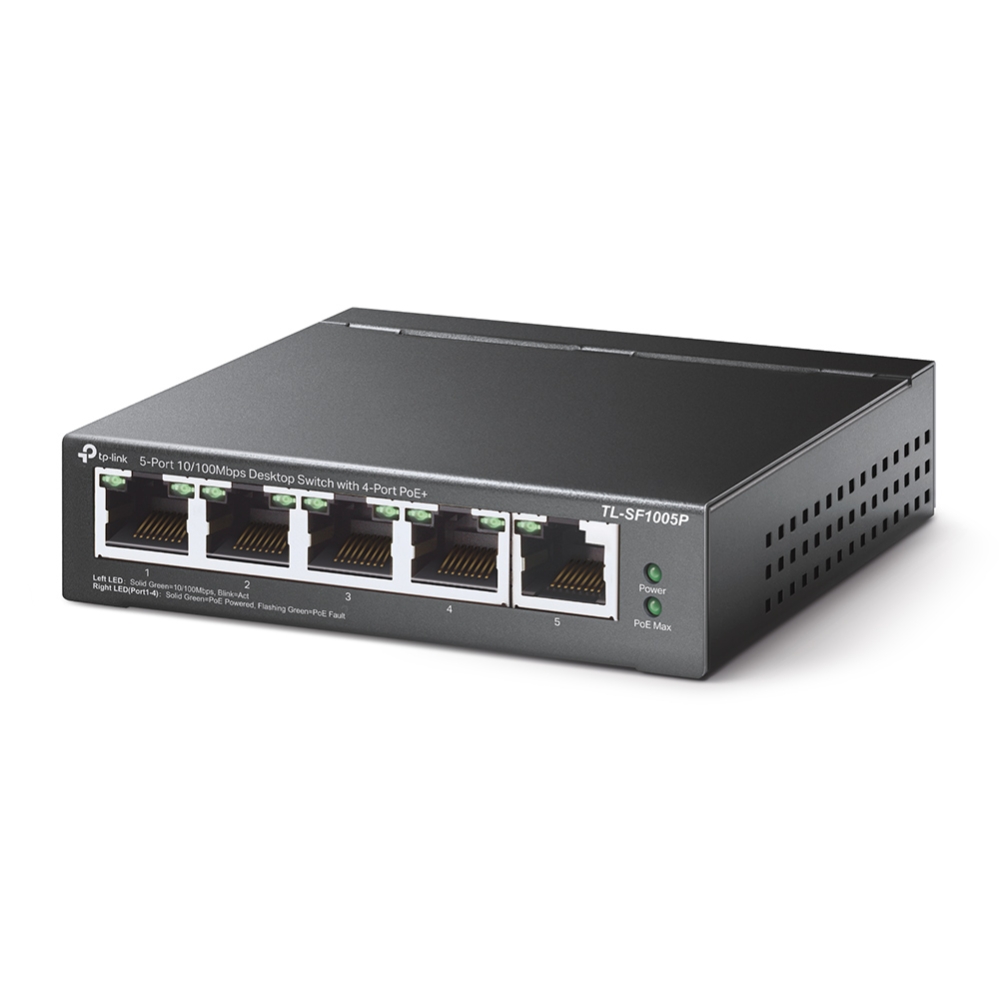

TP Link SF1005P 5-Port 10/100Mbps Desktop Network Switch with 4-Port PoE+ 67W

Technical Specifications

Hardware Specifications

Interface

• 5 10/100Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

• Fanless

External Power Supply

• External Power Adapter(Output: 48VDC / 1.25A)

PoE Ports (RJ45)

• Standard: 802.3 af compliant
• PoE Ports: Port1- Port4
• Power Supply: 58W

Mac Address Table

• 2K

Switching Capacity

• 1Gbps

Dimensions ( W x D x H )

• 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

Transmission Distance

• Store-And-Forward

Max Power Consumption

• 63.51W (max. with 58w PD connected)
• 1.70W (max. no PD connected)

Software Specifications

Transmission Method

• Store-And-Forward

Advanced Functions

• Compatible With IEEE 802.3af Compliant PDs
• Priority Function
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Others

Certification

• FCC, CE, RoHS

Package Contents

• TL-SF1005P, Power Adapter, User Guide

Consumption

• 1.70 watts (max. no PD connected)
• 63.51 watts (max. with 58w PD connected)

Environment

• Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90%RH non-condensing
• Storage Humidity: 5%~90%RH non-condensing
