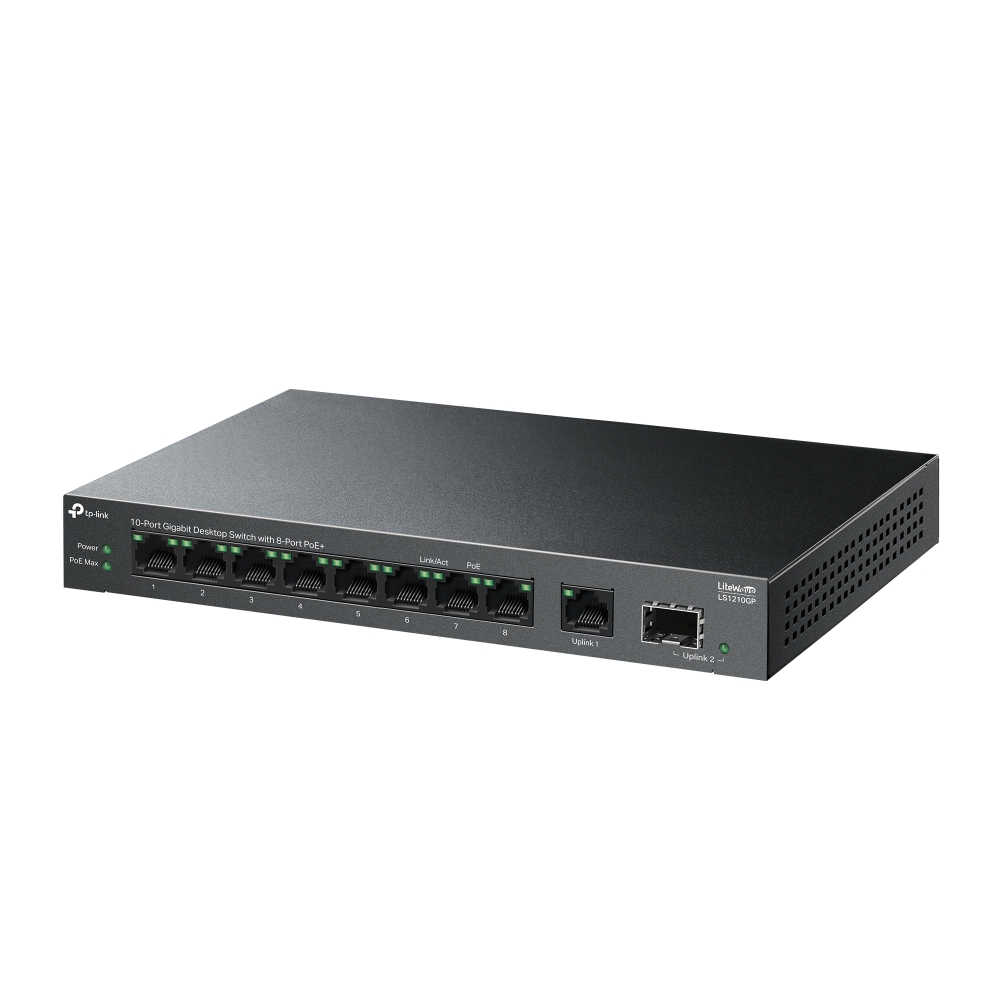

TP Link LS1210GP LiteWave 10-Port Gigabit Unmanaged Switch with 8-Port PoE+ 61W
Product Ref: LS1210GP
- Full Gigabit Ports
Nine (9) gigabit auto-negotiation RJ45 Ethernet ports and one (1) gigabit SFP port provide up to 20 Gbps switching capacity. - 61W PoE Budget
Eight (8) gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30W PoE output is supported by each PoE port. - Up to 250m PoE Transmission
PoE transmission distance reaches up to 250m with Extend Mode, perfect for surveillance camera deployment in large areas. - PoE Auto Recovery
Automatically reboots your dropped or unresponsive PoE-powered devices. - Traffic Separation for Higher Security
Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm. - Plug and Play
Simply plug and play for instant connectivity with no configuration required. - Silent Operation
Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses. - Reliable Hardware Design
Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Technical Specifications
Hardware Features
Interface
- 9 x 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output)
- 1 x Gigabit SFP Port
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100 ohms STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100 ohms STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100 ohms STP (maximum 100m)
Fan Quantity
- Fanless
Installation
- Desktop
- Wall Mounting
Physical Security Lock
- Yes
Power Supply
- External Power Adapter (Output: 53.5VDC / 1.31A)
PoE+ Ports(RJ45)
- Standard: 802.3at/802.3af compliant
- PoE Ports: Ports 1–8, up to 30 W PoE output per port
- PoE Power Budget: 61W
Dimensions (W x D x H)
- 209 x 126 x 26 mm (8.2 x 4.9 x 1.0 in.)
Max Power Consumption
- 7.3 W (220/50Hz. no PD connected)
- 76.96 W (220/50Hz. with 61 W PD connected)
Max Heat Dissipation
- 24.82 BTU/h (no PD connected)
- 261.66 BTU/h (with 61 W PD connected)
Performance
Switching Capacity
- 20 Gbps
Packet Forwarding Rate
- 14.88 Mpps
MAC Address Table
- 4K
Jumbo Frame
- 16 KB
Software Features
Advanced Features

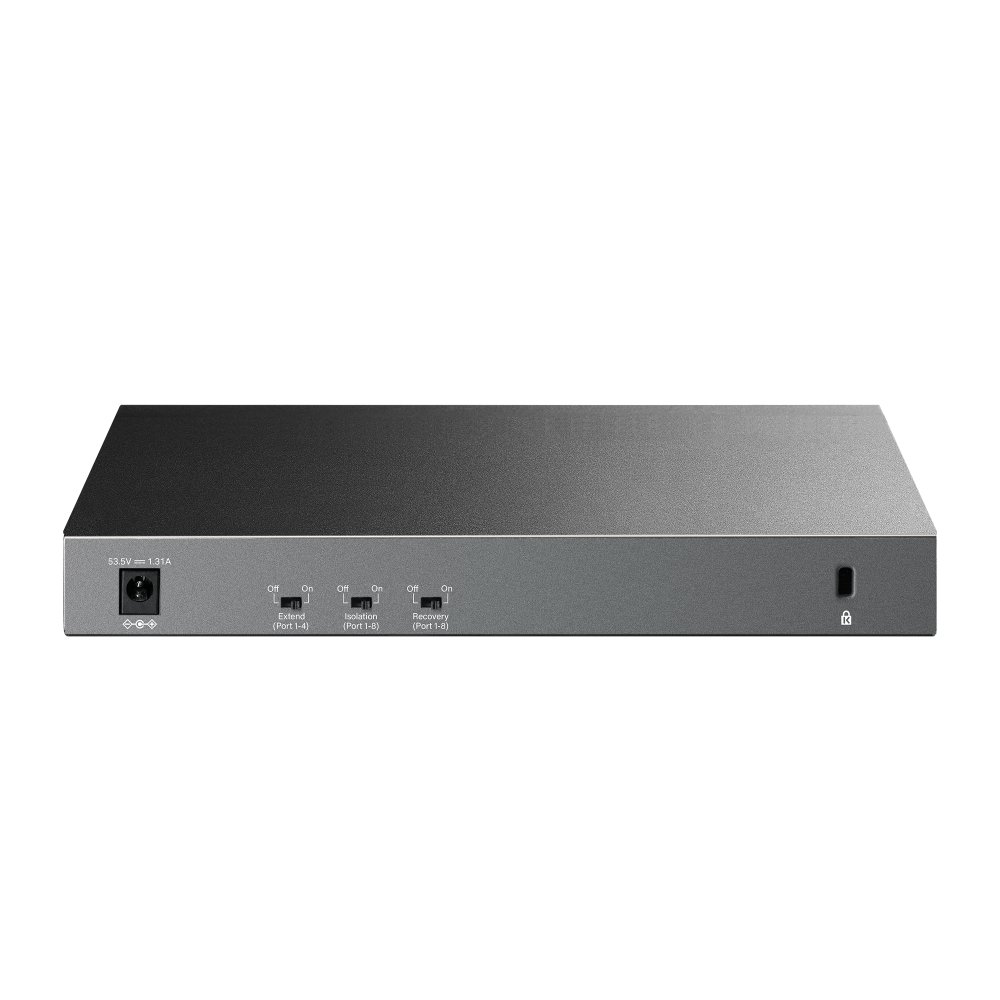

- Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
- Isolation Mode Button (Ports 1–8)
- PoE Auto Recovery Button (Ports 1–8)
- Compatible With IEEE 802.3af/at Compliant PDs
- IEEE802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Green Technology
Transmission Method
- Store-And-Forward
Other Specifications
Certification
- CE, FCC, RoHS
Environment
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
Package Contents
- 1 x LS1210GP
- 1 x Power Adapter
- 1 x Installation Guide
