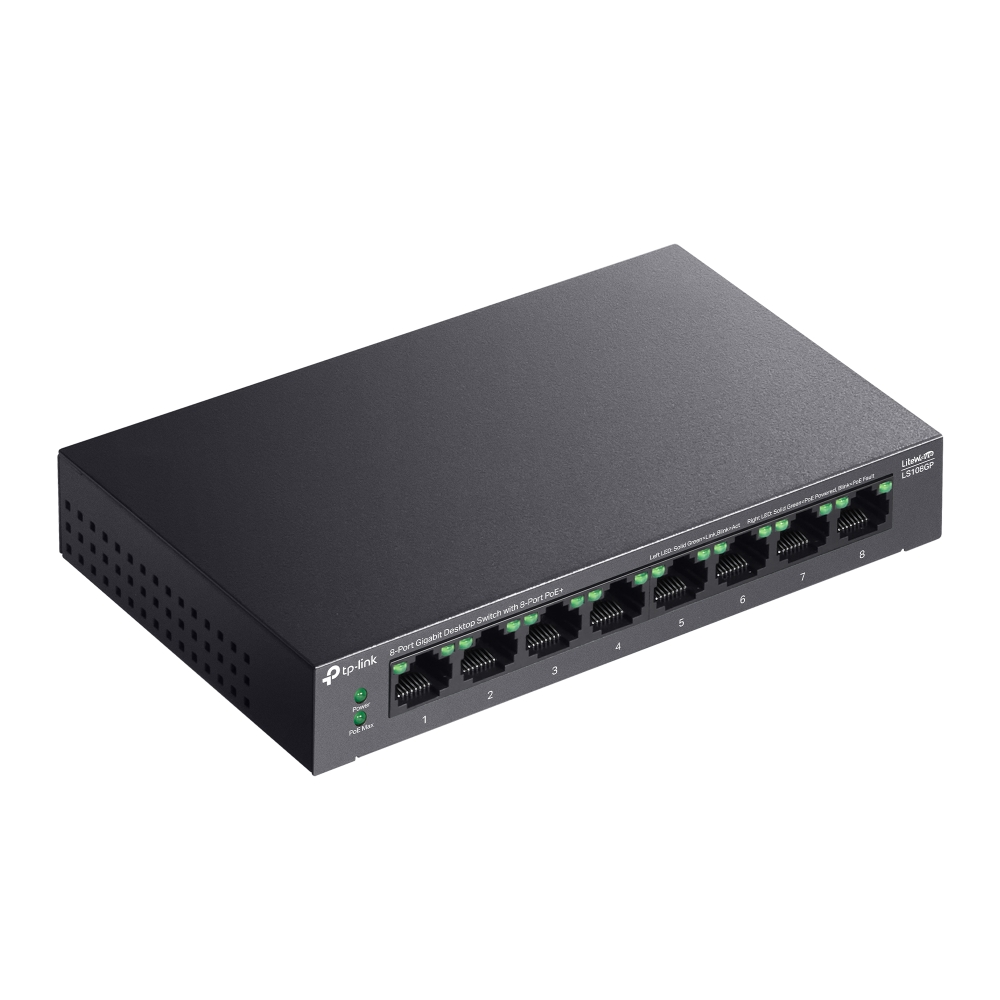

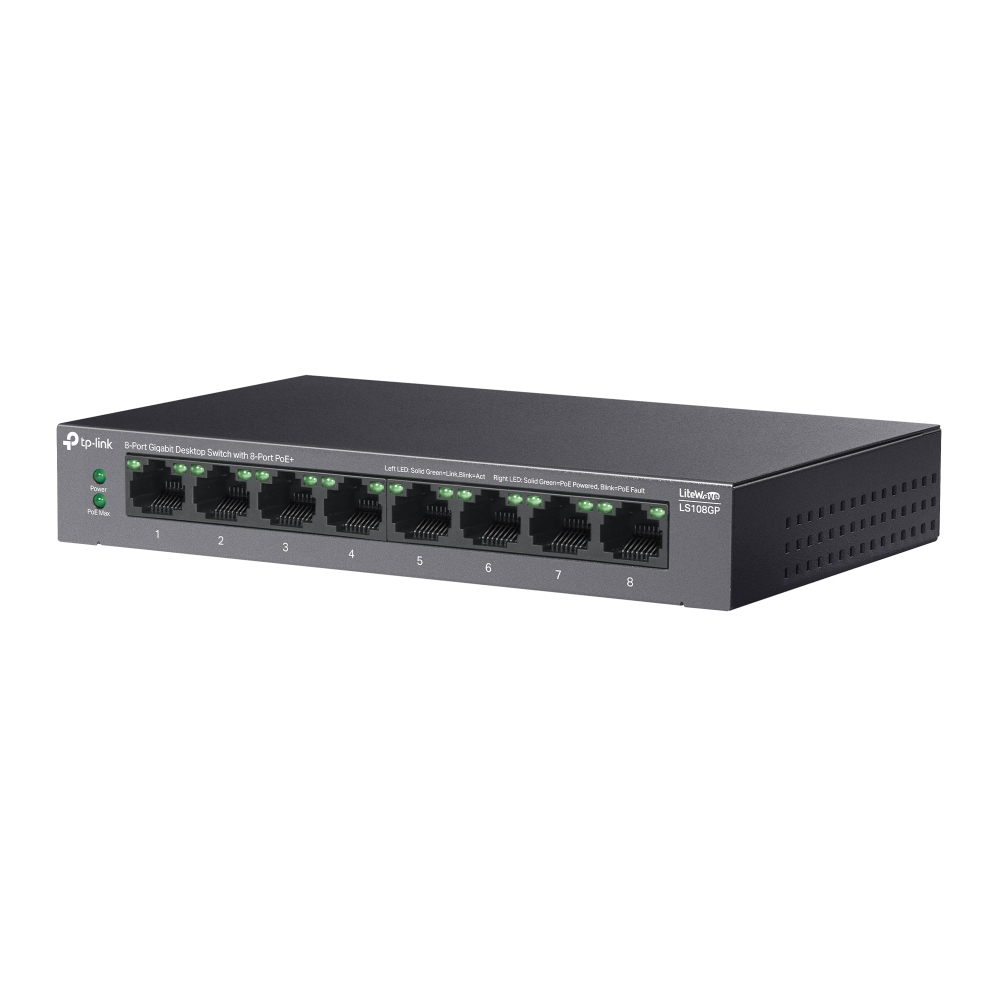

TP Link LS108GP LiteWave 8-Port Gigabit Unmanaged Switch with 8-Port PoE+ 62W
Product Ref: LS108GP
MPN: 88962
- Full Gigabit Ports
Eight (8) Gigabit auto-negotiation ports provide up to 16 Gbps switching capacity. - 62 W PoE Budget
Eight (8) Gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port. - Up to 250 m PoE Transmission*
With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas. - PoE Auto Recovery
Automatically reboots your dropped or unresponsive PoE-powered devices. - Plug and Play
Simply plug and play for instant connectivity with no configuration required. - Silent Operation
Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses. - Reliable Hardware Design
Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Technical Specifications
Hardware Features
Interface
- 8 x 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
- Fanless
Installation
- Desktop

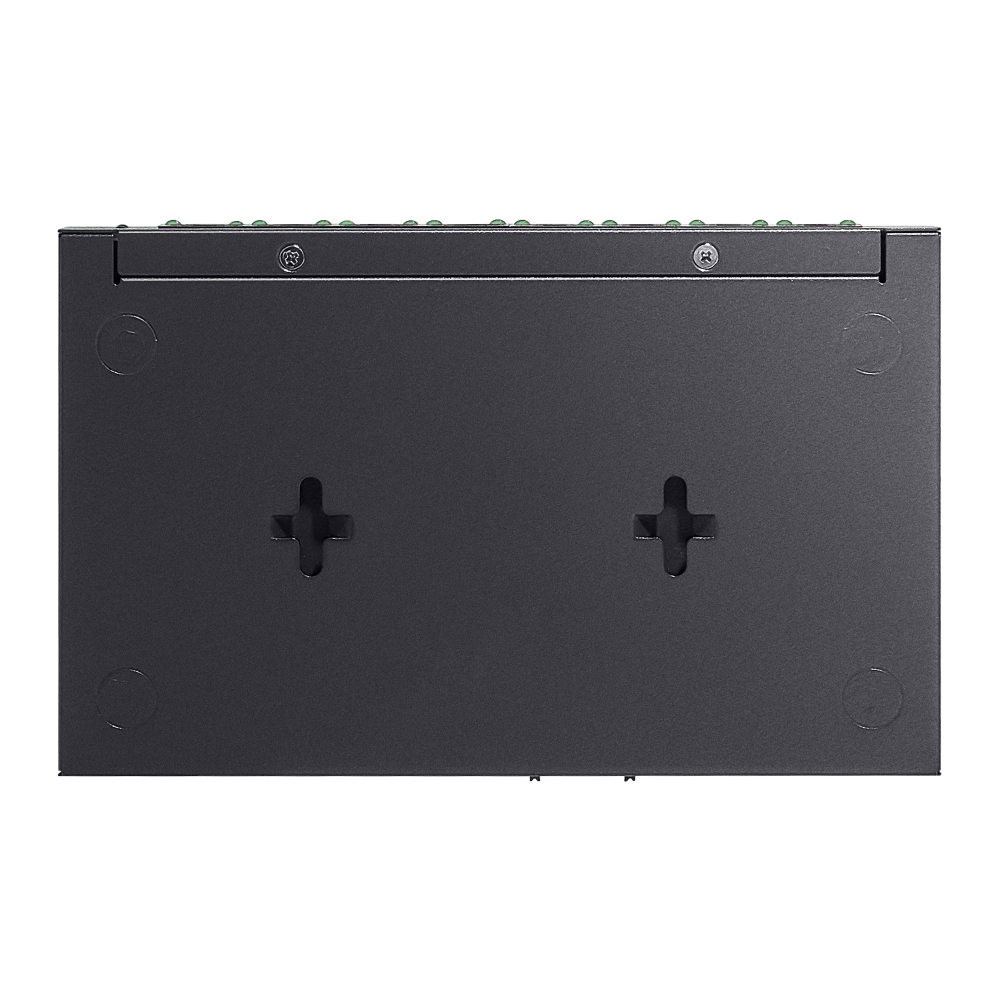

- Wall Mounting
Power Supply
- External Power Adapter (Output: 53.5 VDC / 1.31 A)
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–8, up to 30 W PoE output per port
- PoE Budget: 62 W
Dimensions (W x D x H)
- 158 x 99 x 25 mm (6.2 x 3.9 x 1.0 in.)
Max Power Consumption
- 5.53 W (220 V/50 Hz. no PD connected)
- 71.61 W (220 V/50 Hz. with 62 W PD connected)
Max Heat Dissipation
- 18.81 BTU/h (220 V/50 Hz. no PD connected)
- 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)
Performance
Switching Capacity
- 16 Gbps
Packet Forwarding Rate
- 11.9 Mpps
MAC Address Table
- 4K
Jumbo Frame
- 16 KB
Software Features
Advanced Features

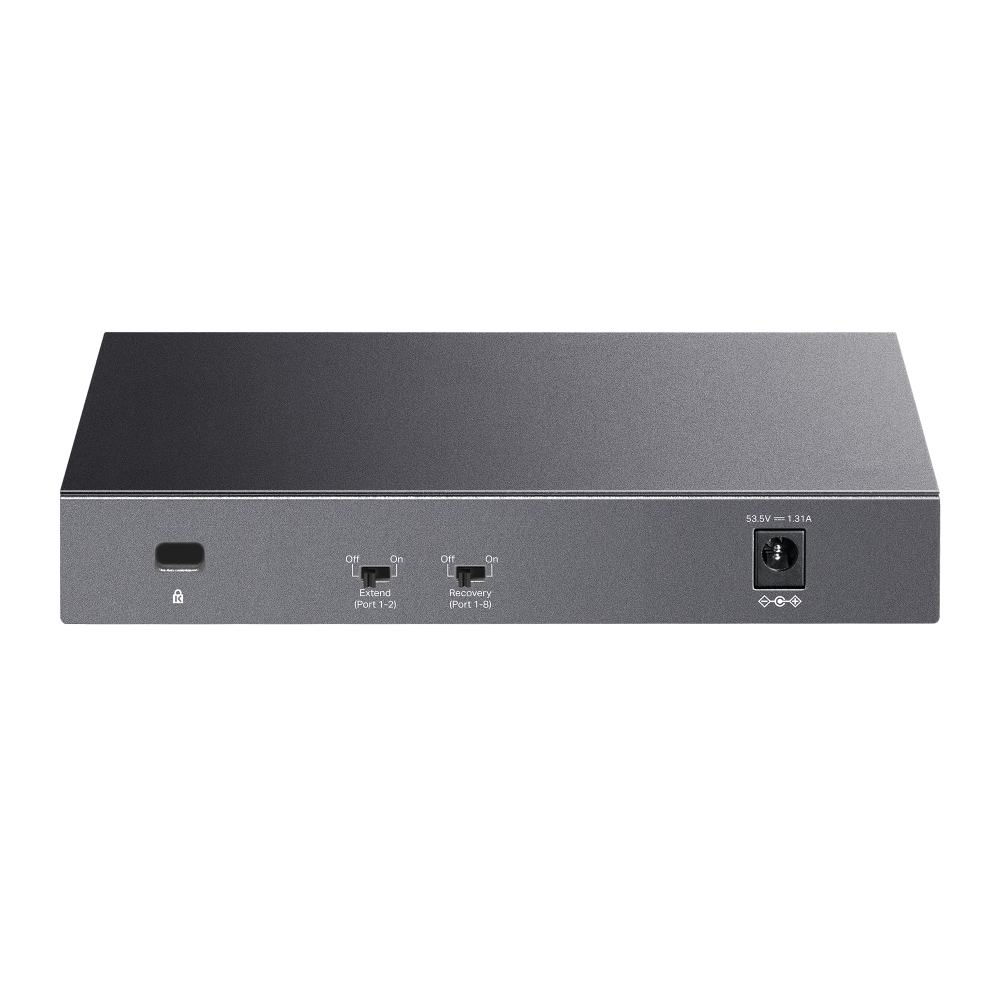

- Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
- PoE Auto Recovery Button (Ports 1-8)
- Mac Address Auto-Learning and Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Green Technology
Transfer Method
- Store-And-Forward
Other Specifications
Certification
- FCC, CE, RoHS
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing
Package Contents
- LS108GP Switch
- Power Adapter
- Installation Guide
