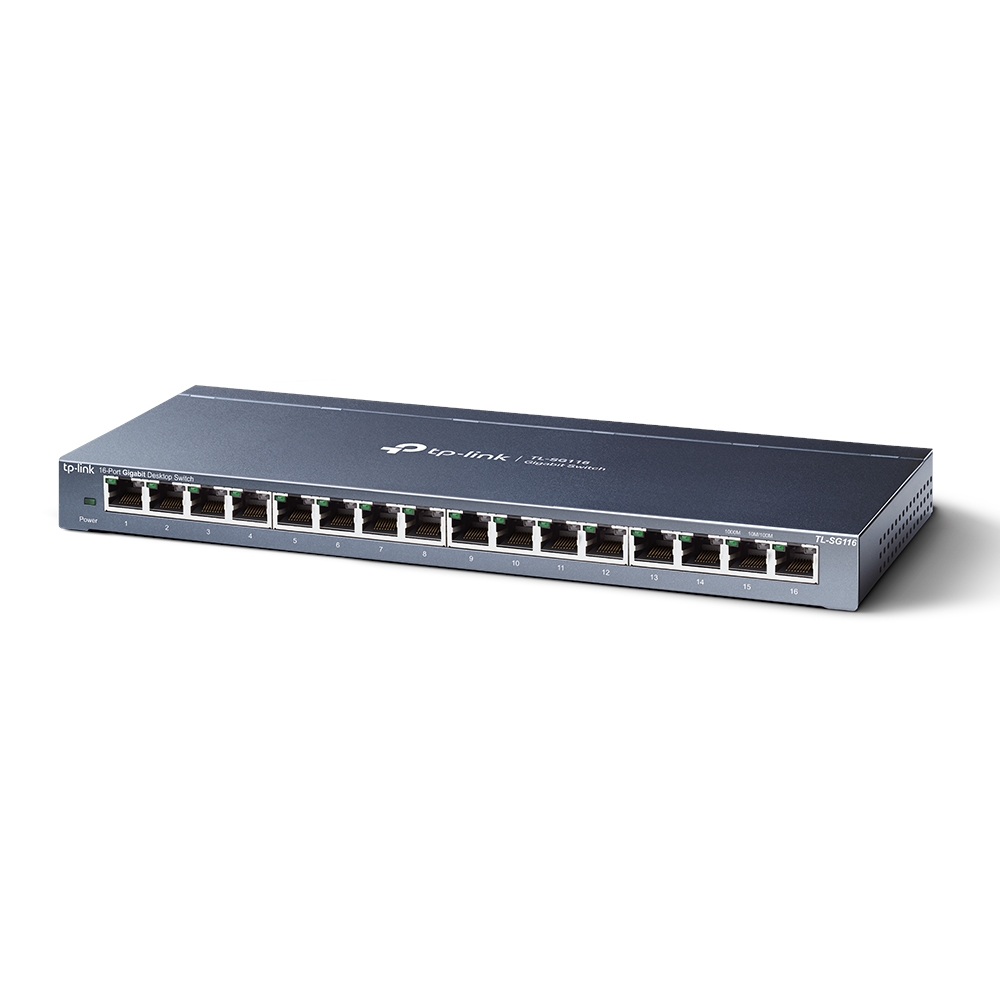

TP Link SG116 16-Port Gigabit Desktop Switch
Product Ref: TL-SG116
MPN: 67197
- Sixteen (16) 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
- Green Ethernet technology saves power consumption.
- IEEE 802.3x flow control provides reliable data transfer.
- Steel housing, desktop or wall-mounting design.
- Support 802.1p/DSCP QoS and IGMP Snooping function.
- Plug and play, with no configuration needed.
Technical Specifications
Standards and Protocols
- IEEE 802.3i/802.3u/802.3ab/802.3x/802.1p
Interface
- 16 x 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
- Fanless
Physical Security Lock
- Yes
Power Consumption
- Maximum: 10.0W
External Power Supply
- External Power Adapter (Output: 12VDC / 1.0A)
LED Indicator
- System Power
- Link/Act indicators per port built into each RJ45 port
Dimensions ( W x D x H )
- 286 x 111.7 x 25.4 mm (11.26 x 4.4 x 1.0 in.)
Max Power Consumption
- 10W (220V/50Hz)
Max Heat Dissipation
- 34.12BTU/h
PERFORMANCE
Packet Forwarding Rate
- 23.8Mpps
MAC Address Table
- 8K
Packet Buffer Memory
- 4.1Mb
Jumbo Frame
- 10KB
SOFTWARE FEATURES
Advanced Features
- Green Technology
- 802.3X Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
Transfer Method
- Store and Forward
OTHERS
Certification
- CE
- FCC
- RoHS
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90%, non-condensing
- Storage Humidity: 5%~90% non-condensing
Package Contents
- 1 x TP-Link TL-SG116
- 1 x Power adapter
- 1 x Installation guide
- 1 x Set of rubber feet
