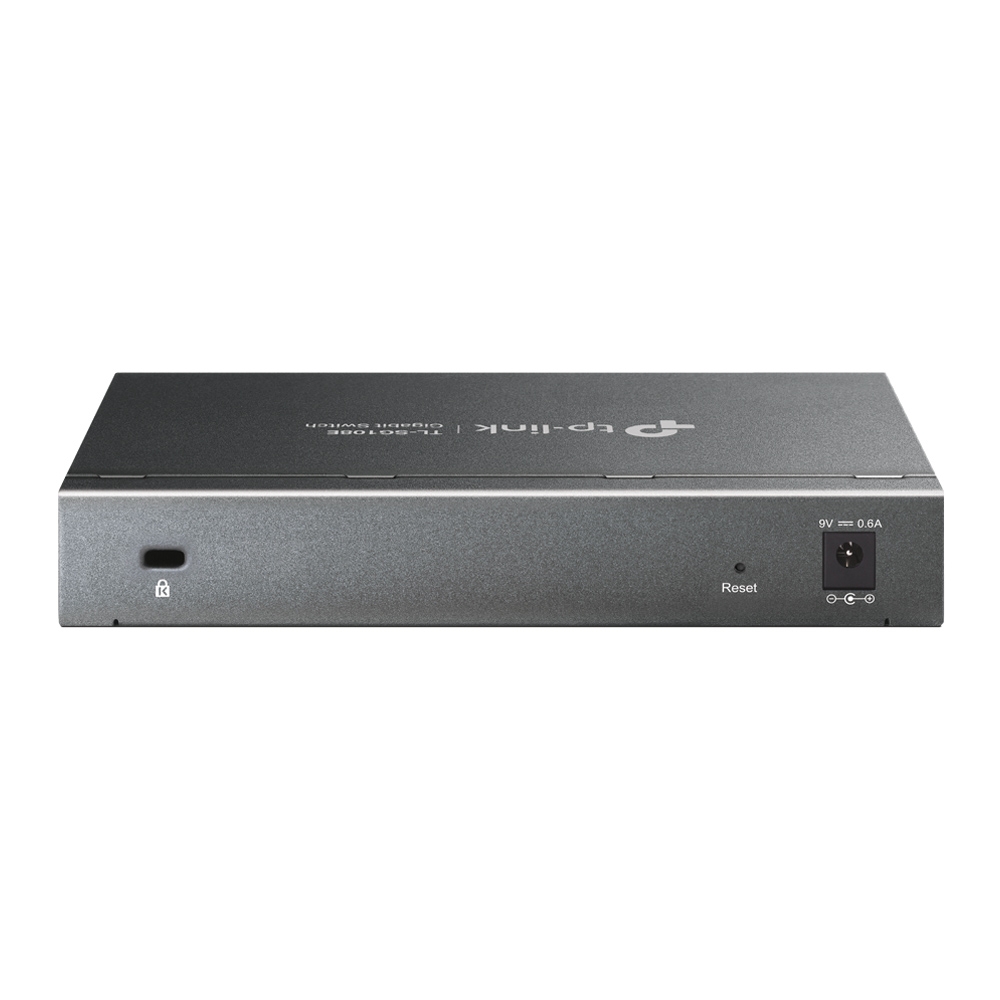

TP Link SG108E 8-Port Gigabit Easy Smart Switch
Product Ref: TL-SG108E
- Eight (8) 10/100/1000 Gigabit Ethernet RJ45 ports.
- Provides network monitoring, traffic prioritisation and VLAN features.
- Innovative energy-efficient technology reduces power output by up to 80%.
- Simple network set-up on top of plug-and-play connectivity.
- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility.
Technical Specifications
Standards and Protocols
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
- 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
- Fanless
Dimensions
- (W X D X H) 6.2*4.0*1.0 in. (158*101*25 mm)
Power Supply
- 100-240VAC, 50/60Hz
Performance
- MAC Address Table 8K
- Packet Buffer Memory 2Mb
- Packet Forwarding Rate 11.9Mpps
- Jumbo Frame 16KB
Software Features
- Quality of Service Support Port Based/802.1p Based priority
- Support 4 priority queues
- Rate Limit
- Storm Control
- L2 Features IGMP Snooping
- Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
- Transmission Method Store-And-Forward
Certification
- FCC, CE, RoHS
Package Contents
- TP-LINK TL-SG108E Switch
- Power Cord
- Installation Guide
- Resource CD
- Rubber Feet
System Requirements
- Microsoft Windows XP, Vista Windows 7 or Windows 8, MAC OS, etWare, UNIX or Linux.
Environment
- Operating Temperature: 0C~40C (32F~104F)
- Storage Temperature: -40C~70C (-40~158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
