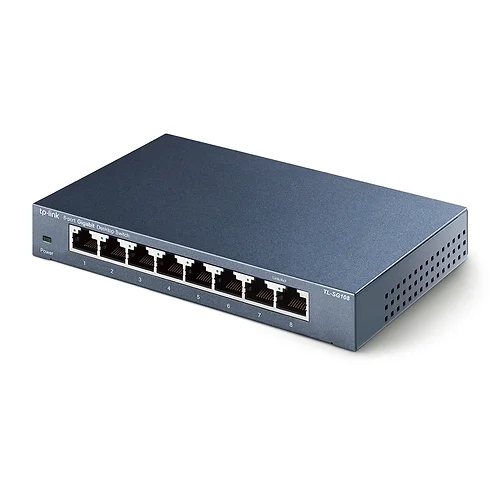

TP Link SG108 8-Port Gigabit Desktop Network Switch
Product Ref: TL-SG108
- Eight (8) 10/100/1000 Gigabit RJ45 Ports with Auto-negotiation.
- Innovative energy-efficient technology saves power up to 72%.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Steel design, desktop or wall-mounting design.
- Supports QoS (IEEE 802.1p) function.
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
- 9K Jumbo frame improves performance of large data transfers.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Supports MAC address auto-learning and auto-aging.
- Fanless design ensures quiet operation.
- Plug and Play design simplifies installation.
Technical Specifications
Hardware Specification
- Standards and Protocols IEEE 802.3/802.3u/ 802.3ab/ 802.3x
- CSMA/CD
- Interface 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
- External Power Supply 100-240VAC, 50/60Hz
- Dimensions (W X D X H) 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
- Fan Quantity Fanless
- LED Indicator System Power
- Link, Speed and activity indicators per port built into each RJ-45 port
Software Specification
- Advanced Features Green Technology,saving power up to 72%
- 802.3X Flow Control
- Supports QoS (IEEE802.1P)
- Transfer Method Store and Forward
Other
- Certification CE, FCC ,RoHS
- Package Contents
- Tp-Link TL-SG108 8-Port Desktop Gigabit Switch
- Power Adapter
- User Guide
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Mac OS, NetWare, UNIX or Linux.
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90%, non-condensing
- Storage Humidity: 5%~90% non-condensing
