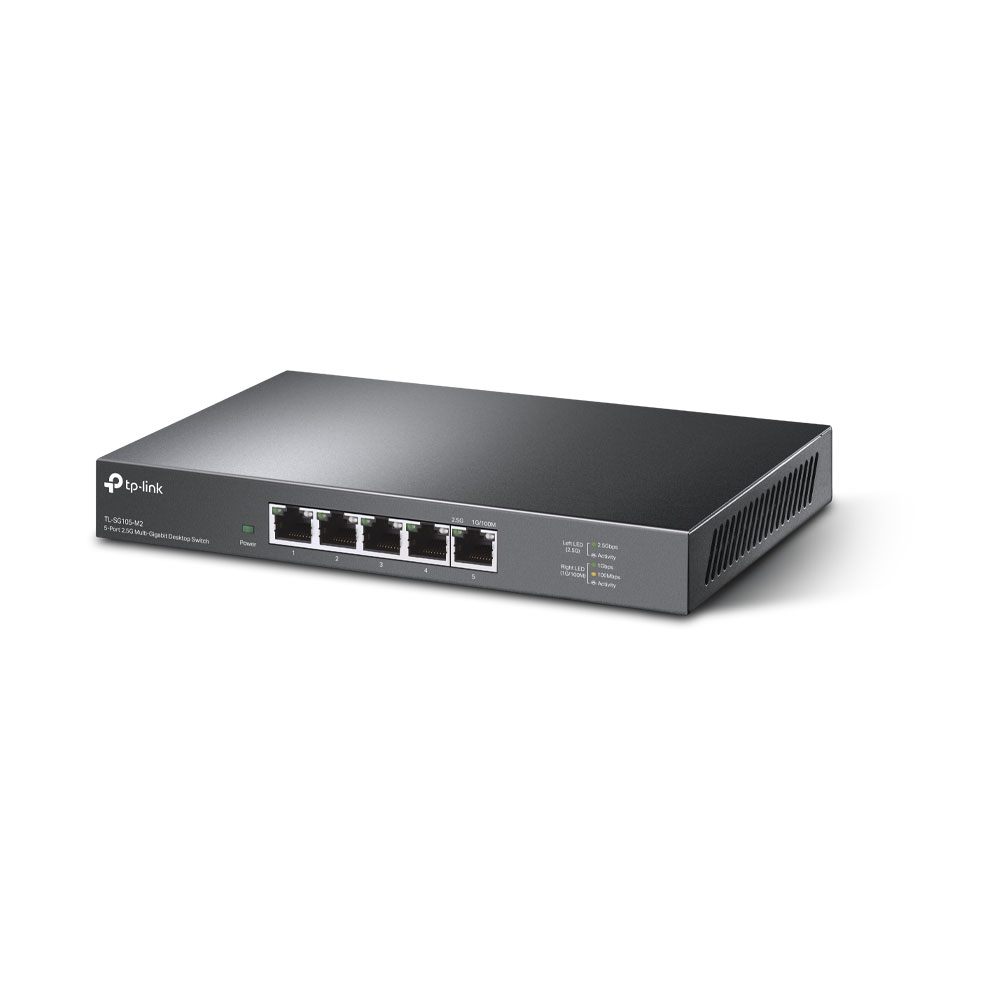

TP Link SG105-M2 5-Port 2.5G Desktop Switch
Product Ref: TL-SG105-M2
- Five (5) 2.5 Gbps Ports: 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.
- Super-Fast Connections: Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Ideal for Various Scenarios: Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
- Hassle-Free Cabling: Instantly upgrade to 2.5 Gbps without the need to upgrade to CAT6 wiring, reducing wiring costs and hassle.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play: Allows for easy deployment without the need for a technician.
- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Technical Specifications
Interface
- 5 x 100Mbps/1G/2.5G
- Auto-Negotiation, Auto MDI/MDI-X
Performance
Switching Capacity
- 25 Gbps
Packet Forwarding Rate
- 18.6 Mpps
MAC Address Table
- 16K
Packet Buffer
- 1.5 Mbit
Transfer Method
- Store and Forward
Jumbo Frame
- 10K
Advance Features
- 802.3x flow control
- 802.1p/DSCP QoS
Physical & Environmet
Power Supply
- 12 V/1 A Adapter
Max Power Consumption
- 12.11 W
Max Heat Dissipation
- 41.32 BTU/hr
Dimensions (W x D x H)
- 209×126×26 mm
Fan Quantity
- Fanless
Installation
- Desktop/Wall Mounting
Operating Temperature
- 0°C to 40°C (32 °F to 104 °F)
Storage Temperature
- -40 °C to 70 °C (-40 °F to 158 °F)
Operation Humidity
- 10% to 90% RH, non-condensing
Storage Humidity
- 5% to 90% RH, non-condensing
Certification
- CE, FCC, RoHS
