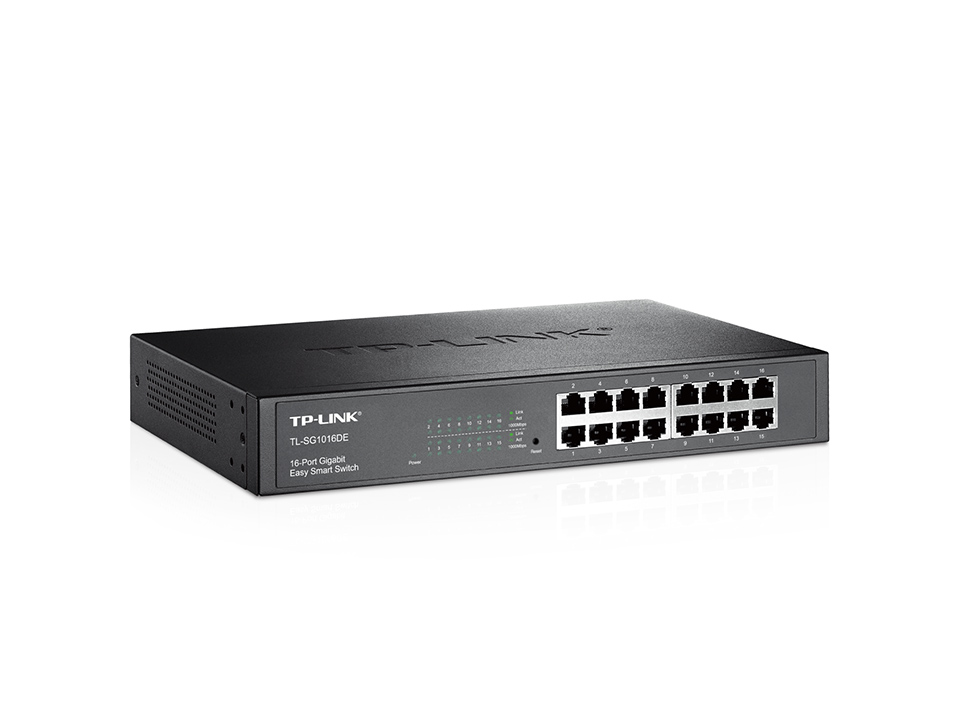

TP Link SG1016DE 16-Port Gigabit Easy Smart Switch

Product Ref: TL-SG1016DE

MPN: 64210

  • Sixteen (16) 10/100/1000Mbps ports provide instant large file transfers.
  • Innovative energy-efficient technology reduces power consumption by up to 40%.
  • IEEE 802.3x flow control provides reliable data transfers.
  • 10K Jumbo frame improves performance of large data transfers.
  • Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics.
  • Port and tag-based QoS enable smooth latency-sensitive traffic.
  • Abundant VLAN features improve network security via traffic segmentation.
  • IGMP Snooping optimizes multicast applications.

Technical Specifications

Hardware Features

  • Standards and Protocols
    • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
  • Interface
    • 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
    • Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m EIA/TIA-568 100Ù STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m)
  • Dimensions (W X D X H)
    • 11.6*7.1*1.7 in. (294*180*44 mm)
  • Fan Quantity
    • Fanless
  • Power Supply
    • 100-240VAC, 50/60Hz

Performance

  • Switching Capacity
    • 32Gbps
  • MAC Address Table
    • 8K
  • Packet Buffer Memory
    • 512KB
  • Packet Forwarding Rate
    • 23.8Mpps
  • Jumbo Frame
    • 10240Bytes

Software Features

  • Quality of Service Support Port Based/802.1p Based priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
  • L2 Features IGMP Snooping
  • Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN
  • Transmission Method Store-And-Forward

Certification

  • FCC, CE, RoHS

Package Contents

  • TP-LINK TL-SG1016DE Jetstream Switch
  • Power Cord
  • Installation Guide
  • Resource CD
  • Rackmount Kit
  • Rubber Feet

System Requirements

  • Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.

Environment

  • Operating Temperature: 0C~40C (32F~104F)
  • Storage Temperature: -40C~70C (-40F~158F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
