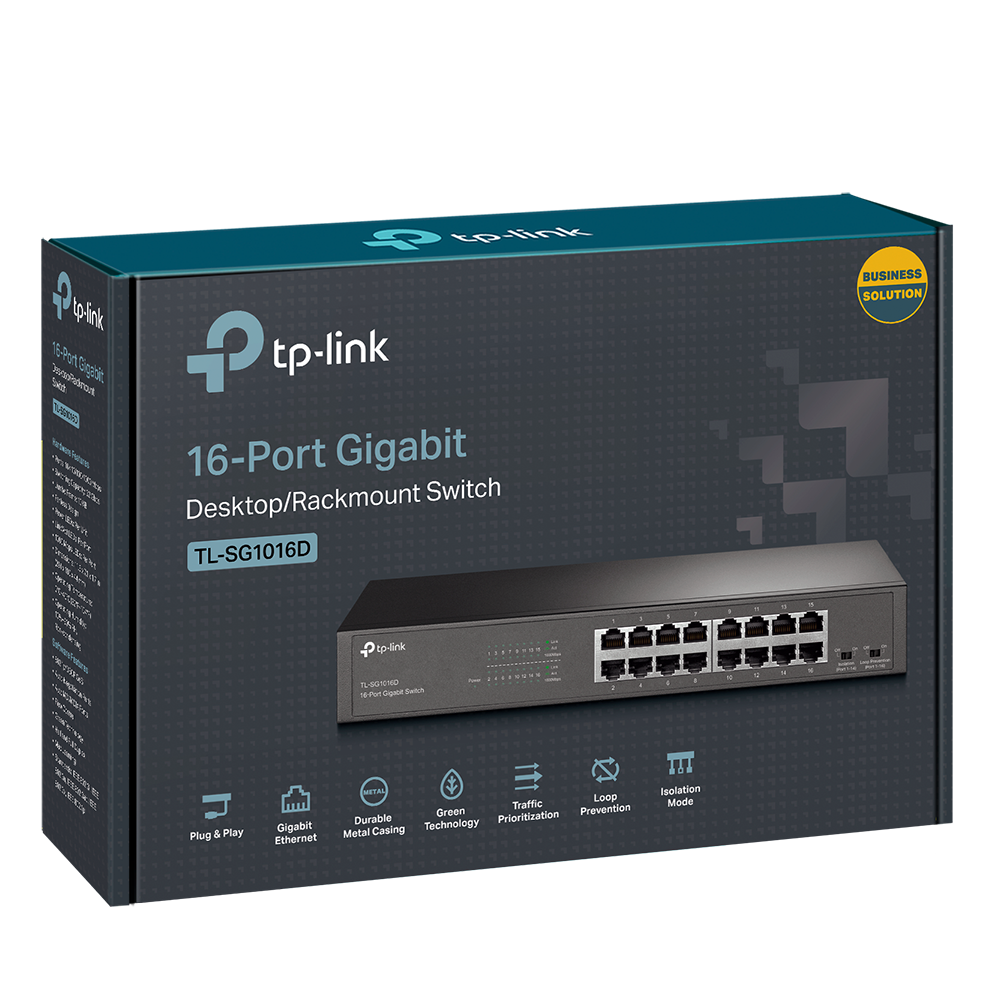

TP Link SG1016D 16-Port Gigabit Desktop Rackmount Network Switch
Product Ref: TL-SG1016D
MPN: 64143
- Innovative energy-efficient technology saves power up to 40%.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
- 32Gbps Switching Capacity.
- 10K Jumbo frame improves performance of large data transfers.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Supports MAC address auto-learning and auto-aging.
- Store and forward Switching scheme.
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
- Desktop and Rack-mountable design.
- Plug and Play design simplifies installation.
Technical Specifications
Standards and Protocols
- IEEE802.3, 802.3u, 802.3ab, 802.3x
- CSMA/CD, TCP/IP
Basic Function
- Wire-speed Performance
- MAC Address Auto-Learning and Auto-aging
- IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Switch capacity
- 32Gbps
MAC Address Table
- 8k
Forwarding Rate
- 10BASE-T: 14880pps/port
- 100BASE-TX: 148800pps/port
- 1000BASE-T: 1488000pps/port
Transmission Method
- Store-and-Forward
Ports
- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators
- Power, Link/Act, 1000Mbps
Safety & Emission
- FCC, CE
Dimensions (W*D*H)
- 11.6*7.1*1.7 in. (294*180*44 mm)
Environment
- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Power
- 100-240VAC, 50/60Hz
