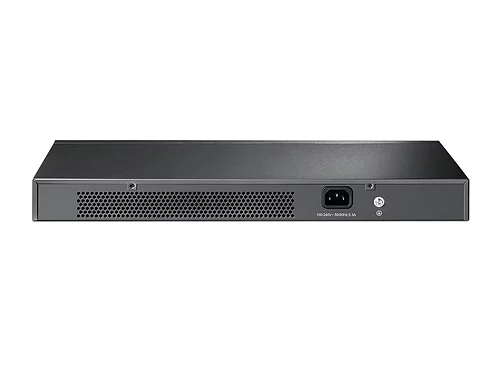

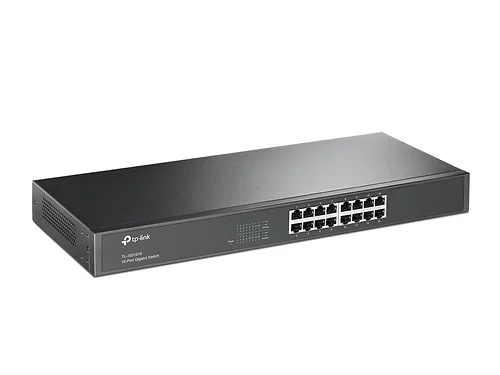

TP Link SG1016 16-Port Gigabit Rackmount Switch
Product Ref: TL-SG1016
- 16 10/100/1000M RJ45 ports.
- Supports MAC address self-learning and auto MDI/MDIX.
- Standard 19-inch rack-mountable steel case.
- All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps.
- Supports Auto-MDI/MDIX function.
- Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode.
- Store and forward Switching scheme.
Technical Specifications
Standards and Protocols
- IEEE802.3, 802.3u, 802.3ab, 802.3x
- CSMA/CD, TCP/IP
Basic Function
- Wire-speed Performance
- MAC Address Auto-Learning and Auto-aging
- IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
- 32Gbps
MAC Address Table
- 8k
Forwarding Rate
- 10BASE-T: 14880pps/port
- 100BASE-TX: 148800pps/port
- 1000BASE-T: 1488000pps/port
Transmission Method
- Store-and-Forward
Ports
- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators
- Power, Link/Act
Safety & Emission
- FCC, CE
Dimensions (W*D*H)
- 17.3*7.1*1.7 in. (440*180*44 mm)
Environment
- Operating Temperature:
- 0°C~40°C (32°F~104°F)
- Storage Temperature:
- -40°C~70°C (-40°F~158°F)
- Operating Humidity:
- 10%~90% non-condensing
- Storage Humidity:
- 5%~90% non-condensing
Power
- 100-240VAC, 50/60Hz
