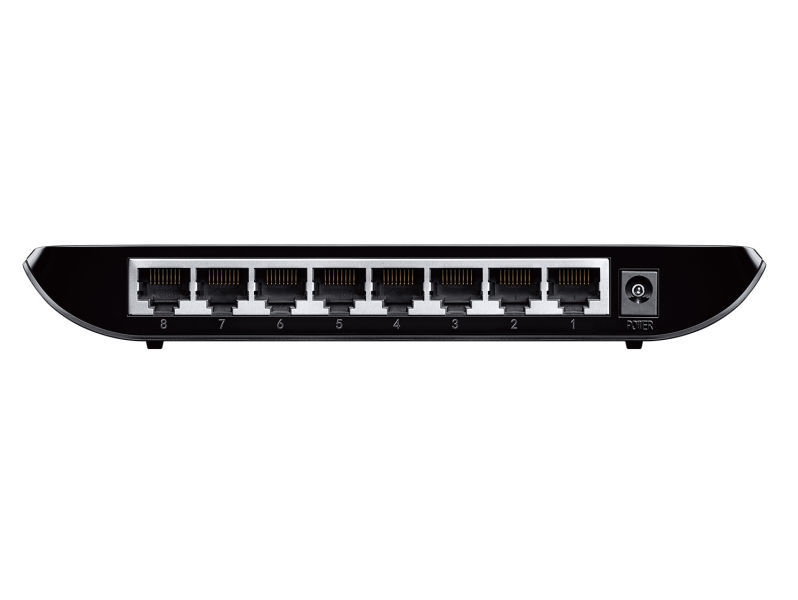

TP Link SG1008D 8-Port Gigabit Desktop Network Switch
Product Ref: TL-SG1008D
MPN: 64157
- 8-Ports of 10/100/1000 Gigabit connectivity.
- Adopts Green Ethernet technology, saving power and cost.
- Supports IEEE 802.3x flow control for Full-Duplex mode and backpressure for Half-Duplex mode.
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
- Supports MAC address auto-learning and auto-aging.
- Plastic case, desktop or wall-mounting design.
- External power adapter supply.
Technical Specifications
Hardware Features
- Standards and Protocols
- IEEE 802.3i/802.3u/ 802.3ab/802.3x
- Interface
- 8 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Fan Quantity
- Fanless
- Power Consumption
- Maximum: 4.63W (220V/50Hz)
- External Power Supply
- External Power Adapter (Output: 5VDC / 0.6A)
- Jumbo Frame
- 15 KB
- Switching Capacity
- 16 Gbps
- Dimensions ( W x D x H )
- 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)
Software Features
- Transfer Method
- Store and Forward
- MAC Address Table
- 4K
- Advanced Functions
- Green Technology, saving power up to 80%
- 802.3X Flow Control, Back Pressure
Others
- Certification
- FCC, CE, RoHs
- Package Contents
- 8-Port Gigabit Desktop Switch TL-SG1008D
- Power Adapter
- Installation Guide
- Environment
- Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?);
- Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
