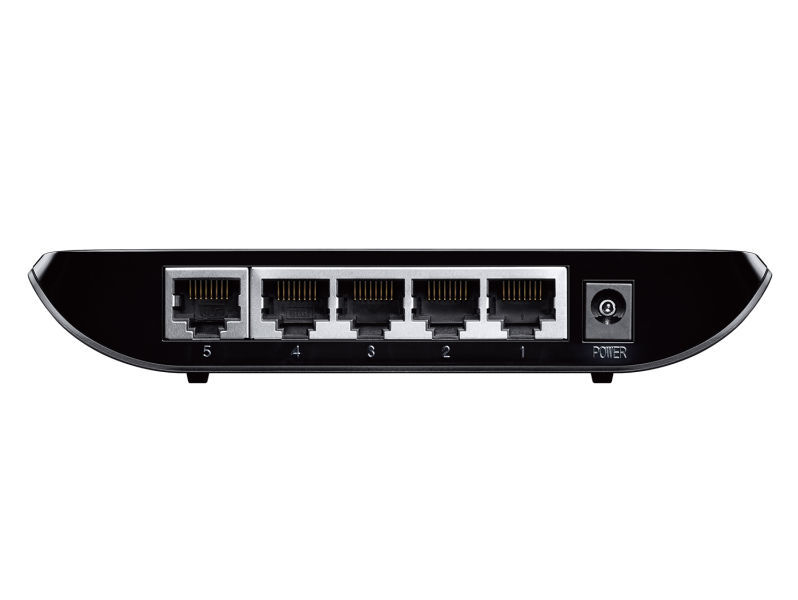

TP Link SG1005D 5-Port Gigabit Desktop Switch
Product Ref: TL-SG1005D
MPN: 63936
- Five (5) 10/100/1000 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves the power up to 85%
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wall-mounting design
- Plug and play, no configuration required
Technical Specifications
Hardware Features
Interface
- 5 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
External Power Supply
- 100~240VAC, 50/60Hz
Fan Quantity
- Fanless
Dimensions (W X D X H)
- 5.5 x 3.5 x 0.9 in. (140*88*23 mm)
Power Consumption
- Maximum: 3W (220V/50Hz)
Software Features
Transmission Method
- Store and Forward
Advanced Functions
- Green Technology, saving power up to 85%
- 802.3X Flow Control, Back Pressure
Other
Certification
- FCC, CE, RoHs
Package Contents
- 5-Port Gigabit Desktop Switch TL-SG1005D
- Power Adapter
- Installation Guide
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8/7, MAC OS, NetWare, UNIX or Linux.
Environment
Operating Temperature
- 0C~40C (32F~104F)
- Storage Temperature
- -40C~70C (-40F~158F)
- Operating Humidity
- 10%~90% non-condensing
- Storage Humidity
- 5%~90% non-condensing
Warranty
- 3-years
