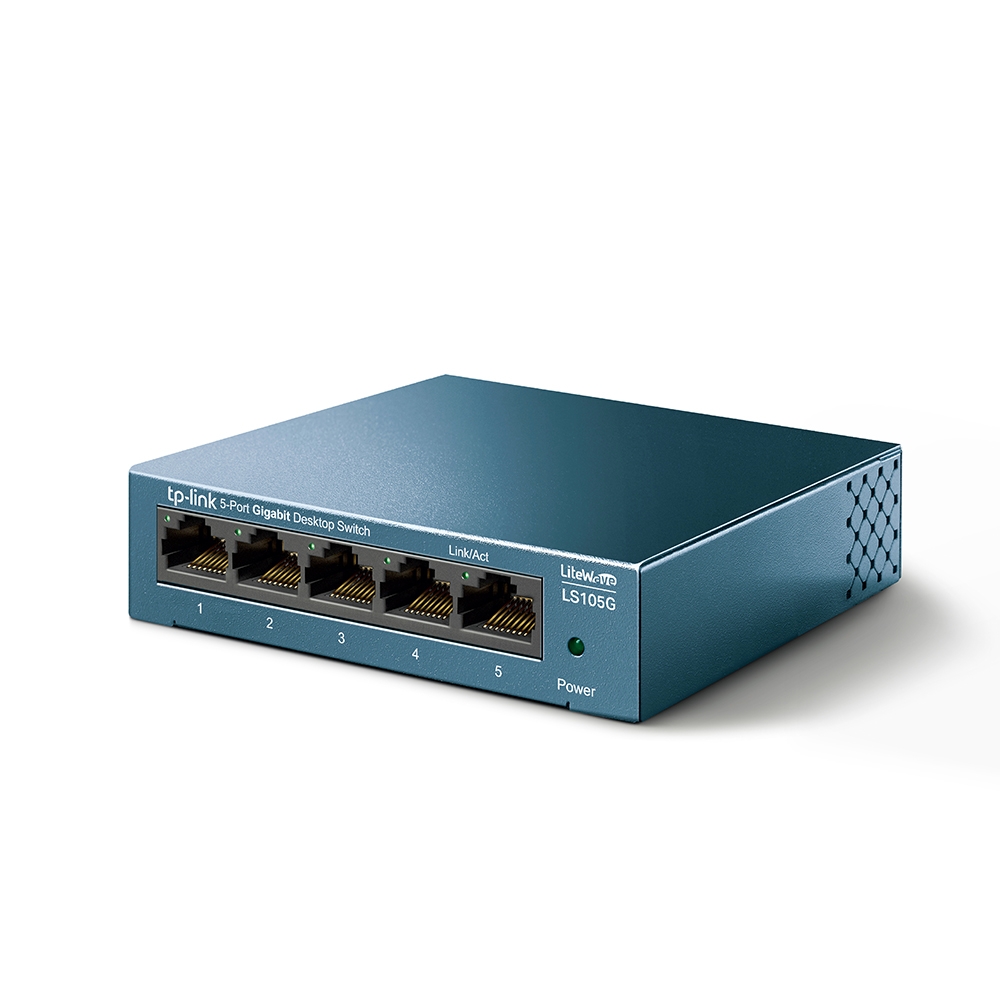

TP Link LS105G LiteWave 5-Port Gigabit Unmanaged Network Switch
Product Ref: LS105G

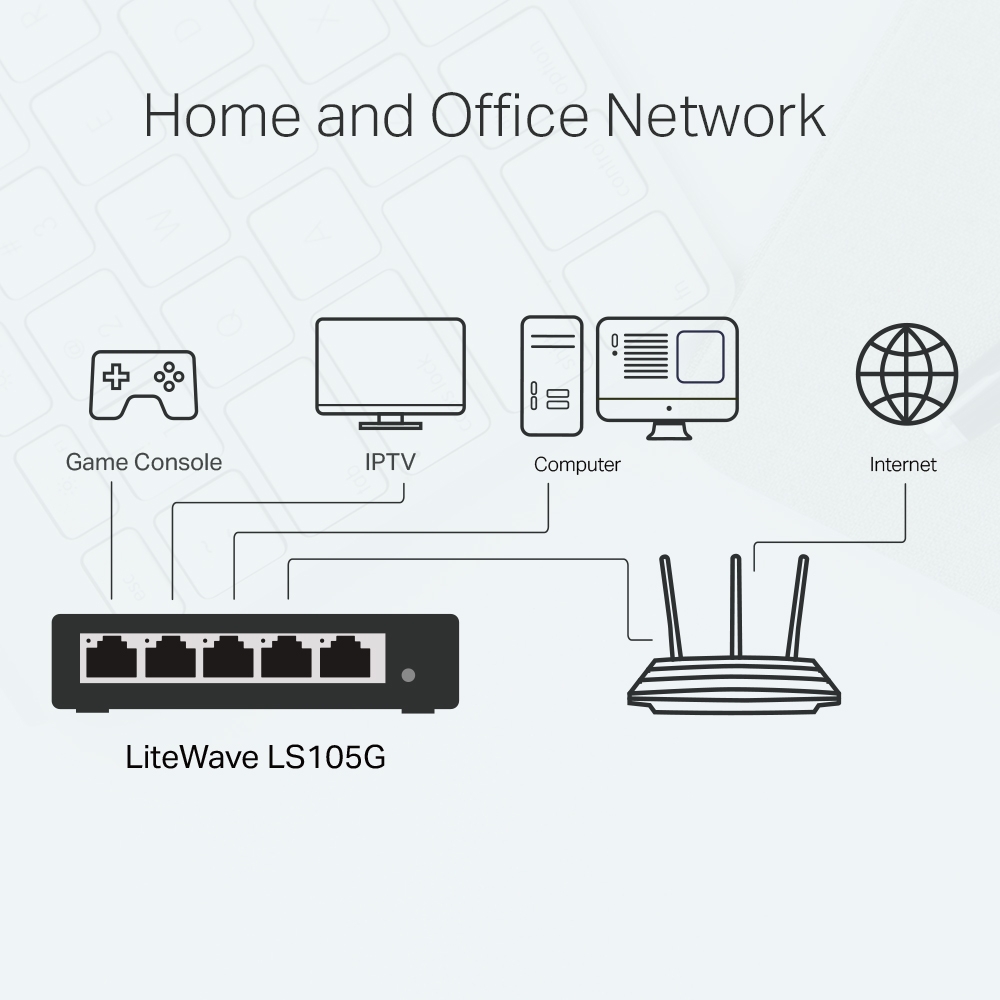

- Ideal for basic networks.
- Plug and play, no configuration needed.
- 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX.

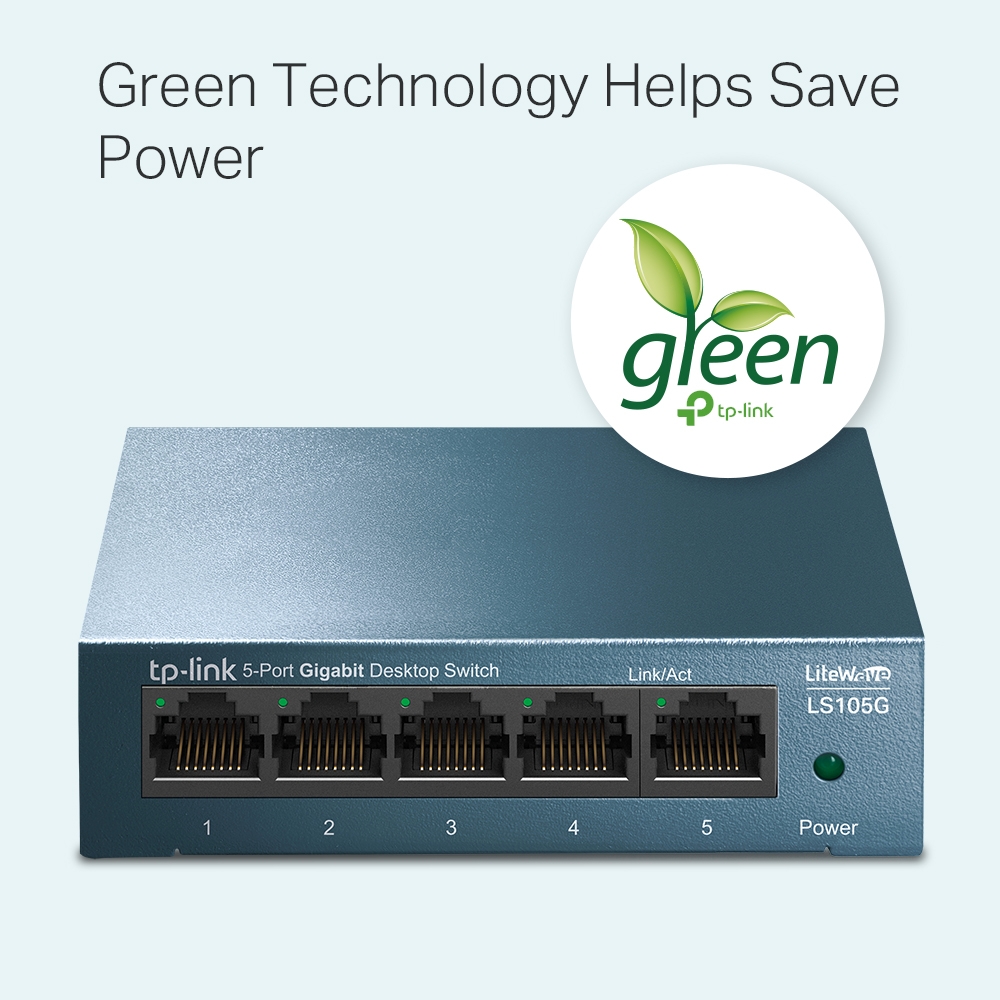

- Green Ethernet technology saves power.
- IEEE 802.3x flow control provides reliable data transfer.
- Compact desktop or wall-mountable design.
- Fanless design ensures quiet operation.
- Support 802.1p/DSCP QoS function.
Technical Specifications
Standards
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Forwarding Mode
- Store and forward
Interface
- 5 x 10/100/1000Mbps RJ45 ports
Fan quantity
- Fanless
Shell material
- Metal
Connector Type
- Plastic
Switching Capacity
- 10Gbps
MAC Address Table
- 2K
Packet Buffer Memory
- 1 Mb
Packet Forwarding Rate
- 7.4Mpps
Jumbo Frame
- 16KB
Advanced Features
- Green Technology
- 802.3x Flow Control
- 802.1p/DSCP QoS
Max Power Consumption
- 2.776W
Max Heat Dissipation
- 9.466 BTU/h
LEDs
- Power, Link/Act (indicator per port built into RJ45 port)
Power Supply (External Adapter)
- 5V/0.6A
Dimensions (W x D x H)
- 99.8 x 98 x 25 mm (3.9 x 3.9 x 1.0 in.)
Certifications
- CE, FCC, RoHS
Environment
- Operating Temperature: 0ºC~40ºC (32ºF~104ºF)
- Storage Temperature: -40ºC~70ºC (-40ºF~158ºF)
- Operating Humidity: 10% ~ 90%RH, non-condensing
- Storage Humidity: 5%~95%RH, non-condensing
