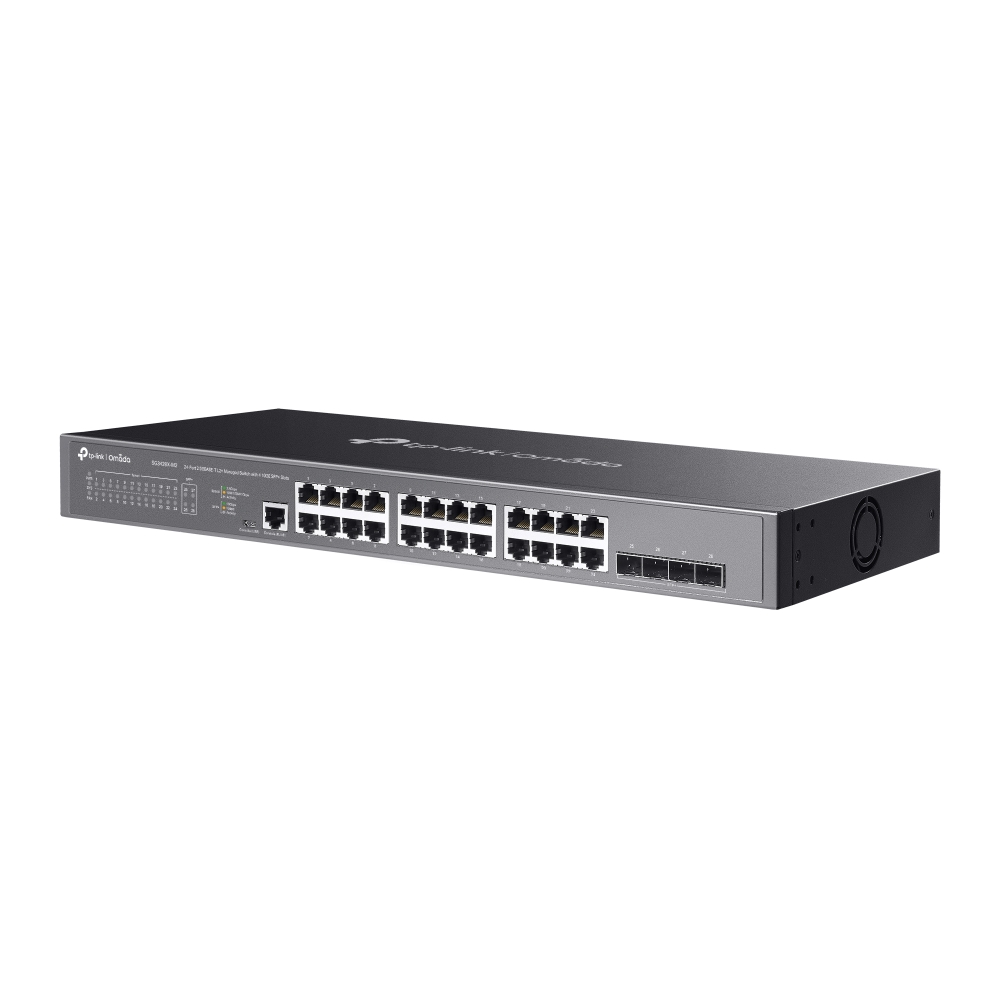

TP Link SG3428X-M2 Omada 24-Port 2.5G L2+ Managed Switch with 4-Port SFP+

Technical Specifications

Hardware Features

Interface

• 24 x 2.5 Gbps RJ45 Ports
• 4 x 10G SFP+ Slots
• 1 x RJ45 Console Port
• 1 x Micro-USB Console Port

Fan Quantity

• 1

Power Supply

• 100-240 V AC~50/60 Hz

Dimensions (W x D x H)

• 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in.)

Mounting

• Rack Mountable

Max Power Consumption

• 45.1 W (110V/60Hz)

Max Heat Dissipation

• 154.38 BTU/h (110 V/60 Hz)

Performance

Switching Capacity

• 200 Gbps

Packet Forwarding Rate

• 148.80 Mpps

MAC Address Table

• 32 K

Packet Buffer Memory

• 16 Mbit

Jumbo Frame

• 9 KB

Software Features

Quality of Service

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
  • SP+WRR
• Bandwidth Control
  • Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
  • Mirror (to supported interface)
  • Redirect (to supported interface)
  • Rate Limit
  • QoS Remark

L2 and L2+ Features

• Link Aggregation
  • static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups, containing 8 ports per group
• Spanning Tree Protocol
  • 802.1d STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter, Root Protect
• Loopback Detection
  • Port based
  • VLAN based
• Flow Control
  • 802.3x Flow Control
  • HOL Blocking Prevention
• Mirroring
  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Tx/Rx/Both

L2 Multicast

• IGMP Snooping
  • IGMP v1/v2/v3 Snooping
  • Fast Leave
  • IGMP Snooping Querier
  • IGMP Authentication
• IGMP Authentication
• MLD Snooping
  • MLD v1/v2 Snooping
  • Fast Leave
  • MLD Snooping Querier
  • Static Group Config
  • Limited IP Multicast
• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

• VLAN Group
  • Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 256 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ)
  • Port-Based QinQ
  • Selective QinQ
• Voice VLAN

Access Control List

• Time-based ACL
• MAC ACL
  • Source MAC
  • Destination MAC
  • VLAN ID
  • User Priority
  • Ether Type
• IP ACL
  • Source IP

Security

• IP-MAC-Port Binding
  • 512 Entries
  • DHCP Snooping
  • ARP Inspection
  • IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding
  • 512 Entries
  • DHCPv6 Snooping
  • ND Detection
  • IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security
  • Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
  • kbps/ratio control mode
• 802.1X
  • Port base authentication
  • Mac base authentication
  • VLAN Assignment
  • MAB
  • Guest VLAN
  • Support Radius authentication and accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

IPv6

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbour discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
  • DHCPv6 Client
  • Ping6
  • Tracert6
  • Telnet (v6)
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • Http/Https
  • IPv6 TFTP

L3 Features

• 32 IPv4/IPv6 Interfaces
• Static Routing
  • 48 static routes
• Static ARP
  • 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
  • DHCP Interface Relay
  • DHCP VLAN Relay
• DHCP L2 Relay

Advanced Features

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

MIBs

• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

Management

Omada App

• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralised Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

• Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

• Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
  • Trap/Inform
  • RMON (1,2,
