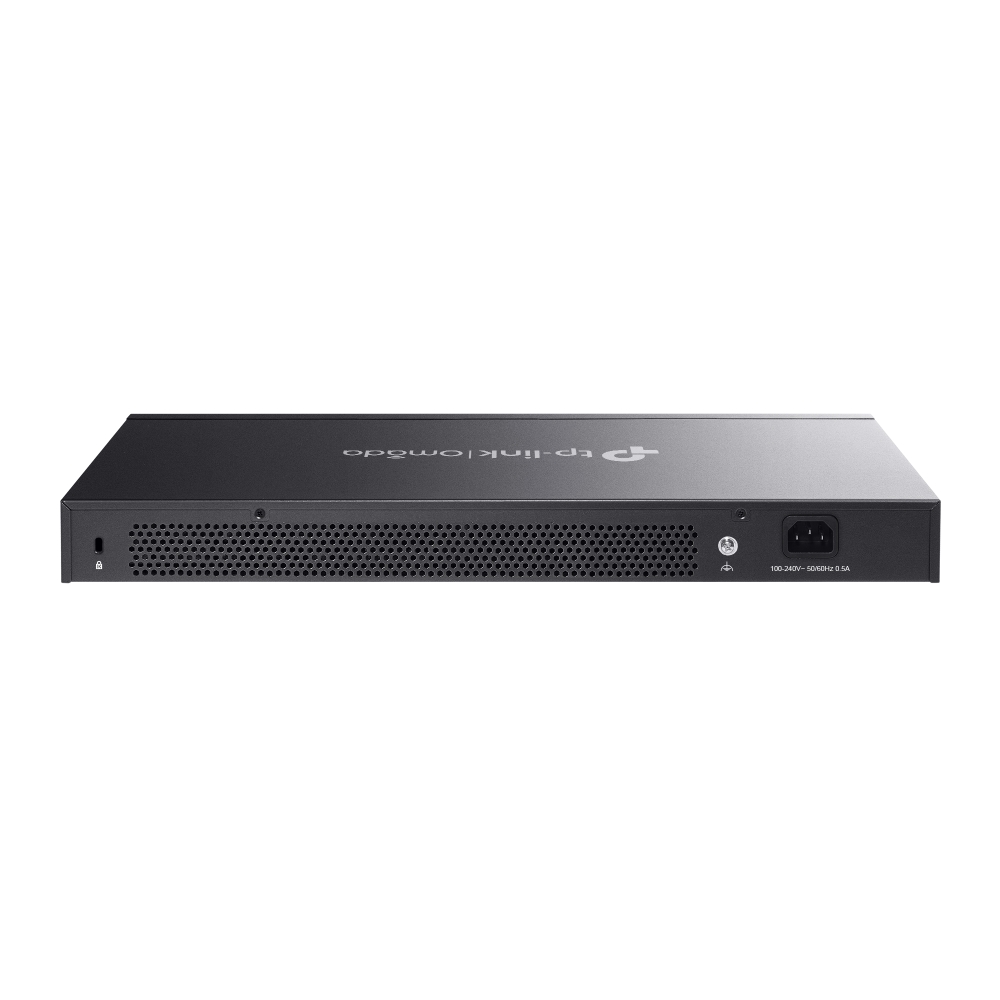

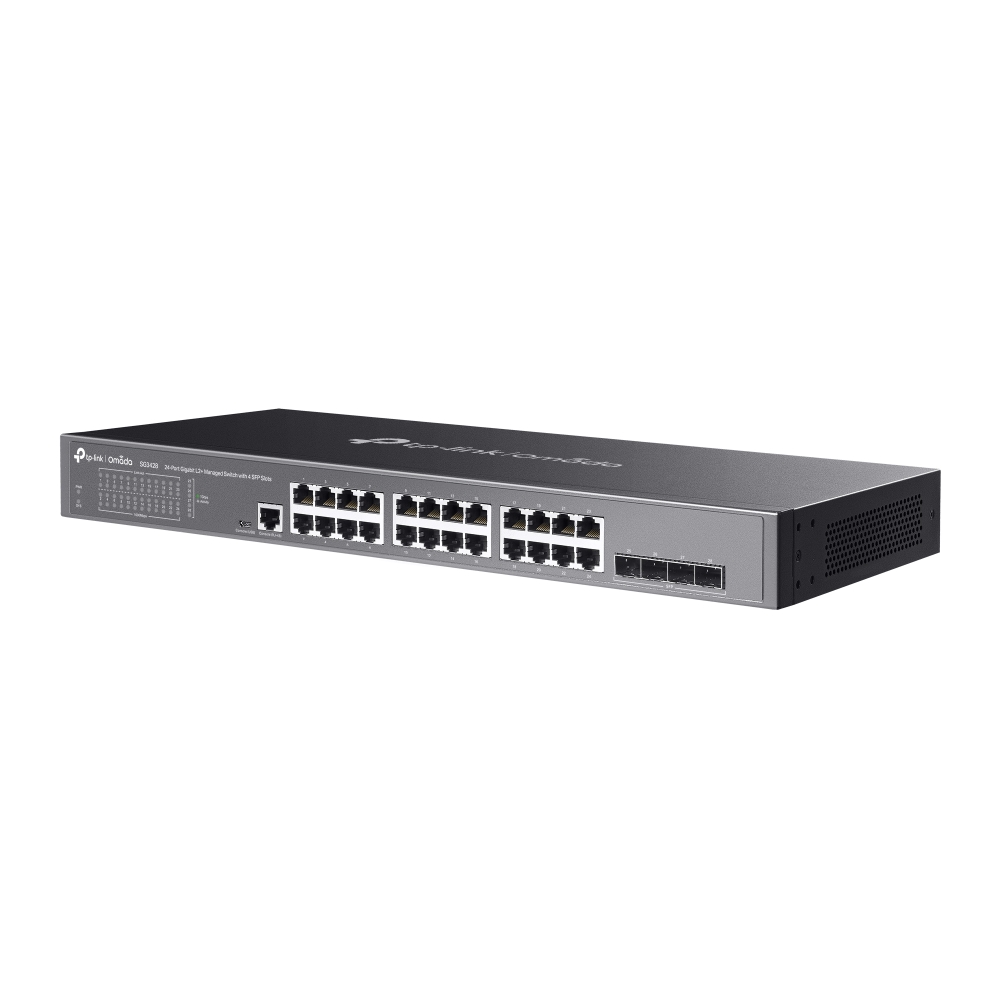

TP Link SG3428 Omada 24-Port Gigabit L2+ Managed Switch with 4-Port SFP

Technical Specifications

Interface

• 24 × 10/100/1000 Mbps RJ45 Ports
• 4 × Gigabit SFP Slots
• 1 × RJ45 Console Port
• 1 × Micro-USB Console Port

Fan Quantity

• Fanless

Power Supply

• 100-240 V AC~50/60 Hz

Dimensions (W x D x H)

• 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Mounting

• Rack Mountable

Max Power Consumption

• 19.22 W (110 V/60 Hz)

Max Heat Dissipation

• 65.58 BTU/h (110 V/60 Hz)

PERFORMANCE

Switching Capacity

• 56 Gbps

Packet Forwarding Rate

• 41.66 Mpps

MAC Address Table

• 8K

Jumbo Frame

• 9 KB

SOFTWARE FEATURES

Quality of Service

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
  • SP+WRR
• Bandwidth Control
  • Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
  • Mirror (to supported interface)
  • Redirect (to supported interface)
  • Rate Limit
  • QoS Remark

L2 and L2+ Features

• Link Aggregation
  • Static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
  • 802.1d STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
  • Port-based
  • VLAN based
• Flow Control
  • 802.3x Flow Control
  • HOL Blocking Prevention
• Mirroring
  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Tx/Rx/Both

L2 Multicast

• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
  • IGMP v1/v2/v3 Snooping
  • Fast Leave
  • IGMP Snooping Querier
  • IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
  • MLD v1/v2 Snooping
  • Fast Leave
  • MLD Snooping Querier
  • Static Group Config
  • Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

• VLAN Group
  • Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ)
  • Port-Based QinQ
  • Selective QinQ
• Voice VLAN

Access Control List

• Time-based ACL
• MAC ACL
  • Source MAC
  • Destination MAC
  • VLAN ID
  • User Priority
  • Ether Type
• IP ACL
  • Source IP
  • Destination IP
  • Fragment
  • IP Protocol
  • TCP Flag
  • TCP/UDP Port
  • DSCP/IP TOS
  • User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
  • Mirroring
  • Redirect
  • Rate Limit
  • QoS Remark
• ACL apply to Port/VLAN

Security

• IP-MAC-Port Binding
  • DHCP Snooping
  • ARP Inspection
  • IPv4 Source Guard
• IPv6-MAC-Port Binding
  • DHCPv6 Snooping
  • ND Detection
  • IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security
  • Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
  • kbps/ratio/pps control mode
• IP/Port/MAC based access control
• 802.1X
  • Port based authentication
  • Mac based authentication
  • VLAN Assignment
  • MAB
  • Guest VLAN
  • Support Radius authentication and accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IPv6

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbour discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
  • DHCPv6 Client
  • Ping6
  • Tracert6
  • Telnet (v6)
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • Http/Https
  • IPv6 TFTP

L3 Features

• 16 IPv4/IPv6 Interfaces
• Static Routing
  • 48 static routes
• Static ARP
• 316 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP L2 Relay

Management

• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
  • Trap/Inform
  • RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

Advanced Features

• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• ZTP (Zero-Touch Provisioning)

OTHERS

Certification

• CE, FCC, RoHS

Environment

• Operating Temperature: 0–45 ? (32–113 ?);</
