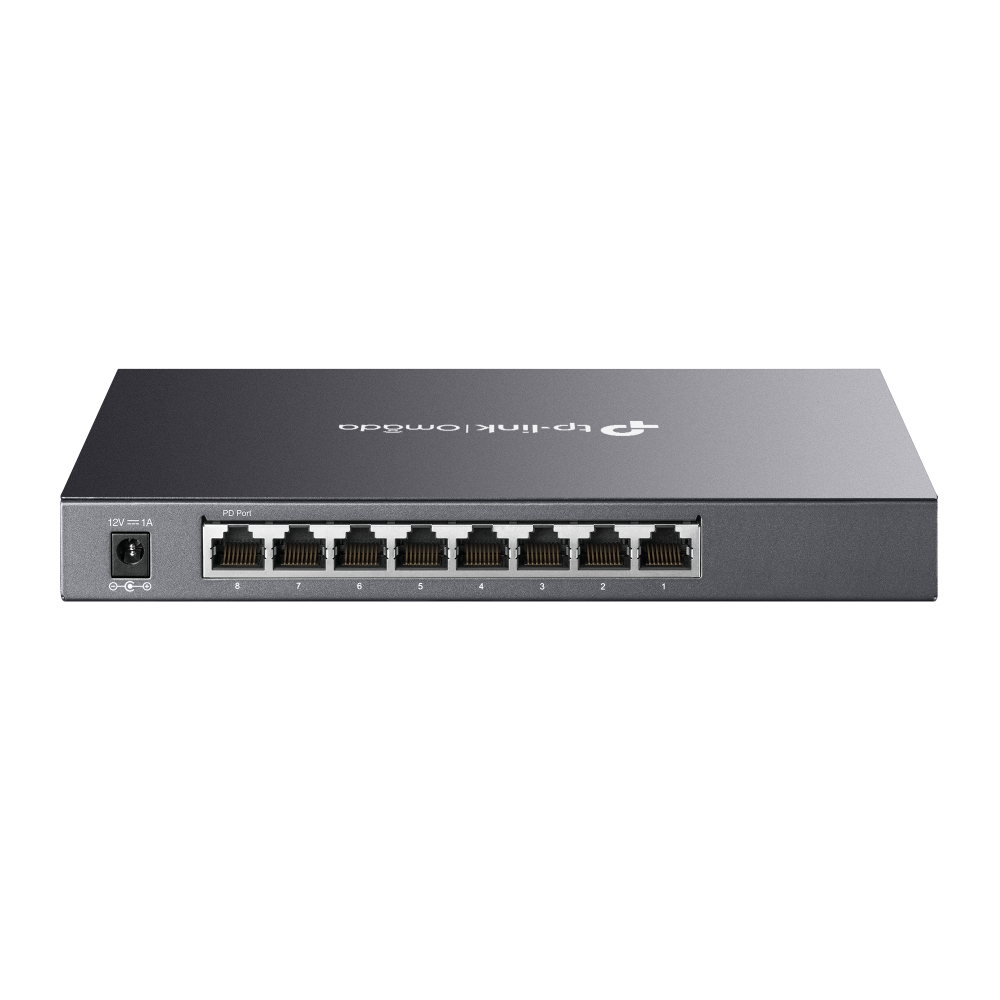

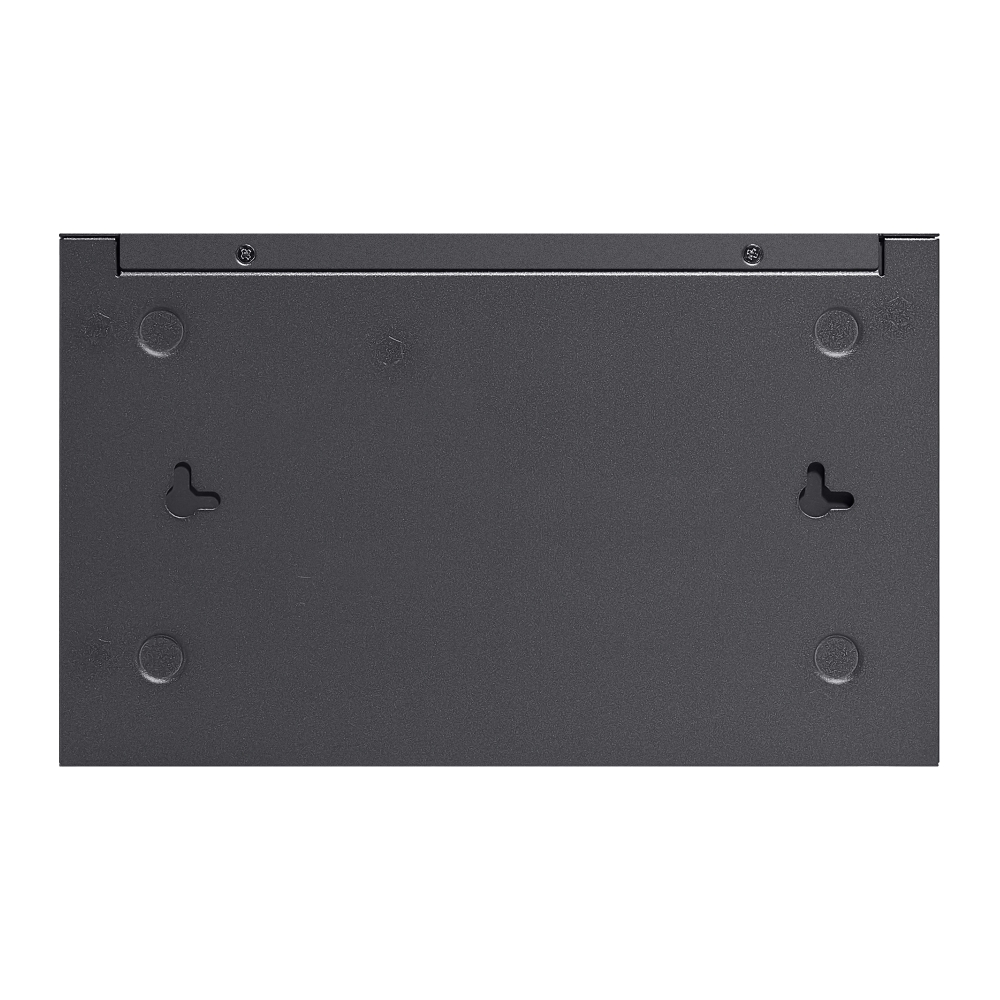

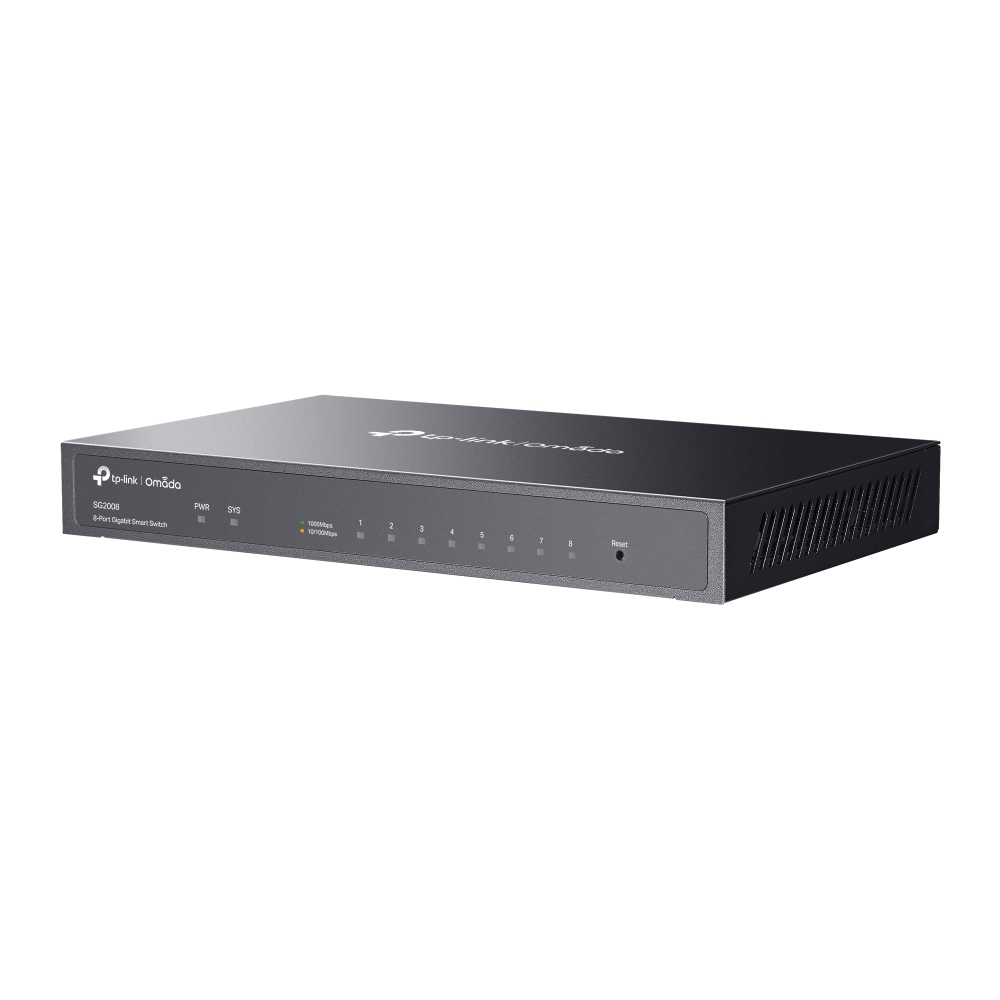

TP Link SG2008 Omada 8-Port Gigabit Smart Switch

Technical Specifications

Technical Specification

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

• 8 x 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

• Fanless

Power Supply

• 12 VDC/1 A External Adapter
• Obtain Power from PoE Source

Power Consumption

• 6.4 W (220 V/50 Hz)

Dimensions (W X D X H)

• 8.2 x 4.9 x 1.0 in. (209 x 126 x 26mm)

Performance

Bandwidth/Backplane

• 16Gbps

Packet Forwarding Rate

• 11.9Mpps

MAC Address Table

• 8k

Jumbo Frame

• 9 KB

Software Features

Quality of Service

• 802.1p CoS/DSCP priority
• Support 8 priority queues
• Priority Schedule Mode
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
  • Port/Flow based Rate Limiting
• Smoother Performance
• Storm Control
  • Multiple Control Modes(kbps/ratio)
  • Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

• 16 IP Interfaces
  • Support IPv4/IPv6 Interface
• Static Routing
  • 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
  • DHCP Interface Relay
  • DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
  • Static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
  • 802.1D STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
  • 802.3x Flow Control
• Mirroring
  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Flow-Based
  • Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

VLAN

• VLAN Group
  • Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN

Access Control List

• Support up to 230 entries
• Time-Range
  • Time Slice
  • Week Time-Range
  • Absolute Time-Range
  • Holiday
• Time-based ACL
• MAC ACL
  • Source MAC
  • Destination MAC
  • VLAN ID
  • User Priority
  • Ether Type
• IP ACL
  • Source IP
  • Destination IP
  • IP Protocol
  • TCP Flag
  • TCP/UDP Source Port
  • TCP/UDP Destination Port
  • DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
  • Permit/Deny
• Policy Action
  • Mirror
  • Rate Limit
  • Redirect
  • QoS Remark
• ACL Rules Binding
  • Port Binding
  • VLAN Binding
• Actions for flows
  • Mirror (to supported interface)
  • Redirect (to supported interface)
  • Rate Limit
  • QoS Remark

Security

• AAA
• 802.1X
  • Port based authentication
  • MAC (Host) based authentication
  • Authentication Method includes PAP/EAP-MD5
  • MAB
  • Guest VLAN
  • Support Radius authentication and accountability
• IP/IPv6-MAC Binding
  • 512 Binding Entries
  • DHCP Snooping
  • DHCPv6 Snooping
  • ARP Inspection
  • ND Detection
• IP Source Guard
  • 253 Entries
  • Source IP+Source MAC
• IPv6 Source Guard
  • 183 Entries
  • Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
  • Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
  • kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

Management

• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

Others

Certification

• CE, FCC, RoHS

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.

Environment Operating

• Temperature: 0°C~40°C (32°F~104°F);
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Package Contents

• 1 x TP-Link SG2008
• 1 x Power Adapter
• 1 x Quick Installation Guide
• 1 x Set of Rubber Feet
