TP Link ES205G Omada 5-Port Gigabit Easy Managed Switch

Technical Specifications

Hardware Features

Interface

• 5 x 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity

• Fanless

Installation

• Desktop

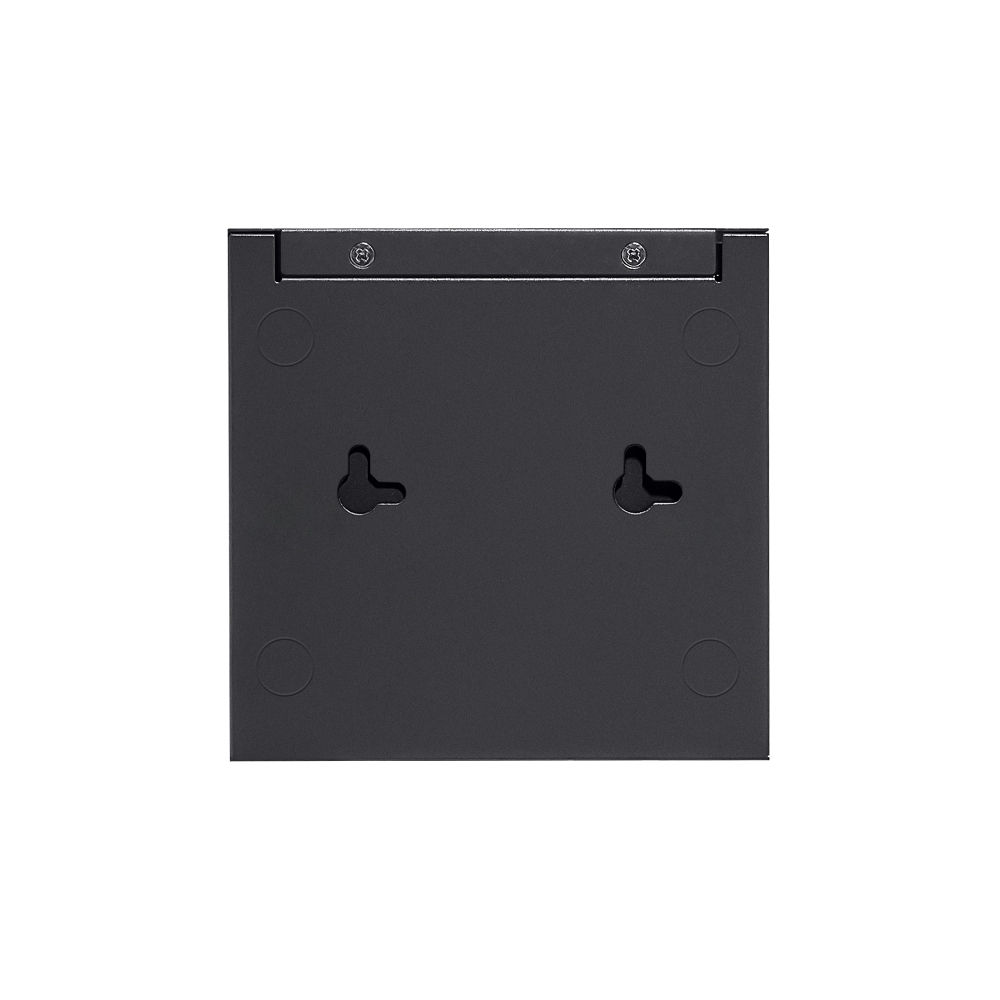

• Wall Mount

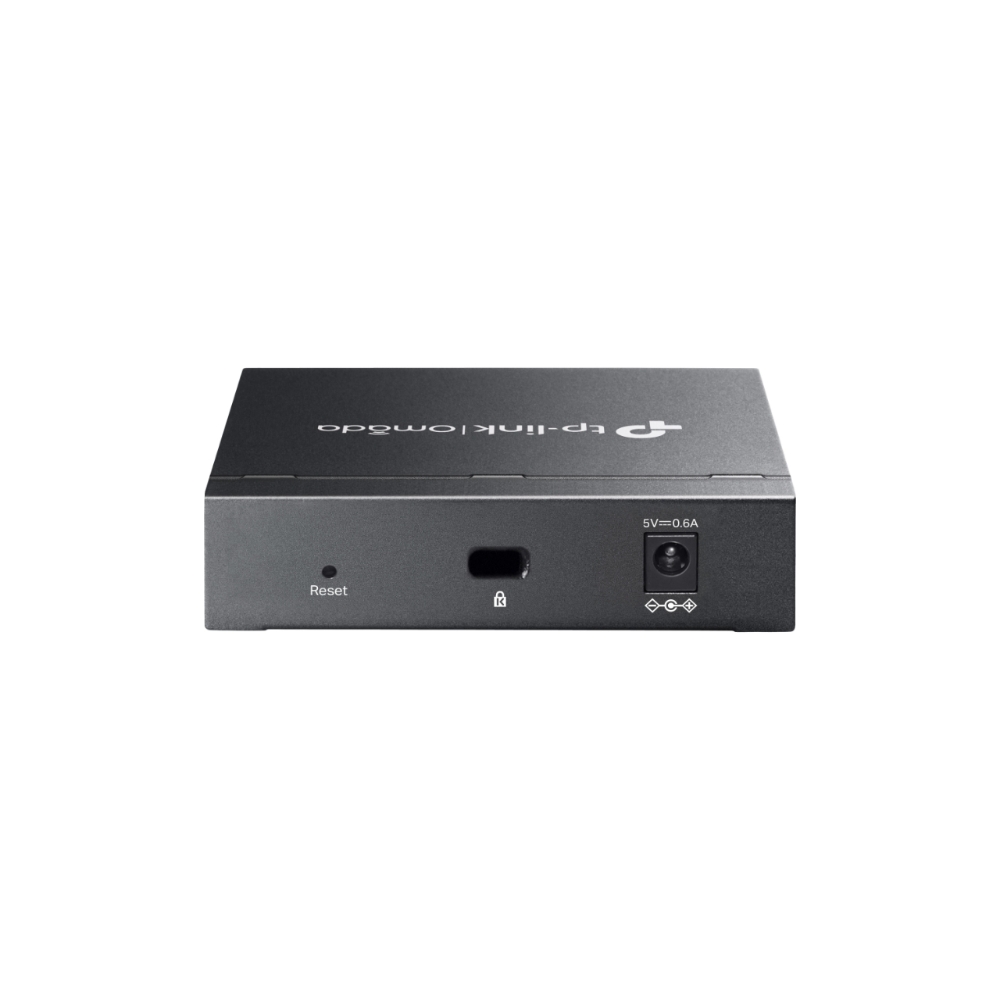

Physical Security Lock

• Yes

Power Supply

• External DC Power Adapter (Output: 5 VDC/ 0.6 A)

Dimensions (W x D x H)

• 100 x 98 x 25 mm (3.9 x 3.9 x 1.0 in.)

Performance

Switching Capacity

• 10 Gbps

Packet Forwarding Rate

• 7.4 Mpps

MAC Address Table

• 8 K

Packet Buffer Memory

• 4 Mbits

Jumbo Frame

• 15 KB

Software Features

Quality of Service*

• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
  • WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
  • Port-Based Rating Limit
• Storm Control
  • Multiple Control Modes (kbps/pps)
  • Broadcast/Multicast/Unknown-Unicast Control

L2 Features

• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
  • 802.3x Flow Control
• Mirroring
  • Port Mirroring
  • One-to-One
  • Many-to-One
  • Ingress/Egress/Both
• Port Statistics
  • Port Mirror Status
  • Traffic Statistics
• 802.1ab LLDP

L2 Multicast

• IGMP Snooping
  • IGMP v1/v2/v3 Snooping
  • Fast Leave

VLAN

• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
  • Max 32 VLAN Groups
  • 4K VID

Transmission Method

• Store-And-Forward

Management

Omada App

• Yes, requires Omada Hardware Controller (see accessories), Omada Cloud-Based Controller, or Omada Software Controller.

Centralised Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (see accessories tab)
• Omada Software Controller

Cloud Access

• Yes, requires Omada Hardware Controller (see accessories), Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

• Yes (requires Omada Cloud-Based Controller)

Management Features

• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery**
• Batch Configuration**
• Batch Firmware Upgrading**
• Unified Configuration**

Other Specifications

Certification

• FCC, CE, RoHS

Environment

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing

Package Contents

• 1 x ES205G Switch
• 1 x Power Adapter
• 1 x Installation Guide
• 1 x Rubber Feet

^{*QoS is supported under Standalone Mode.
**Requires the use of the Omada SDN Controller.}
