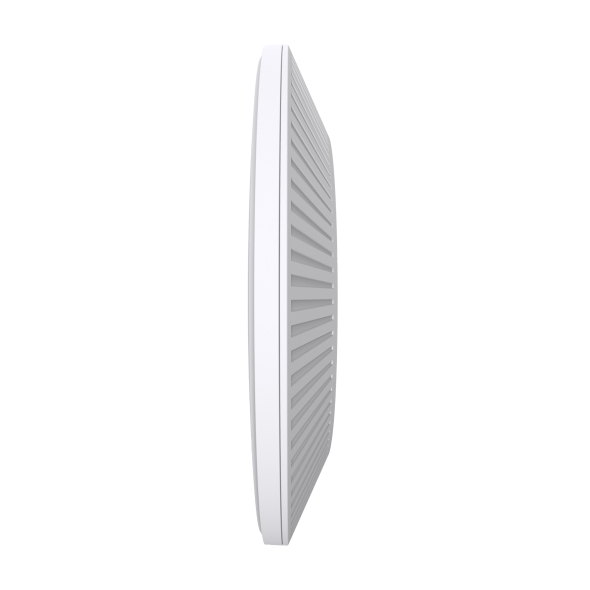

TP Link EAP773 Omada 9214Mbps WiFi 7 Wireless Ceiling Mount Access Point

Technical Specifications

General Specifications

LAN Interfaces

• 1 x 10Gbps Ethernet Port

WiFi Standards

• IEEE 802.11 a/b/g/n/ac/ax/be

Maximum Data Rate

• 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)

Wireless Client Capacity

• 2 GHz: 128, 5 GHz: 128, 6 GHz: 128

Antennas

• 2.4 GHz: 2 × 3.0 dBi, 5 GHz: 2 × 3.0 dBi, 6 GHz: 2 × 3.0 dBi

Bluetooth

• 1 × 4.0 dBi, Bluetooth 5.2
• Firmware update may be required.

Transmit Power

• CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP); 23dBm (6 GHz, EIRP)
• FCC: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 23 dBm (6 GHz)

Reception Sensitivity

• 2.4G:
  • 11ax HE20MCS0:-96dBm; 11ax HE20MCS11:-66.5dBm
  • 11ax HE40MCS0:-93dBm; 11ax HE40MCS11:-64dBm

• 5G:
  • 11be EHT20MCS0:-94dBm; 11be EHTMCS13:-63dBm
  • 11be EHT40MCS0:-90.5dBm; 11be EHT40MCS13:-60dBm
  • 11be EHT80MCS0:-88dBm; 11be EHT80MCS13:-57.5dBm
  • 11be EHT160MCS0:-85dBm; 11be EHT160MCS13:-55.5dBm

• 6G:
  • 11be EHT20MCS0:-93dBm; 11be EHTMCS13:-63dBm
  • 11be EHT40MCS0:-90dBm; 11be EHT40MCS13:-60dBm
  • 11be EHT80MCS0:-87.5dBm; 11be EHT80MCS13:-57.5dBm
  • 11be EHT160MCS0:-84dBm; 11be EHT160MCS13:-55dBm
  • 11be EHT320MCS0:-81.5dBm; 11be EHT320MCS0:-52.5dBm

Centralised Management

Omada Software Controller

• Yes

Omada Hardware Controller

• Yes

Omada App

• Yes

Security Specifications

Captive Portal Authentication

• Yes

Access Control

• Yes

Maximum number of MAC Filter

• 4000

Wireless Isolation between Clients

• Yes

VLAN

• Yes

Rogue AP Detection

• Yes

Wireless Encryption

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE

Wireless Function

Multiple SSIDs

• 24 (8 on each band)

Channel

• 2G:1~13; 5G: 36~140; 6G: 33~93

Enable/Disable Wireless Radio

• Yes

Enable/Disable SSID Broadcast

• Yes

Guest Network

• Yes

Automatic Channel Assignment

• Yes

Transmit Power Control

• Adjust transmit Power on dBm

QoS (WMM)

• Yes

Seamless Roaming

• Yes

Mesh

• Yes

Reboot Schedule

• Yes

Wireless Schedule

• Yes

Wireless Statistics

• Yes

Static IP/Dynamic IP

• Yes

Support Data Rates

802.1be

• 5G Band: 8Mbps to 2882Mbps(MCS0—MCS13,NSS=1 to 2 BE20/40/80/160)
• 6G Band: 8Mbps to 5765Mbps(MCS0—MCS13,NSS=1 to 2 BE20/40/80/160/320)

802.11ax

• 2G Band: 8Mbps to 574Mbps(MCS0—MCS11,NSS=1 to 2 HE20/40)
• 5G Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)
• 6G Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)

802.11ac

• 6.5Mbps to 2166.7Mbps(MCS0—MCS11,NSS=1 to 2 VHT20/40/80/160)

802.11n

• 6.5Mbps to 300Mbps(MCS0—MCS15,HT20/40)

802.11g

• 6, 9, 12, 18, 24, 36, 48 ,54 Mbps

802.11b

• 1, 2, 5.5, 11 Mbps

802.11a

• 6, 9, 12, 18, 24, 36, 48 ,54 Mbps

Management Specifications

LED ON/OFF Control

• Yes

Management MAC Access Control

• Yes

Web-based Management

• Yes

SNMP

• v1, v2c, v3

SSH

• Yes

Restore & Backup

• Yes

Firmware update via Web

• Yes

NTP

• Yes

System Log

• Yes

Email Alerts

• Yes

Physical & Environment Specifications

Power Supply

• 802.3bt PoE or 12V/2.5A DC
• DC Power Adapter is not included

Maximum Power Consumption

• Support Smart Power Consumption Management
• 24.05 W (802.3bt, full functionality)
• 20.92 W (12/2.5A, full functionality)
• 22.4 W (802.3at decrease 6GHz Power)
• 10.1. W (802.3af, radio off, only main chip and LAN working)

Reset

• Yes

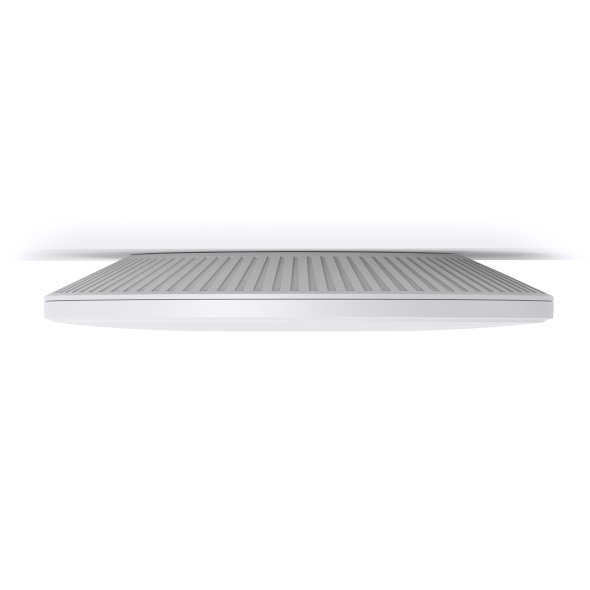

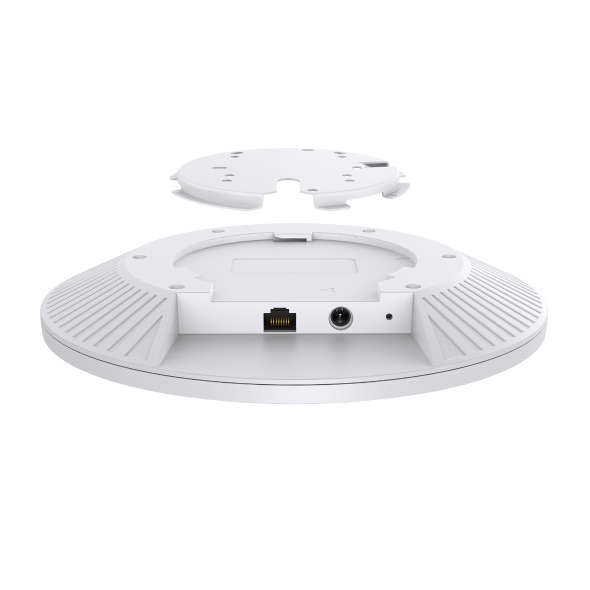

Mounting

• Ceiling / Wall mounting (kits included)

Other Specifications

Certifications

• CE, FCC, RoHS, IC

Dimensions (W x D x H)

• 220 x 220 x 32.5 mm

Net Weight

• 736g

Enclosure Material / Rack Material

• Top cover: PC
• Bottom shell: aluminium alloy
• Mounting rack: stainless steel

Lightning Protection

• 2KV

Environment

• Operating Temperature: 0°C – 40°C (32°F – 104°F)
• Storage Temperature: -40°C – 70°C (-40°F – 158°F)
• Operating Humidity: 10%–9
