TP Link EAP772 Omada 9214Mbps WiFi 7 Wireless Ceiling Mount Access Point
Product Ref: EAP772
- BE9300 Tri-Band WiFi 7
Supports up to 9.21Gbps for a bufferless office or retail network. - 2.5GbE PoE Port
Boosts overall throughput and offers flexible deployment. - Centralised Cloud Management
Manage the whole network locally or from the cloud. - Next-Gen WiFi 7
Enjoy a smooth network with higher throughput and lower interference. - Auto Channel Selection and Power Adjustment
Boost WiFi performance and minimise interference for your network. - Omada Mesh Technology
More flexible and convenient wireless deployment. - Multi-Link Operation (MLO)
Enables devices to simultaneously send and receive data across different frequency bands and channels. - Intelligent Power Management
Offers more reliable network operation for your business. - Ultra-Thin Design

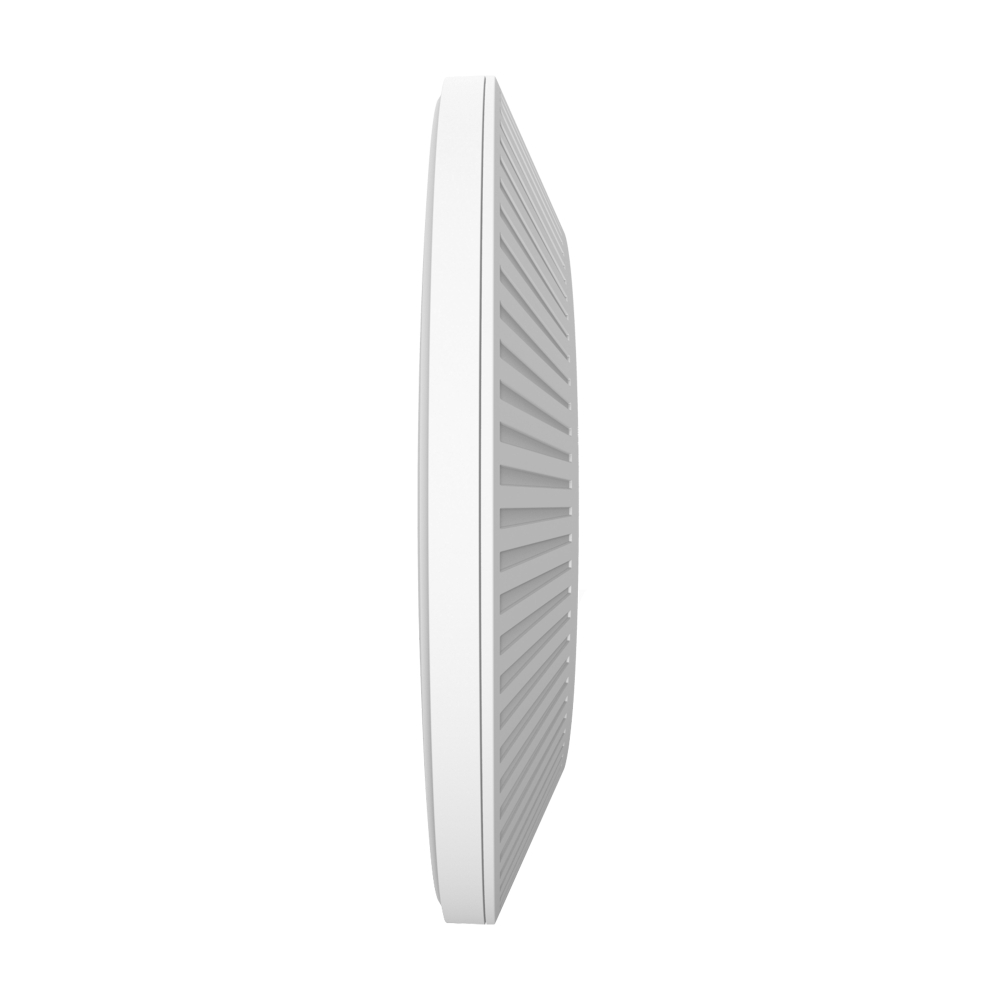

220 mm × 32.5 mm elegant design brings more flexibility.
Technical Specifications
Hardware Features
Interface
- 1 x 2.5G Ethernet Port
Button
- Reset
Power Supply
- 802.3at PoE or 12V/2.5A DC
Power Consumption
- 24.05 W (for PoE)
- 20.92 W (for DC)
Dimensions (W x D x H)
- 220 x 220 x 32.5 mm (8.7 x 8.7 x 1.3 in.)
Antenna Type
- 2.4 GHz: 2 x 4.0 dBi
- 5 GHz: 2 x 5.0 dBi
- 6 GHz: 2 x 5.0 dBi
Bluetooth
- 1 x 4.0 dBi, Bluetooth 5.2
- Note: Firmware update may be required.
Mounting

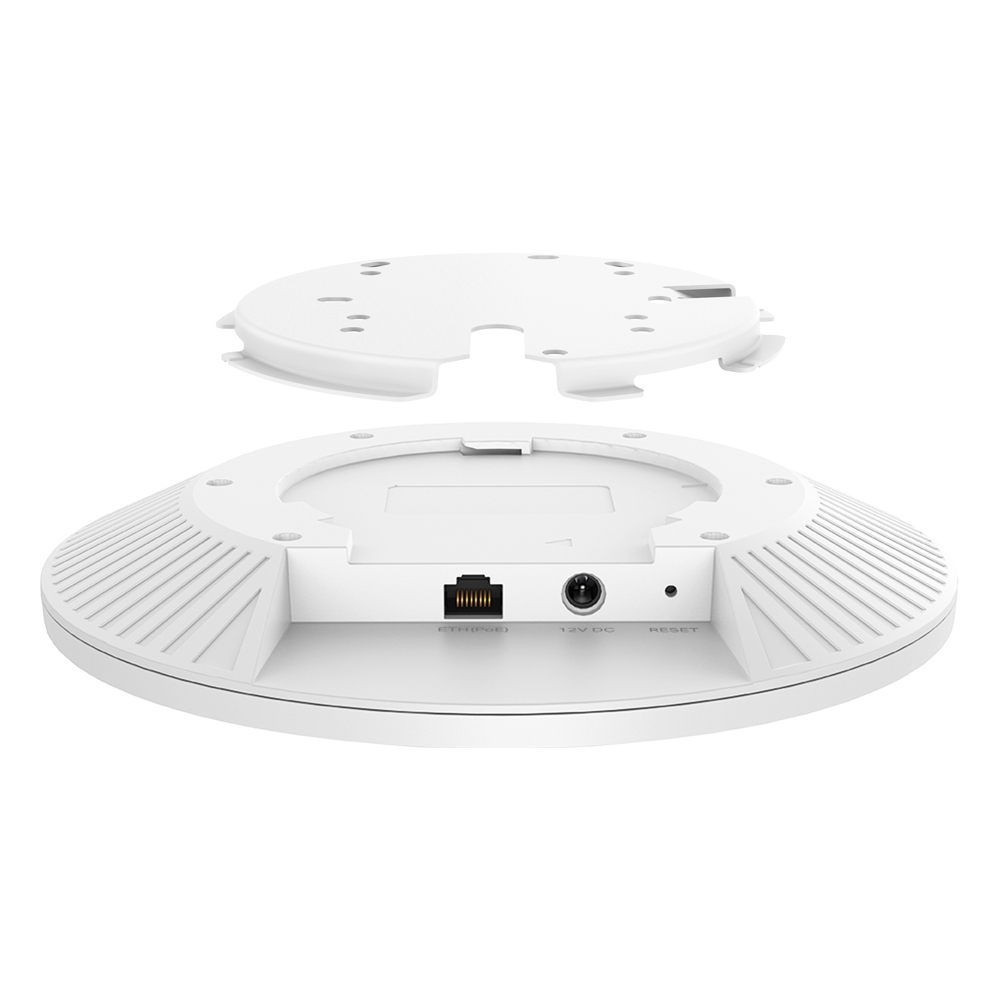

- Ceiling / Wall Mounting (Kits Included)
Wireless Features
Coverage
- 1402(1500 ft2)
Wireless Client Capacity
- 380+
Wireless Standards
- IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
- 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate
- 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Wireless Functions
- MLO*
- 4K-QAM*
- Seamless Roaming(802.11k/v/r)
- MU-MIMO*
- EHT320*
- Mesh (require the use of an Omada SDN controller)
- BSS Coloring*
- OFDMA*
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDS: 24 (8 on each band)
- Wireless Schedule
- Reboot Schedule
- QoS(WMM)
- Rate Limit
- Static IP/Dynamic IP
- RADIUS Accounting
- MAC Authentication
Wireless Security
- Captive Portal Authentication (require the use of an Omada SDN controller)
- Access Control
- Maximum number of MAC Filter: 4,000
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- < 20 dBm (2.4 GHz, EIRP)
- < 23 dBm (5 GHz, band 1&band 2, EIRP)
- < 28 dBm (5 GHz, band 3, EIRP)
- < 23dBm (6 GHz, EIRP)
Management
Omada App
- Yes
Centralised Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
Cloud Access
- Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1, v2c, v3
System Logging Local/Remote Syslog
- Yes
Web-based Management
- Yes
Other Specifications
Certification
- CE, FCC, RoHS, IC
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% non-condensing
- Storage Humidity: 5% – 90% non-condensing
Package Contents
- EAP772
- Installation Guide
- Ceiling/Wall Mounting Kits
