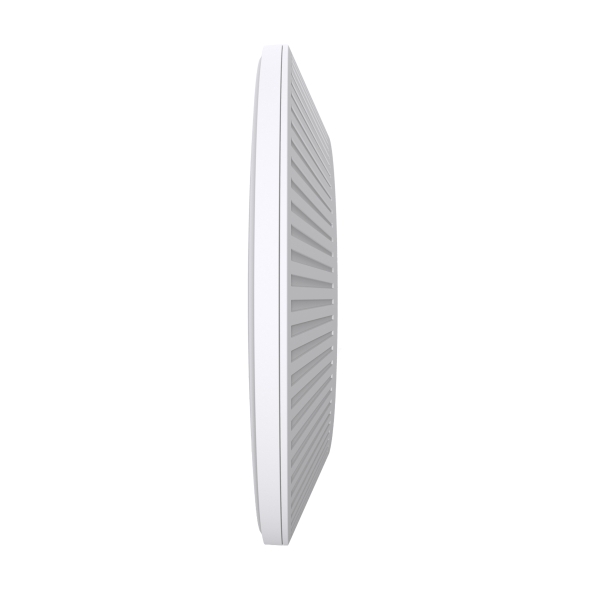

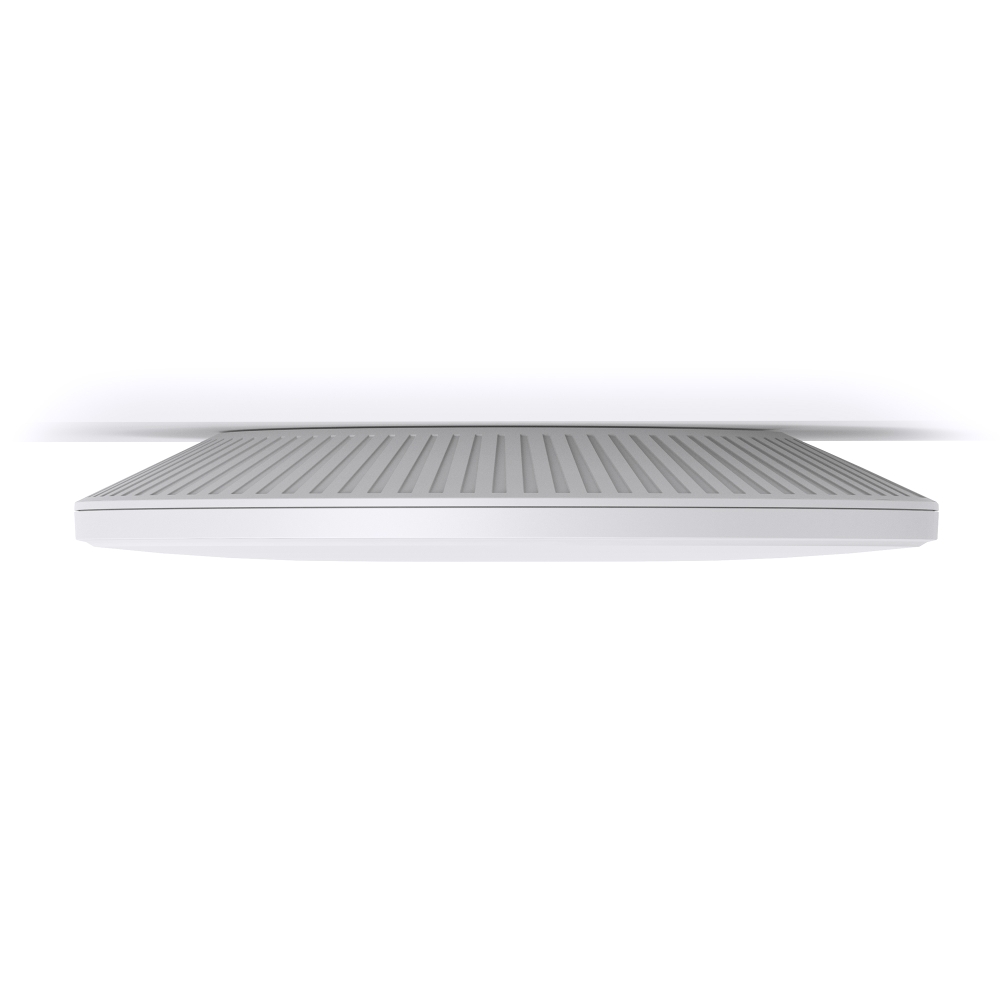

TP Link EAP673 Omada 5378Mbps WiFi 6 Wireless Ceiling Mount Access Point
Product Ref: EAP673
- AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz + 574 Mbps on 2.4 GHz. - High-Efficiency WiFi 6
More connected devices can enjoy faster speeds. - Centralised Cloud Management
Manage the whole network locally or from the cloud. - 2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port. - 160 MHz Channel
Double the data at peak transmission times on a single stream with HE160. - Auto Channel Selection and Power Adjustment
Optimise overall performance by reducing WiFi interference. - Omada Mesh Technology
More flexible and convenient wireless deployment. - Seamless Roaming
Uninterrupted streaming when moving between APs. - PoE+ Powered
Supports both DC (adapter not included) and 802.3at PoE+ for flexible installations.
Technical Specifications
Hardware Features
Interface
- 1 x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
- Reset
Power Supply
- 802.3at PoE
- 12 V / 2 A DC (Power adapter not included)
Power Consumption
- EU: 20.8 W
- US: 22.3 W
Dimensions (W x D x H)
- 220 x 220 x 32.5 mm (8.7 x 8.7 x 1.3 in.)
Antenna Type
- Internal Omni
- 2.4 GHz: 2 x 4 dBi
- 5 GHz: 4 x 5 dBi
Mounting
- Ceiling /Wall Mounting (Kits included)
Wireless Features
Wireless Client Capacity
- 250+
Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
Frequency
- 2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions
- 1024-QAM
- 4 x Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- HE160 (160 MHz Bandwidth)
- Seamless Roaming
- Omada Mesh
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
- < 20 dBm(2.4 GHz, EIRP)
- < 23 dBm(5 GHz, band1 & band2, EIRP)
- < 30 dBm(5 GHz, band3, EIRP)
- FCC:
- < 25 dBm (2.4 GHz)
- < 28 dBm (5 GHz)
Management
Omada App
- Yes
Centralised Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
- Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1, v2c, v3
System Logging Local/Remote Syslog
- Local/Remote Syslog
SSH
- Yes
Web-based Management
- HTTP/HTTPS
L3 Management
- Yes
Multi-site Management
- Yes
Management VLAN
- Yes
Zero-Touch Provisioning
- Yes. Require the use of Omada Cloud-Based Controller.
Other Features
Certification
- CE, FCC, RoHS
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing
Package Contents
- 1 x EAP673 Access Point
- 1 x Ceiling/Wall Mounting Kits
- 1 x Installation Guide
