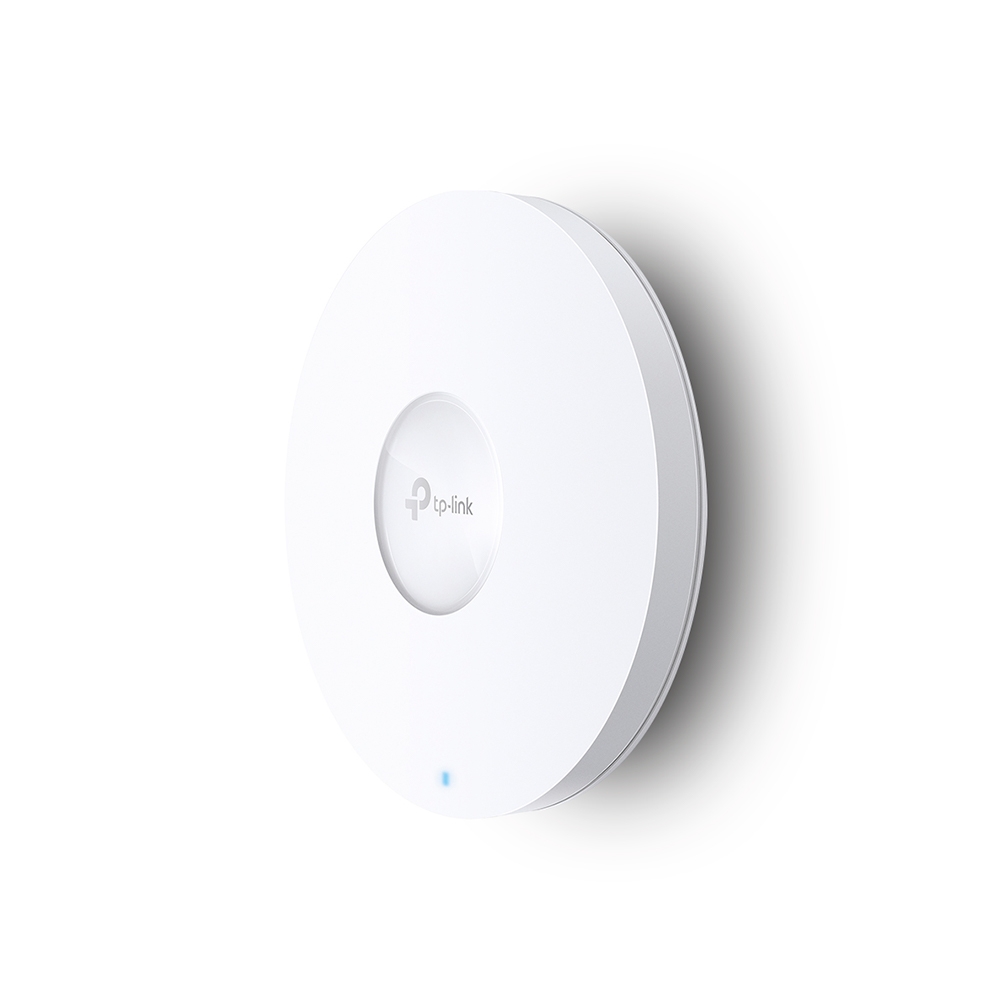

TP Link EAP653-UR Omada 2976Mbps WiFi 6 Wireless Ceiling Mount Access Point
Product Ref: EAP653-UR
- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz.
- Ultra-range wireless coverage via more antennas with higher transmit power.
- Supports WiFi 6 technologies such as HE160, 1024-QAM, etc.
- Advanced Features such as Omada Mesh, Seamless Roaming, etc.
- Powered by 48V Passive PoE, 802.3at PoE+ or DC power (injector and power adapter sold separately, see accessories tab).
- The ultra-slim design brings more agility.
- Integrates with the Omada platform for centralised management.
Technical Specifications
Hardware Features
Interface
- 1 x Gigabit PoE+ Port
Button
- Reset
Power Supply
- 802.3at PoE
- 12V DC / 1.5 A (power adapter not included, see accessories tab)
- 48V Passive PoE
Power Consumption
- EU: 14.2 W
- US: 15.5 W
Dimensions (WxDxH)
- 6.3 x 6.3 x 1.3 in (160 x 160 x 33.6 mm)
Antenna Type
- Internal Omni
- 2.4 GHz: 2 x 5 dBi
- 5 GHz: 3 x 5 dBi

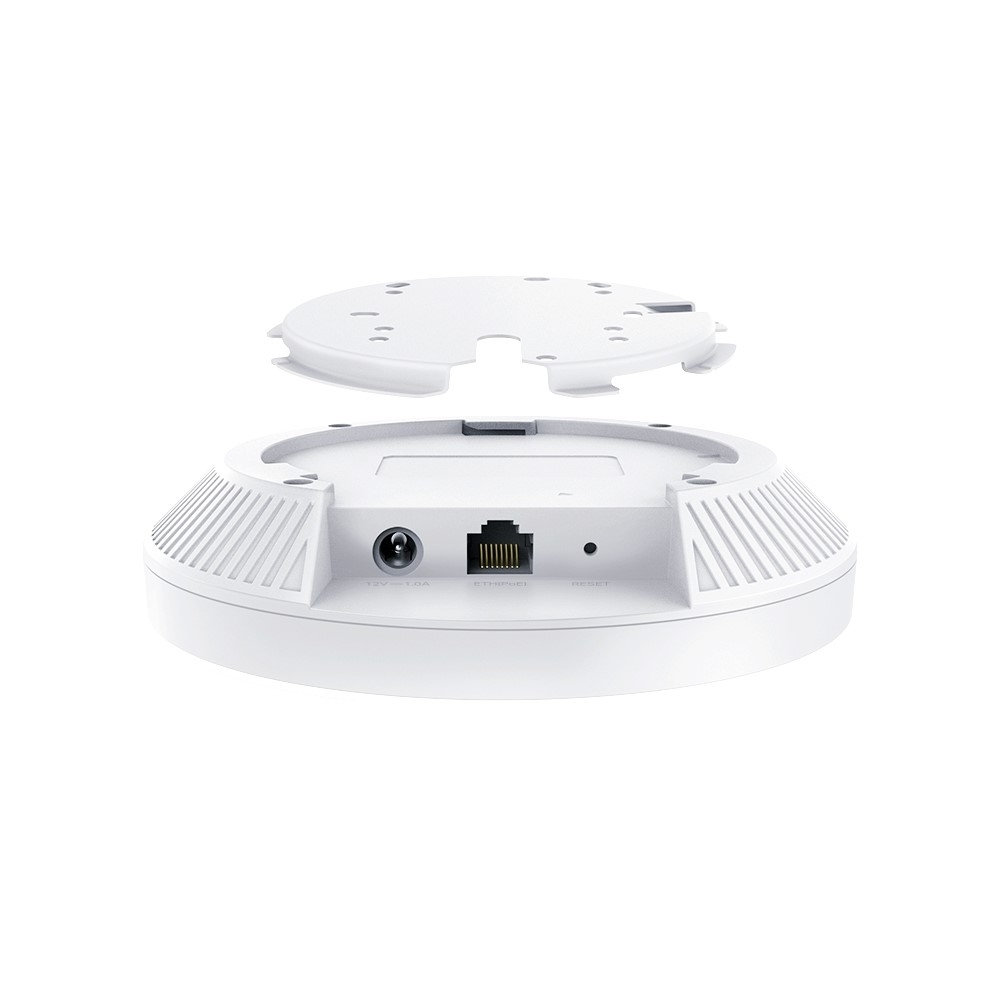

Mounting
- Ceiling/Wall Mounting (kits included)
- Junction Box Mounting
Wireless Features
Coverage
- 185 m2 (2000 ft2)
Concurrent Clients
- 250+
Wireless Standards
- IEEE 802.11 a/b/g/n/ac/ax
Frequency
- 2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions
- 1024-QAM
- 4 x Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO(2G: 2x2 MU-MIMO DL/UL; 5G:2x2 MU-MIMO DL/UL)
- HE160 (160 MHz Bandwidth)
- Seamless Roaming(802.11k/v/r)
- Omada Mesh
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
- < 20 dBm(2.4 GHz, EIRP)
- < 23 dBm(5 GHz, Band1 & Band2, EIRP)
- < 29 dBm(5 GHz, Band3, EIRP)
- FCC:
- < 26 dBm (2.4 GHz)
- < 27 dBm (5 GHz)
Management
Omada App
- Yes
Centralised Management
- Omada Hardware Controller (OC300 - see accessories tab)
- Omada Hardware Controller (OC200 - see accessories tab)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
- Yes, requires OC300/OC200 (sold separately), Omada Software Controller, or Omada Cloud-Based Controller
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1, v2c, v3
System Logging Local/Remote Syslog
- Local/Remote Syslog
SSH
- Yes
Web-based Management
- HTTP/HTTPS
L3 Management
- Yes
Multi-site Management
- Yes
Management VLAN
- Yes
Zero-Touch Provisioning
- Yes (requires Omada Cloud-Based Controller)
Other Specifications
Certification
- CE, FCC, RoHS
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing
Package Contents
- 1 x TP-Link EAP653 UR
- 1 x Ceiling/Wall Mount Kit
- 1 x Installation Guide
