TP Link EAP625-OUTDOOR-HD Omada 1775Mbps WiFi 6 Wireless External Access Point
Product Ref: EAP625-OUTDOOR-HD
MPN: 88591
- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.
- Supports WiFi 6 technologies, such as 1024-QAM, OFDMA, etc.
- High-density connectivity up to 1,000+ clients.
- Long-range coverage with the high-power amplifier and two (2) detachable antennas.
- IP67 weatherproof enclosure for various outdoor environments.
- Advanced Functions: Centralised management, Omada mesh, and seamless roaming.
- PoE+ Powered: Supports both 802.3at PoE (not included, see accessories tab).
Technical Specifications
Hardware Features
Interface

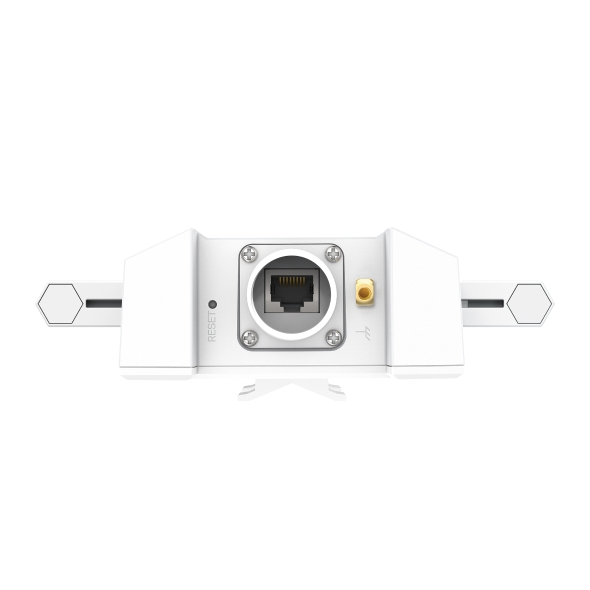

- 1x Gigabit Ethernet Port
Button
- Reset
Power Supply
- 802.3at PoE
- 48V Passive PoE
- Note: PoE adapter is not included.
Dimensions (W x D x H)
- 182.2 x 57 x 281 mm (7.2 x 2.2 x 11.1 in.)
Antenna Type
- 2× External Dual-Band Omni Antennas
- 2.4 GHz: 3.0 dBi
- 5 GHz: 5.0 dBi
Bluetooth
- V5.2
Weatherproof Enclosure
- IP67
Mounting
- Pole/Wall Mounting (Kits included)
Wireless Features
Concurrent Clients
- 1,020+
Wireless Standards
- IEEE 802.11 a/b/g/n/ac/ax
Frequency
- 5 GHz, and 2.4 GHz
Signal Rate
- 5 GHz: Up to 1201 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions
- Mesh
- Seamless Roaming(802.11k/v/r)
- Automatic Channel Assignment
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDs:16 (8 for each band)
- MU-MIMO (2x2 MU-MIMO DL)
- Wireless Statistics
- Wireless Schedule
- Reboot Schedule
- RADIUS Accounting
- MAC Authentication
- Static IP/Dynamic IP
Wireless Security
- VLAN
- Access Control
- Rogue AP Detection
- Captive Portal Authentication
- Maximum number of MAC Filter: 4,000
- Wireless Isolation between Clients
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- 802.1X Support
Transmission Power
- CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
- FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
Management
Omada App
- Yes
Restore & Backup
- Yes
Firmware update via Web
- Yes
NTP
- Yes
Centralised Management
- Omada Hardware Controller (OC300);
- Omada Hardware Controller (OC200);
- Omada Software Controller;
- Omada Cloud-Based Controller
Cloud Access
- Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1, v2c, v3
SSH
- Yes
Web-based Management
- Yes
Others
Certification
- CE, FCC, RoHS
Environment
- Operating Temperature: -30°C – 70°C (-22°F – 158°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% non-condensing
- Storage Humidity: 5% – 90% non-condensing
Package Contents
- EAP625-Outdoor HD
- 2 x Detachable Antennas
- Installation Guide
- Mounting Kit
- Waterproof Kit
