Technical Specifications
Hardware Features

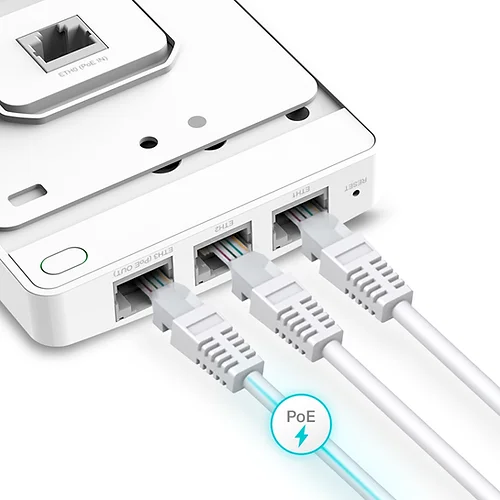

Interface
- Uplink: 1 x 10/100/1000 Mbps Ethernet Port
- Downlink: 3 x 10/100/1000 Mbps Ethernet Ports
- Note: One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W, based on laboratory testing.
Physical Security Lock
Button
Power Supply
Power Consumption
- 10W (802.3at PoE, PoE Out off)

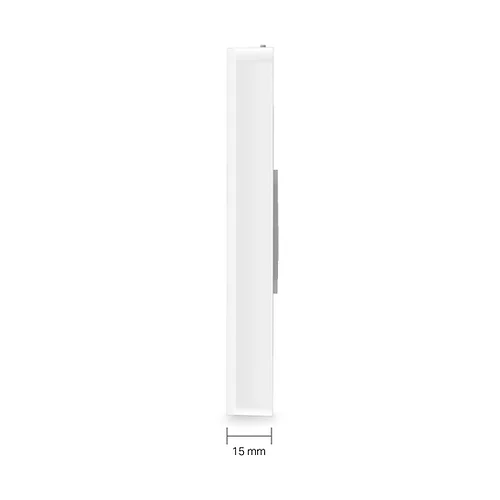

Dimensions
- 143 x 86 x 20 mm (5.6 x 3.4 x 0.8 in.)
Antenna
- 2 Dual-Band Antennas
- 2.4 GHz: 2 x 3 dBi
- 5 GHz: 2 x 4 dBi
Mounting
Wireless Features
Wireless Standards
Frequency
Signal Rate
- 5 GHz: Up to 1201 Mbps
- 2.4 GHz: Up to 574 Mbps

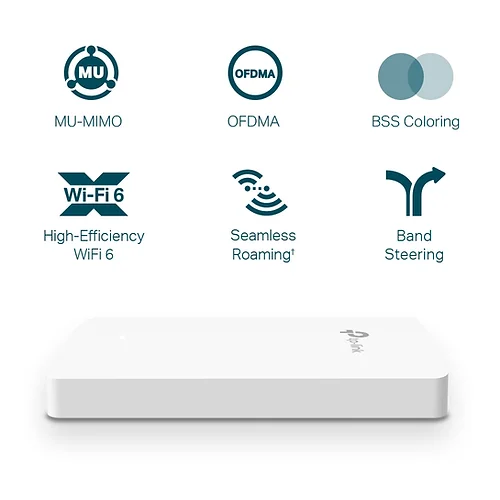

Wireless Functions
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Seamless Roaming
- Beamforming
- MU-MIMO
- Rate Limit
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
- < 20 dBm (2.4 GHz, EIRP)
- < 23 dBm (5 GHz, EIRP)
- FCC:
- < 21 dBm (2.4 GHz)
- < 21 dBm (5 GHz)
Management
Omada App
Centralised Management
- Omada Hardware Controller (OC300 - sold separately)
- Omada Hardware Controller (OC200 - sold separately)
- Omada Software Controller
Cloud Access
- Through OC300/OC200 (sold separately), or Omada Software Controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
System Logging Local/Remote Syslog
SSH
Web-based Management
L3 Management
Multi-site Management
Management VLAN
Other Specifications
Certification
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing
Package Contents
- 1 x EAP615-Wall
- 1 x Installation Guide
- 1 x Wall Mounting Kit
