Technical Specifications
Hardware Features
Interface
- 1 × Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Power Supply
Power Consumption
- 12.8 W (For PoE); 10.8 W (for DC)
Dimensions ( W x D x H )
- 243 mm × 243 mm × 64 mm (9.6 × 9.6 × 2.5 in.)
Antenna Type
- Internal Omni
- 2.4 GHz: 2 × 4 dBi
- 5 GHz: 2 × 5 dBi
Mounting

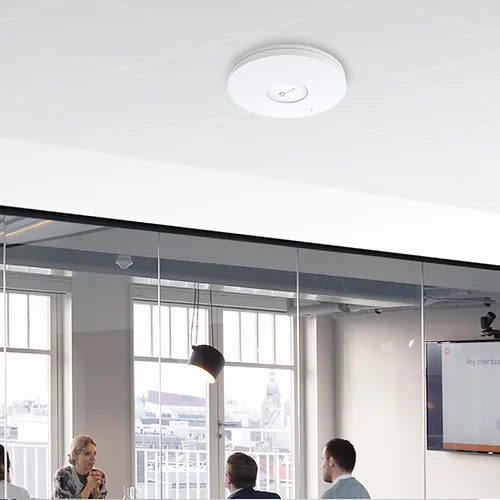

- Ceiling /Wall Mounting (Kits included)
Wireless Features
Wireless Standards
Frequency
Signal Rate
- 5 GHz: Up to 1201 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions
- 1024-QAM
- 4 × Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO

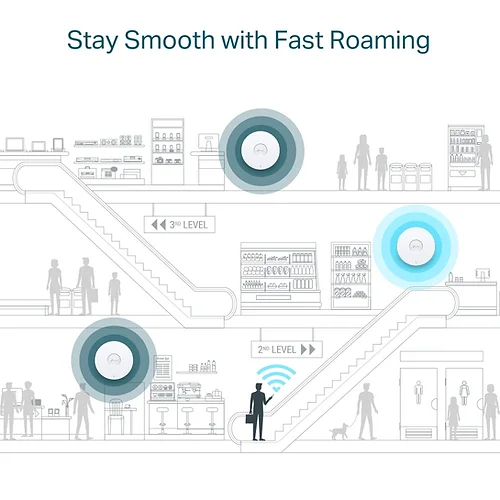

- Seamless Roaming
- Omada Mesh
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise
- WPA2-Personal/Enterprise
- WPA3-Personal/Enterprise
Transmission Power
- CE:
- <20 dBm (2.4 GHz, EIRP)
- <23 dBm (5 GHz, EIRP)
- FCC:
- <25 dBm (2.4 GHz)
- <25 dBm (5 GHz)
Management Features
Omada App

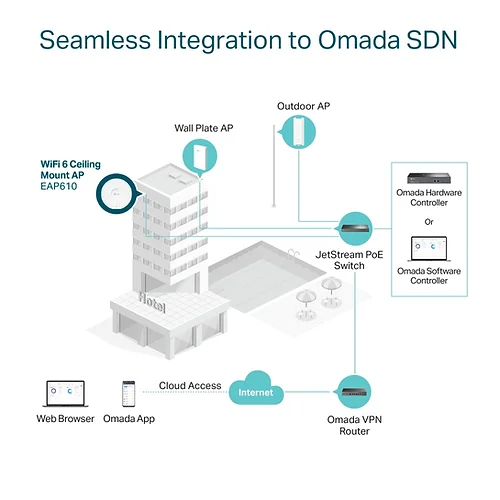

Centralised Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
Cloud Access
- Yes (through Omada Software Controller or OC300/OC200 - sold separately)
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
System Logging Local/Remote Syslog
SSH
Web-based Management
L3 Management
Multi-site Management
Management VLAN
Other Features
Certification
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing

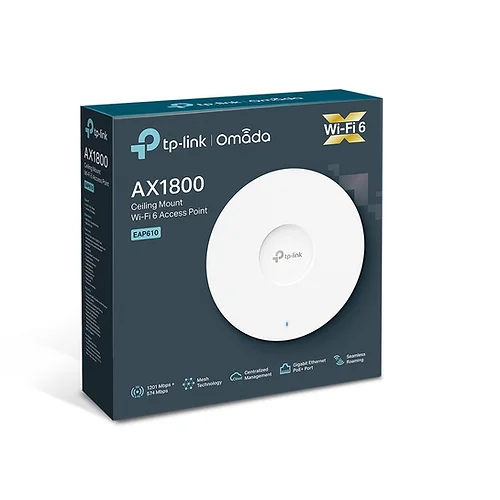

Package Contents

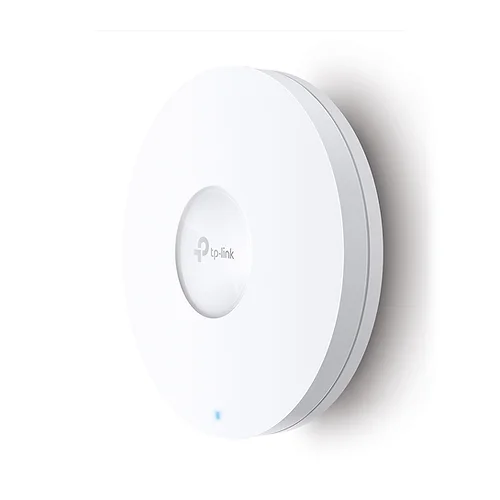

- 1 x EAP610 Access Point
- 1 x UK Power Adapter
- 1 x Ceiling/Wall Mounting Kits
- 1 x Installation Guide
