Technical Specifications
Interface

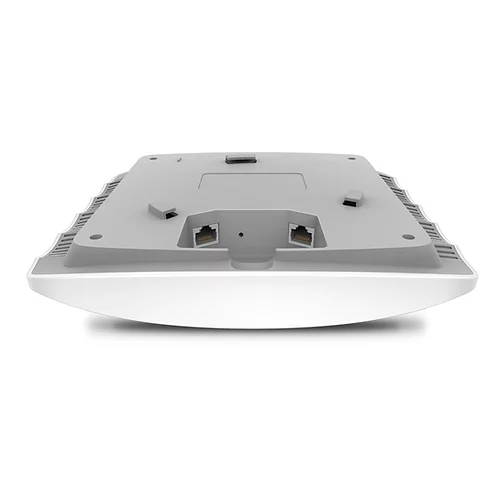

- 2 x Gigabit Ethernet (RJ45) Ports
- Note: One port supports IEEE802.3af PoE and Passive PoE
Physical Security Lock
Button
Power Supply
- 802.3af/A PoE
- 48V Passive PoE (+4,5pins; -7,8pins. PoE adapter included)
Power Consumption
Dimensions (WxDxH)
- 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type
- Internal Omni
- 2.4GHz: 3 x 3.5dBi
- 5GHz: 3 x 4dBi
Mounting
- Ceiling/Wall (kits included)
Wireless Standards
Frequency
Signal Rate
- 5GHz: Up to 1300Mbps
- 2.4GHz: Up to 450Mbps
Wireless Functions
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Seamless Roaming
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise
- WPA-PSK / WPA2-PSK
Transmission Power
- CE:
- <20dBm(2.4GHz)
- <23dBm(5GHz)
- FCC:
- <24dBm(2.4GHz)
- <24dBm(5GHz)
Omada App
Centralised Management
- Omada Software Controller
- OC200 (sold separately, see accessories tab)
Cloud Access
- Yes (through the Omada Software Controller or OC200)
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
System Logging Local/Remote Syslog
SSH
Web-based Management
L3 Management
Multi-site Management
Management VLAN
Certification
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Package Contents

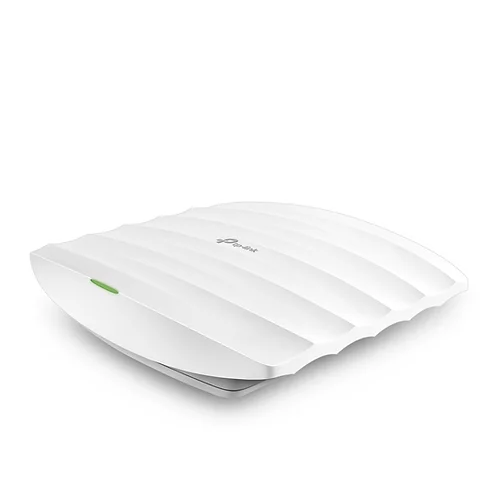

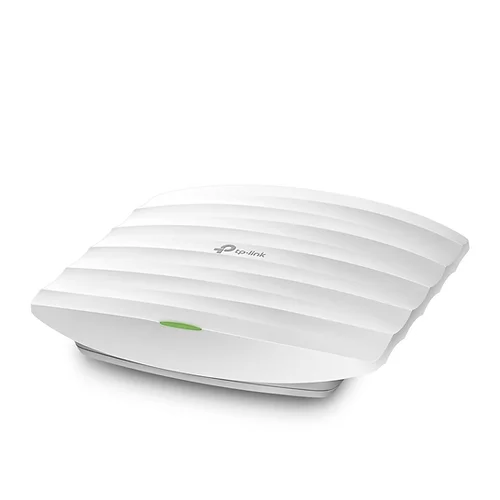

- 1 x TP-Link EAP245
- 1 x Gigabit Passive PoE Adapter
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Mounting Kits
