TP Link EAP235-WALL 1167Mbps Omada Wireless Wall Plate Access Point

Product Ref: EAP235-WALL

An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.†

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Technical Specifications

Interface

  • Uplink: 1 x 10/100/1000 Mbps Ethernet Port
  • Downlink: 3 x 10/100/1000 Mbps Ethernet Ports
    • Note: One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.

Physical Security Lock

  • Yes

Button

  • Reset

Power Supply

  • 802.3af/802.3at PoE

Power Consumption

  • 9.8 watts / 24.4 watts (PoE Out Included)

Dimensions

  • 143 x 86 x 20 mm (5.6 x 3.4 x 0.8 in.)

Antenna

  • 2 Dual-Band Antennas
    • 2.4 GHz: 2 x 4 dBi
    • 5 GHz: 2 x 4 dBi

Mounting

  • Wall Plate Mounting

Wireless Features

Wireless Standards

  • IEEE 802.11a/b/g/n/ac

Frequency

  • 2.4 GHz and 5 GHz

Signal Rate

  • 5 GHz: Up to 867 Mbps
  • 2.4 GHz: Up to 300 Mbps

Wireless Functions

  • 16 SSIDs (Up to 8 SSIDs on each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS (WMM)
  • MU-MIMO
  • Band Steering
  • Beamforming
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client

Wireless Security

  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Local LAN port based VLAN
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

Transmission Power

  • CE:
    • <20 dBm (2.4 GHz, EIRP)
    • <23 dBm (5 GHz, EIRP)
  • FCC:
    • <21 dBm (2.4 GHz)
    • <21 dBm (5 GHz)

Management

Omada App

  • Yes

Centralised Management

  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300 - sold separately)
  • Omada Hardware Controller (OC200 - sold separately, see accessories tab)
  • Omada Software Controller

Cloud Access

  • Through OC300 (sold separately), OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller

Email Alerts

  • Yes

LED ON/OFF Control

  • Yes

Management MAC Access Control

  • Yes

SNMP

  • v1,v2c

System Logging Local/Remote Syslog

  • Local/Remote Syslog

SSH

  • Yes

Web-based Management

  • HTTP/HTTPS

L3 Management

  • Yes

Multi-si

Product Features

  • Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†

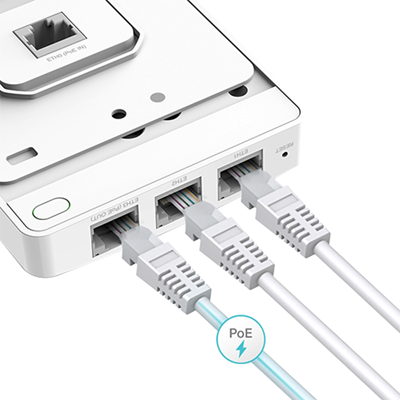

  • Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
  • Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.
