TP Link EAP225-OUTDOOR Omada 1200Mbps Wireless External Access Point
Product Ref: EAP225-OUTDOOR
MPN: 64218
- Up to 1200Mbps wireless data rate for uninterrupted wireless connection.
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation.
- Durable, weatherproof enclosure for outdoor WiFi applications.
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations.
- High transmission power and high gain antennas provide a long-range coverage area.
- Free cloud centralised management and Omada app for ultra-convenience and easy management.
- Secure guest network along with multiple authentication options (SMS/Voucher/Facebook WiFi, etc.) and abundant wireless security technologies.
Technical Specifications
Interface

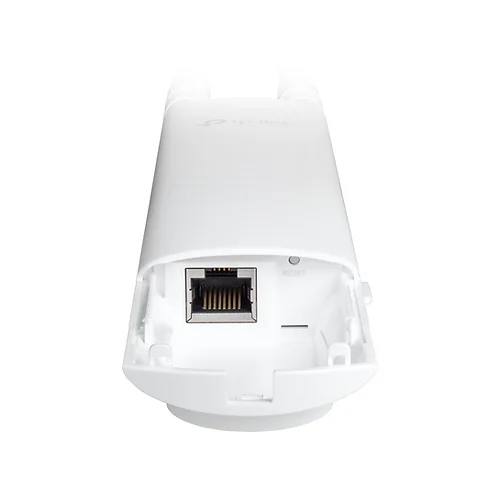

- 1 x Gigabit Ethernet (RJ45) Port (Supports 802.3af PoE and Passive PoE)
Button
- Reset
Power Supply
- 802.3af/A PoE
- 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption
- 10.5W
Dimensions ( W x D x H )
- 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna
- 2.4GHz: 2 x 3dBi
- 5GHz: 2 x 4dBi
Weatherproof Enclosure
- IP65
Mounting
- Pole/Wall Mounting (Kits included)
Hardware Watch Dog
- Yes
WIRELESS FEATURES
Wireless Standards
- IEEE 802.11a/b/g/n/ac
Frequency
- 2.4GHz
- 5GHz
Signal Rate
- 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps
- (MCS8-MCS9 VHT20/40, NSS=1 to 3)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 5.5, 11Mbps
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Airtime Fairness
- Beamforming
- Band Steering
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
Transmission Power
- CE:<20dBm(2.4GHz,EIRP),<25dBm(5GHz,EIRP)
- FCC:<23dBm(2.4GHz),<22dBm(5GHz)
MANAGEMENT
Omada Controller Software
- Yes
Email Alerts
- Yes
Management MAC Access Control
- Yes
System Logging Local/Remote Syslog
- Yes
Web-based Management
- Yes
L3 Management
- Yes
Multi-site Management
- Yes
Management VLAN
- Yes
OTHERS
Certification
- CE
- FCC
- RoHS
Environment
- Operating Temperature: -30ºC~70ºC (-22ºF ~158ºF)
- Storage Temperature: -40ºC~70ºC (-40ºF~158ºF)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing

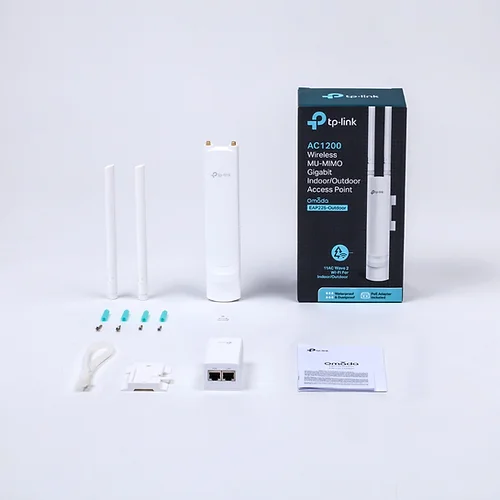

Package Contents
- 1 x EAP225-Outdoor
- 1 x Power Adapter
- 1 x Mounting Kits
- 1 x Installation Guide
