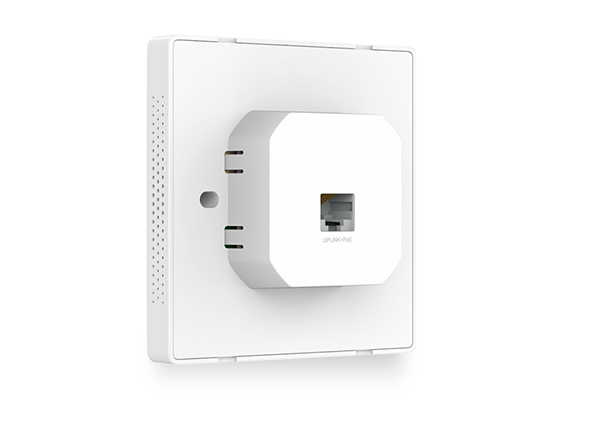

TP Link EAP115-WALL Omada 300Mbps Wireless Wall Plate Access Point
Product Ref: EAP115-WALL
MPN: 63930
- Support Power over Ethernet (802.3af) for convenient and affordable installation.
- Easy-mount construction allows installation into any standard EU-type data wall-box.
- Compact, low-profile design fits discreetly with any existing interior style.
- Free Omada Controller Software enables administrators to easily manage hundreds of EAPs.
- Enterprise class WiFi security helps to decrease network security threats.
- Captive portal provides one convenient method of authentication for WiFi guests.
- Supports management vlan for an enhanced network management.
- 300Mbps wireless data rate for uninterrupted wireless connection.
Technical Specifications
Hardware Features
Interface
- 2 x 10/100Mbps Ethernet (RJ45) Port
Button
- LED/WiFi Button/RESET
Power Supply
- PoE(IEEE 802.3af)
Power Consumption
- 2.8 W
Dimensions ( W x D x H )
- 3.4×3.4×1.2 in. (86.8*86.8*30.2 mm)
Antenna Type
- 2 x Internal 1.8dBi Omni
Mounting
- Wall Plate Mounting
Watch Dog
- Yes
Hardware Watch Dog
- Yes
Wireless Features
Wireless Standards
- IEEE 802.11n/g/b/a
Frequency
- 2.4GHz
Signal Rate
- 11n: Up to 300Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
Transmit Power
- CE: 20dBm(2.4GHz)
Wireless Functions
- Multiple SSIDs(Up to 8 SSIDs)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise,
- WPA-PSK / WPA2-PSK
Management
EAP Controller Software
- Yes
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1,v2c
System Logging Local/Remote Syslog
- Local/Remote Syslog
Telnet
- Yes
Web-based Management
- HTTP/HTTPS
L3 Management
- Yes
Multi-site Management
- Yes
Management VLAN
- Yes
Others
Certification
- CE, RoHS
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
Environment
- Operating Temperature:
- 0°C~40°C (32°F~104°F)
- Storage Temperature:
- -40°C~70°C (-40°F~158°F)
- Operating Humidity:
- 10%~90% non-condensing
- Storage Humidity:
- 5%~90% non-condensing
Package Contents
- 1 x TP-Link EAP115-Wall
- 1 x Installation Guide
- 1 x Mounting Screw
